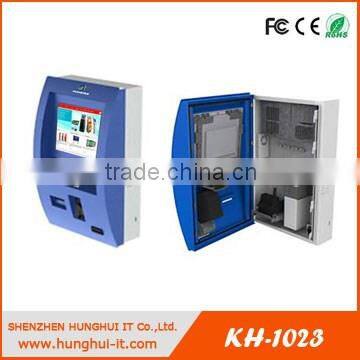

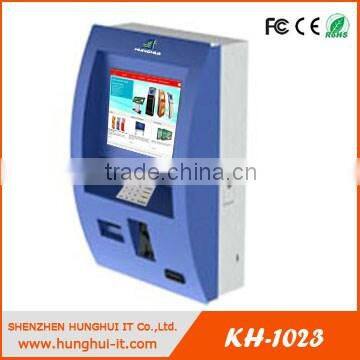

automated payment machine/bill payment machine/vending machine payment system
Main Features of Hunghui Touch screen kiosk :
- Different size screen industrial display
- 1.5mm robust cold rolled steel kiosk cabinet
- Easy service access through the front or back
- Ideal for payment applications (Cash/Non-Cash)
Space for all functions with bill acceptor, printer, card reader, barcode scanner
Shenzhen Hunghui is an professional kiosk manufacturer. Product range information kiosk, interactive terminal, payment kiosk, advertising digital signage, ATM & VTM. You can choose floor stand kiosk or wall mount kiosk, Single screen kiosk or Dual screen kiosk.
OEM/ODM is acceptable. Just tell us your needs, you will get what you want!
| Item | Specificaton Details | |
| PC System (Customizable) | Motherboard/ systemboard |
Gigabyte H61 |
| CPU | Intel G2030/3.0Ghz,I3,I5, I7 | |
| RAM | 2GB/4GB/8GB | |
| HDD | 320G/500G | |
| Power Supply | Hunt Key/Great Wall | |
| Interface | RS-232 Ports; LTP; USB Ports, 10/100/1000M | |
| Touch Screen | Screen Size | 10" 15'' 17'' 19'' 21.5'' 22''....etc |
| Screen Type | Saw,IR,Capactive
|
|
| Resolution | 4096x4096 | |
| Feature | High Transparence, Precision and Durability | |
| Material | Heat tempered glass with thickness 6mm | |
| High transmission | Around 95% | |
| Orientation Precision | <2mm | |
| Hitting life expectancy |
More than 50,000,000 times | |
| Surface hardness | Moh's 7 rating of 7 | |
| Protection | Dustproof,anti-rust,explosive proof | |
| Monitor | Screen Size | 10" 15'' 17'' 19'' 21.5'' 22''....etc |
| LCD | TFT Display, Samsung/LG brand | |
| Hitting life expectancy | Above 5000 hours | |
| Brightness | 550cd/m2 | |
| Contrast | 1200:1 | |
| Resolution | 1920*1080 FULL HD | |
| View Angel | 178/VH | |
| Kiosk Cabinet | Material | Cold-rolled Steel ST12 SPCC with1.5mm thickness |
| Coating | Car painting technology | |
| Feature | Easy service access through front and back | |
| Color | Customizable | |
| Parts | *Independent power supply *Multimedia speakers *Internal ventilation system | |
| Card Reader | Card Type | Magcard, IC Card, RF Card, Mifare Card, UL Card |
| Interface | RS232/USB | |
| Card Entry Method | Signal of Magnetic, Optoelectronic and rear card | |
| Encrypted Pin Pad | Key Life Span | 2,000,000 cycles |
| Key Force | 2-3N | |
| Key Trip | >2.5mm | |
| Protection Level | IP65 | |
| Bill Acceptor | Brand | Cash Code/ MEI/ ITL/ICT |
| Validation Rate | High than 96% | |
| Capacity | 600notes~1500notes | |
| Thermal Printer | Brand | Epson/Custom/Citizen |
| Auto-cutter | Included |
|
| Width of Paper | 50mm/76mm/80mm/112mm | |
| Printing Speed | 150mm/s | |
| Buffer of Data | 4Kb | |
| Interface | RS232/USB | |
| Operation System | Windows 2000/ Windows XP/ Windows 7/ Windows 8/ Linux | |
| Power Supply | AC Input Voltage | 100~240V/AC |
| Frequency | 50Hz to 60Hz | |
| Package | Safe packing with bubble foam, in wooden case with screws | |
| Other Peripheral | A4 Printer, Coin acceptor, UPS, Wi-Fi, Web-camera, LAN port, USB port,GPRS and etc | |
Packaging Details: bubble foam, carton case and security wooden crates
Delivery Details: 7-15 days for standard cabinet
Certificate
1.Samples are provided according customers' demand.
2.Provide customized design and OEM is offered.
3.Provide question with any technical problems of our product.
1) Is sample order accepted?
Yes, sample order is accepted. You can place a trial order to evaluate the product quality and fabrication skill first.
2)What about your After-Sale Service
1.Supply OEM&ODM order,independent QC department,more times testing and checking well
2.100% QC pass checking and testing before shipping.
3.13 months of warranty.
4.CE,RoHs,FCC.
3) What is your advantage?
1.We can provide software and design for you.
2.We can open customers own mold for you.
3.We can offer high quality product & reasionable price for you.
4.We can offer a good after-sale service for you.
5.We have strong and powerful design team.
6.We have quick delivery and small order also welcome.
