Coaxial Cable Stripping Machine ; High Quality Semi-automatic Coaxial Wire Stripping and Cutting Machine X-504TZ

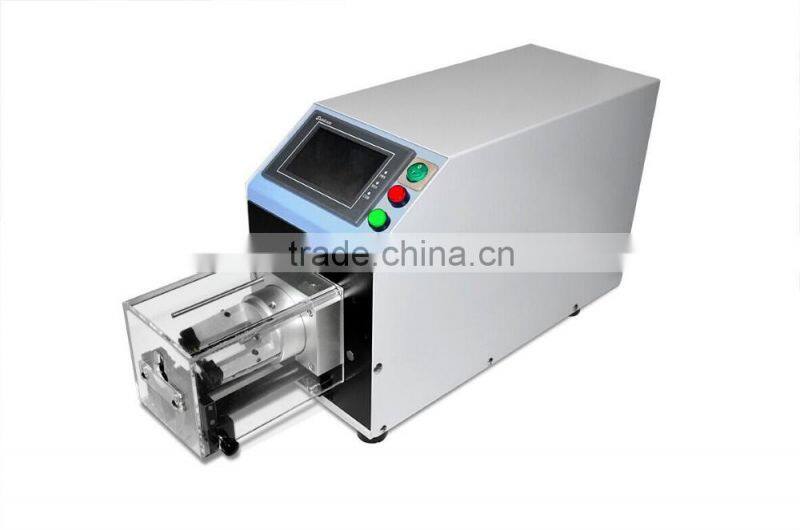

Coaxial Cable Stripping Machine ; High Quality Semi-automatic Coaxial Wire Stripping and Cutting Machine X-504TZ photo-1

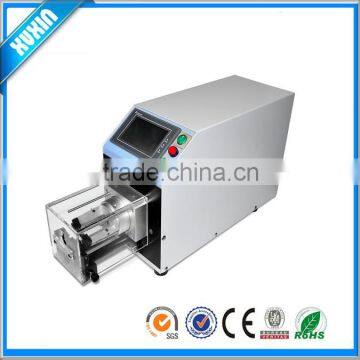

Coaxial Cable Stripping Machine ; High Quality Semi-automatic Coaxial Wire Stripping and Cutting Machine X-504TZ photo-2
Coaxial Cable Stripping Machine ; High Quality Semi-automatic Coaxial Wire Stripping and Cutting Machine X-504TZ photo-3
US$ 2,600 - 3,400 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XUXIN
Model Number:
X-504TZ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name XUXIN
Model Number X-504TZ
Usage Stripping

Coaxial cable stripping machine ;  High Quality Semi-automatic coaxial wire stripping and cutting machine X-504TZ





Apply for:

Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and other various products of wire processing.

Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.



 Specification:

Name

X-504TZ  Coaxial Stripping & cutting Machine

Cable Type

coaxial-cable,tri-axial cable,shield wire,rigid cable

Max. Cable Diameter

0.2-up to 6.99mm

Cutting depth of the unit

0.01mm

Max. stripping length

48mm

Max. stripping stratums

9

Drive mode

Motor/ Ball screw drive(Japan)

Display

Touch curtain

Blade

2 pieces   Material:imported tungsten steel(Switzerland)

Centering slab

2 pieces    Material:imported tungsten steel

Trapper

Automatic self aligning,motor drive, the clamping process control

Productivity

500-700pcs/h(depend on the cable length and type)

Opening way

Manual operation/Pedal

Power

220V/50Hz   380W

Weight

19Kg

Boundary dimension

525x186x278mm

Work environment

0-45°C,moderate dry,non-shake



  Coaxial cable stripping machine ; High Quality Semi-automatic coaxial wire stripping and cutting machine X-504TZ

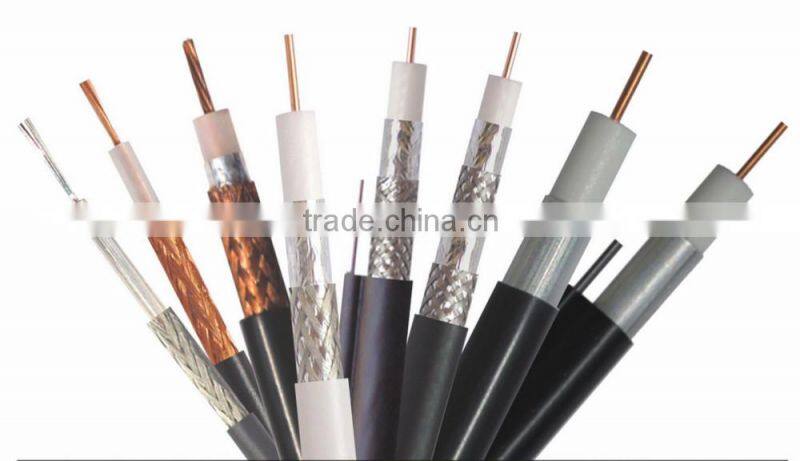

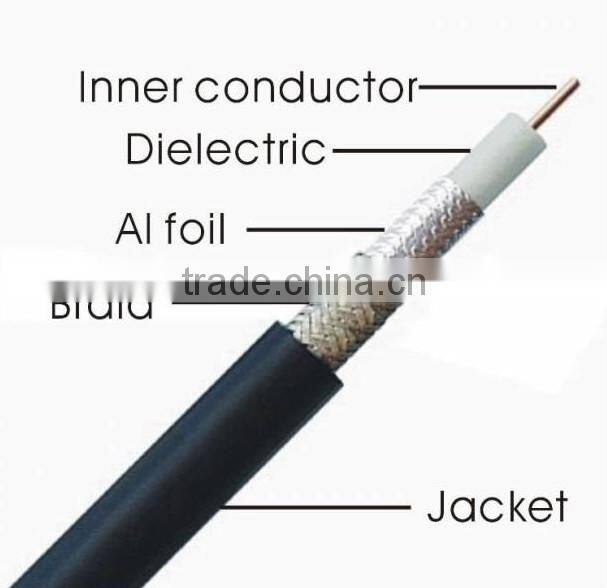

After machine strip :

Coaxial cable stripping machine ; High Quality Semi-automatic coaxial wire stripping and cutting machine X-504TZCoaxial cable stripping machine ; High Quality Semi-automatic coaxial wire stripping and cutting machine X-504TZCoaxial cable stripping machine ; High Quality Semi-automatic coaxial wire stripping and cutting machine X-504TZ

Features:
It adopts the most advanced carbide tuming and accordingly improve the accuracy and speed.It is main used for the process of coaxial-cable and special single line.
It adopts the axis positioning device and carbide tuming and can peel at most 9 stratums without changing the blade.Alao,it can equip with Set Controller and display the cutting diameter.



 Coaxial cable stripping machine ; High Quality Semi-automatic coaxial wire stripping and cutting machine X-504TZCoaxial cable stripping machine ; High Quality Semi-automatic coaxial wire stripping and cutting machine X-504TZ

Work video link:
