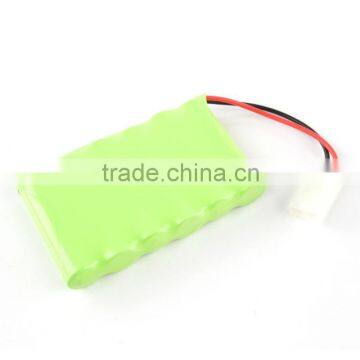

Help CenterRechargeable 7.2v 4000mah Ni-mh Battery Pack
Related Products
-
Nicd Sub c 1.2v BatteryUS$ 0.41 - 0.42MOQ: 500 Pieces -
NiMH Rechargeable Battery 9v 2500mahUS$ 5.9 - 6MOQ: 200 Pieces
-
1.2v Ni-cd Rechargeable Battery for Solar LightsUS$ 0.19 - 0.2MOQ: 500 Pieces
-
aa High Capacity Rechargable BatteriesUS$ 1 - 1.1MOQ: 500 Pieces
-
650mah Ni-mh Battery 7.2vUS$ 0.25 - 0.26MOQ: 1000 Pieces
Specification
Battery Type : NI-MH D
Model : EA-D4000
Nominal Voltage : 1.2V
Nominal Capacity : 4000mAh
Size : 32.53*60mm
Weight : 106g
Standard Charge : 200mA / 7.5hr
Rapid Discharge : 2000mAh / 72hr
Discharge cut-off Voltage : 1v
Max Discharge Current : 2000mAh(1C)
Storage Temperature :0°c~50°c
Feature
Being environment-friendly : Cd 0%,Hg 0%,Pb 0%
Excellent High Rate Performance : quick charge in 1-3hours,high rate discharge of 10C
Reliable safety vent : it is 100% tested that the safety vent opens automatically when the
internal pressure of the cell is more than 25atm
Wide temperature range : Prformance remains efficient over a wide temperature rage from
-20°c to +60°c
Handing Performance : maintenance-free and can be aplplied potinally
No memory affects : Ni-cd battery can be recharged after partial discharge
Advantage of ni-cd battery
Battery passed safety test,No leakage test,short circuit test,overcharge test.
overdischarge test,vibration resistance test,impact Resistance test
Test |
Specification |
Conditions |
Remarks |
Leakage |
No leakage nor deformation. |
Fully charged at 2000mA(0.3C), Stand for 14 days |
Unit cell |
External Short Circuit |
No fire and no explosion. |
After standard charge, short circuit the cell(s) at 20+/-5°Cuntil the cell(s) temperature returns to ambient temperature (The resistance of the inter-connecting circuitry shall not exceed 0.1ohm). |
Unit cell |
Vibration Resistance |
Charge of voltage Should be under 0.02V/cell, Change of impedance should be under 5 milli-ohm/cell. |
Charge the battery 0.1C 16hrs, then leave for 24hrs, check battery before/after vibration, Amplitude:1.5mm Vibration:3000CPM Any direction for 60mins. |
Unit cell |
Impact Resistancme |
Change of voltage should be under 0.02V/cell, Change of impedance should be under 5 milli-ohm/cell. |
Charge the battery 0.1C16hrs, then leave for 24hrs, check battery before/after dropped, Height:50cm Wooden board (thickness 30mm) Direction not specified 3times. |
Unit cell |
Advantage of ni-cd Battery
* Rechargeable battery
* Long Cycle Service Life
* Rapid Charge And High-Rate Discharge
* Wide Temperature Range
* High Capacity&Low internal Resistance
* Built-in Safety Protection Mechanism
* No memory Effect
* Mainrenance-free
CAUTION
1 Reverse charging is not acceptable.
2 Charge before use. The cells / batteries are delivered in an uncharged state
3 Do not charge / discharge with more than the specified current.
4 Do not short circuit the cell / battery. Permanent damage to the cell / battery may result.
5 Do not incinerate or mutilate the cell /battery.
6 Do not solder directly to the cell /battery.
7 The life expectancy may be reduced if the cell / battery is subjected to adverse conditions like:
extreme temperature , deep cycling , excessive overcharge / overdischarge.
8 Store the cell / battery uncharged in a cool dry place. Always discharge batteries before bulk
storage or shipment.
9 For storage of cells/ batteries over one year, in order to prevent the degrading of the function
of cells, cells / batteries should be at least charged and discharged once trimester.
Keep away from children. If swallowed, contact a physician at once.
10 Air ventilation should be provided in the plastic case of batteries,
otherwise it may have a risk of accumulating gas (oxygen gas, hydrogen gas)
generated inside the cell resulting in explosion triggered by fire sources (motors or switches).
Airtight battery compartments are strongly discouraged.
11 The batteries comply with Restrictions on Hazardous Substances (RoHS) Direction.

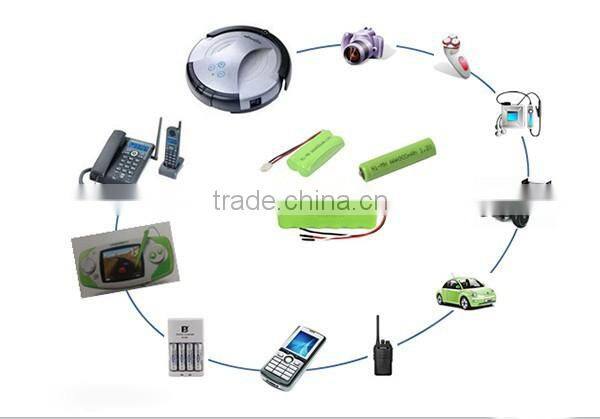

Application of ni-cd battery
NI-mh Battery Use for Digital Cameras,lightss,touches,Corless Phone,
Communications,toys,Protable Videos,etc
A professional battery manufacturer
Shenzhen Eastar Battery Co., Ltd was set up as a manufacturer of various batteries in 1997. Our main products include dry batteries ( carbon & alkaline), lead-acid batteries(General batteries, Auto batteries), Ni-MH/Ni-CD batteries and packs, Lithium batteries ( Li-ion, Li-PO). With six manufacturing facilities of around 200,000 square meters, and a team of highly qualified staff, Eastar grew up as a professional battery group in Southern China.
Quality is our life
As a battery manufacturing group, we have separate factory located in Guangzhou, Shenzhen and Xingfeng for different battery types. We understand well on the importance of the quality, so we invested much on the advanced production facilities and testing equipments. We have a powerful R&D and skillful worker group. Based on ISO9001, we built up a complete quality control system. We always keep ourselves working ahead on technology and quality control in battery field.
The best services to you
We built up our sales team with 20 saleswomen/ salesmen in down town Shenzhen. Our team is a experienced sales team, Our motto is: EVERY TIME THE BEST SERVICES TO EVERY CUSTOMER. We are good at both ODM orders and OEM projects. If you are in battery business, come to us, I believe you will find that you are working with the right partner: Shenzhen Eastar Battery Co., Ltd.
