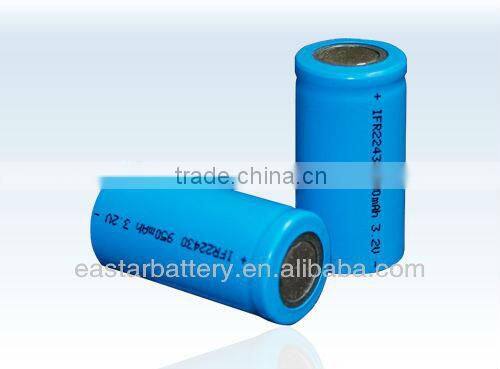

IFR 22430 rechargeable lifepo4 battery 3.2v 1200mah
LiFePO4 battery is the top energy choice for Hev,EV, UPS. power tools and electric power storage system, as it is safe, environment-friendly and powerful with long cycle life and no memory effect.
| Type | Voltage(v) | Capacity(mAh) | Diameter(mm) | Height(mm) | Weight(g) |
| IFR10150 | 3.2 | 40 | 10.3 | 15.5 | 3 |
| IFR14500 | 3.2 | 600 | 14.2 | 50.2 | 18 |
| IFR18500 | 3.2 | 1000 | 18.5 | 50.2 | 32 |
| IFR18650 | 3.2 | 1400 | 18.5 | 65.3 | 42 |
| IFR22430 | 3.2 | 1200 | 22.5 | 43.3 | 47 |
| IFR22650 | 3.2 | 2000 | 22.5 | 35.3 | 63 |
| IFR26430 | 3.2 | 2000 | 26.5 | 43.3 | 56 |
| IFR32600 | 3.2 | 3600 | 32.5 | 60.5 | 129 |
| IFR32650 | 3.2 | 4000 | 32.5 | 65.3 | 156 |
| IFR32900 | 3.2 | 5500 | 32.5 | 90.5 | 192 |
| IFR38120 | 3.2 | 10000 | 38.5 | 120.5 | 320 |
| IFR42110 | 3.2 | 11000 | 42.5 | 110.5 | 360 |
| IFR42120 | 3.2 | 12000 | 42.5 | 120.5 | 380 |
1. Light Weight
2. Hight Capacity
3. Excellent Discharge Performance
4. Long-life cycles
5. Low Internal Resistance
6. No Memory Effect
(1) Safe: The safest Li-ion battery so far, accredited with CE and UL.
(2) Environment-friendly: Accredited with RoHS, without any hazardous and noxious substances.
(3) Powerful: Able to discharge with 20C at 65°c max.
(4) Long cycle life: Over 2000 cycles with capacity staying at 80% min.
(5) No memory effect: Always ready for charge and use, with no need to charge aftr a full discharge.
(6)Wide temperature range: Avaliable for use when the temperature ranges form -20°c~70°c.
Do not reverse the positive and negative terminals
Do not use or leave the battery at very high temperature conditions.
Do not use lithium ion battery and others different lithium polymer battery moderl in mixture.
If the battery leaks, and the electrilyte get into the eyes. Do not wipe eyes, intead, rinse the eyes with clean running water, and immediately seek medical attention.
(1) Never disassemble the cells
The disassemble may generate internal short circuit in the cell, which may cause gassing, firing, explosion, or other problems.
(2) Electrolytr is harmful
Li-Fe battery should not have liquid from electrolyte following, but in the case the electrolyte come into cntace with the skin or eyes, physicians shall slush the electrolyte with fresh water and medical advices is to be sought.
(3) Prohibition of dumping of cells into fire
Never incinerate nor dispose the cells in fire. These may cause explosion of the cells, which is very dangerous and is prohibition.
(4) Storing the batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity. we recommand that batteries be charged about once per half a year to orevent over discharge.
