Adjustable Swirl Diffuser
US$ 14.87 - 89.26
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Ampelair
Model Number:
AXK
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
Ampelair
Model Number
AXK
Type
HVAC Systems
Specifications
Swirl DiffuserRim: aluminum
Blades & neck: steel
Finish: matte RAL9010
Blades adjustable
1.Features:
(1) Eight specifications available: 200,250,315, 350,400,500, 630, 800.
(1) Eight specifications available: 200,250,315, 350,400,500, 630, 800.
(2) Uniform air diffusing and adjustable air patterns.
(3) Easy installment, can also be connected or hanged by hooks.
(4) In addition to standard color of white other colors are also available.
(5) Widely used in the floor with height of over 3.8m.
(6) Blade is designed on the principle of fluid dynamics to provide the swirling airflow with speed, so that the air convection is increased due to long air supply throw and big coverage of jet.

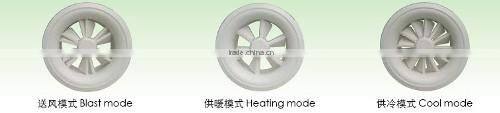

(7) The angle of the blade can be adjusted in accordance with the working conditions to provide rotating air in horizontal, vertical and diagonal directions.
(8) Adjustable blades in our products can be adjusted by automatic temperature control, manual, electrical control.
(9) Automatic temperature controller consists of temperature sensing units and springs can turn the rotational blades automatically accordingly to the temperature change of supply air, its key part is the temperature sensing
unit, with a special liquid inside that can change its size accordingly to the temperature change, the size of liquid change can induce the turning of blades.
unit, with a special liquid inside that can change its size accordingly to the temperature change, the size of liquid change can induce the turning of blades.
(10) No cable, maintenance, nor operation is needed.
(11) In summer: when supply air temperature ≤ 17,the spring moves out with the shrinkage of temperature sensitive device, and the thrust of the supply air will push the blades to the summer condition.
(12) In winter: when supply air temperature ≥ 27,the spring shrinks with the full movement of temperature sensitive device, and that will push the blades to winter condition.
(13) For fresh air: when supply air temperature is about 22,the spring starts to shrink with the small movement of temperature sensitive device, and with the thrust of the supply air will push the blades to the summer condition.

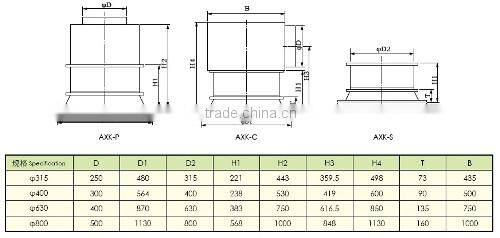

2.Product's size and charactristic:

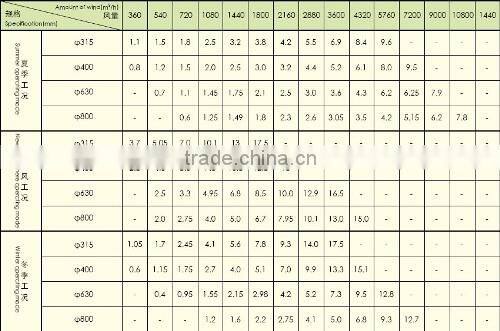

3.Product's main technical table:
4.Why choose us?
(1.) Your inquiry will be replied with 24 hours.
(2). We only support good quality products to Customers.
(3). Samples are available by Express 3-5 days.
(4). We can offer EXW,FOB,CIF price as Customers request.
