Help CenterGlassfiber Duct Connector
Related Products
Specifications
Flexible Duct ConnectorMaterial: 0.4mm Galvanized Steel & Heat Retardant Fiberglass;
Fabric Coating: Silicone;
Length: 25m

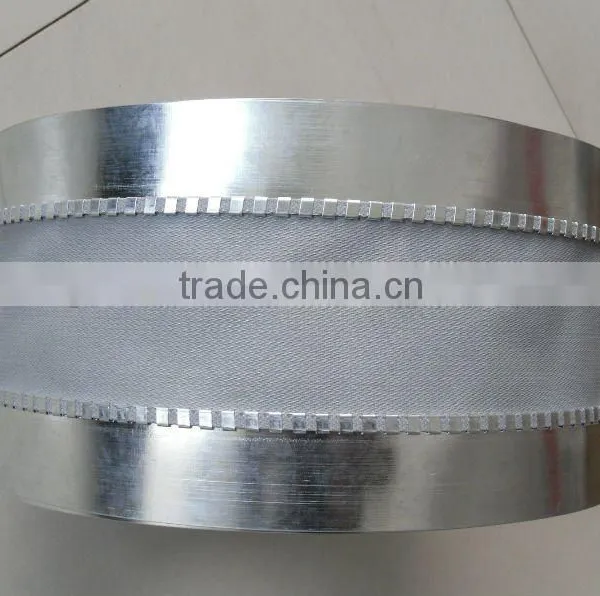

Flexible Duct Connector
In order to isolate vibrations caused by air handling units, fans or other equipment connected to air ducts, it is highly recommended to install a flexible duct connector joint between the outlet of these devices and the air duct.
Ampelair Flexible Duct Connectors are perfect for this job,
Features:
1. Quick and economical
2. Strong air tight lock seams
3. Unmatched durability and strength
4. Available in various widths of metal and fabric
5. Fire rated and high temp resistant fabric is available for special applications
6. Standard roll length is available in 25meters and 50meters
Application:
1. Isolation of sound and vibration from the source, double lock seam jointed duct flexible connector fabric is used which is fixed to galvanized steel sheet metal on either side.
2. One end of the galvanized steel sheet metal is anchored with the equipment and the other end is anchored with the duct work.
3. It is recommended that larger fabric widths be used for better results in vibration isolation thereby preventing metal to metal contact
Common Sizes:
Metal width* fabric width* metal width
35mm*60mm*35mm
45mm*60mm*45mm
45mm*70mm*45mm
45mm*75mm*45mm
70mm*100mm*70mm
Technical parameters:
Base Fabric: Glassfiber
