General Brushless DC Motor

General Brushless DC Motor thumbnail-1
General Brushless DC Motor photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GRAND
Model Number:
BL3635
Contact Supplier Request Quote Chat Now
Grand Precision Industrial Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GRAND
Model Number BL3635
Construction Series Wound
Commutation Brushless
Usage Other, Industrial
Protect Feature Other, Enclosed

Specifications

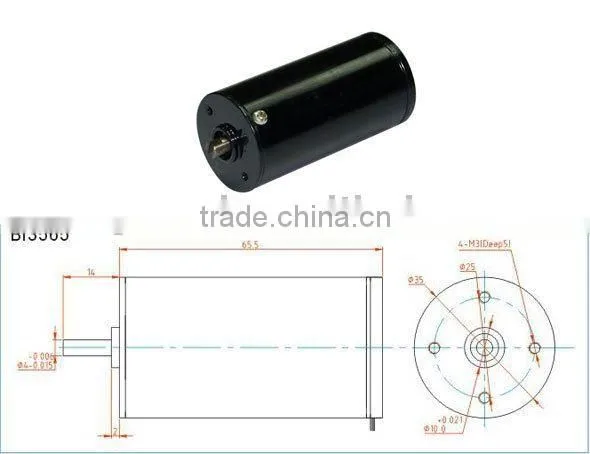

General brushless DC motor

Series No:BL3635
NO. Testing Item Tested Values Unit
1 Nominal voltage U N 12 12 18 18 24 V
2 Terminal resistance, phase to phase R 1.8 1 2.9 1.8 2.5 Ω
3 Output power P2max 19.05 34.75 26.16 43.04 55.7 W
4 Efficiency ηmax 71 75 67 73 76 %
5 No-load speed no 4250 6500 4670 6815 6500 rpm
6 No-load current I 0.16 0.21 0.2 0.22 0.16 A
7 Stall torque MH 171.23 204.21 213.97 241.24 327.3 mN.m
8 Friction torque MF 4.21 3.64 7.12 5.43 5.55 mN.m
9 Speed constant kn 362.88 551.31 268.08 387.13 275.42 rpm/V
10 Back-EMF constant kE 2.76 1.81 3.73 2.58 3.63 mV/rpm
11 Torque constant kM 26.32 17.32 35.62 24.67 34.67 mN.m/A
12 Current constant kI 0.04 0.06 0.03 0.04 0.03 A/mN.m
13 Slope of n-M curve n/M 24.82 31.83 21.83 28.25 19.86 rpm/mN.m
14 Mechanical time constant τm 9.26 11.88 8.15 10.54 7.41 ms
15 Rotor inertia J 35.64 35.64 35.64 35.64 35.64 gcm2
16 Angular acceleration αmax 48.04 57.3 60.04 67.69 91.83 103rad/s2
17 Sensor Sensorless
18 Driver DR3080
19 Weight 300 g
20 Operating temperature range -30+85
21 Commutation Electronically commutation
22 Ball Bearing EZO&NMB
23 Housing material ηopt Aluminum, black anodized
24 Magnet material nopt Sintered Nd-Fe-B
25 Direction of rotation Mopt Electronically reversible
The Operating Data For η max of Customer's Specifications
26 Output Power P2opt 8.74 14.22 13.28 19.15 22.37 W
27 Efficiency ηopt 71 75 67 73 76 %
28 Speed nopt 3111 4984 3250 5057 5016 rpm
29 Load Current Iopt 1.02 1.57 1.1 1.47 1.23 A
30 Operating Torque Mopt 26.85 27.25 39.04 36.18 42.61 mN.m
(1) The I0 is pure current of motor in this data sheet that means it not included the drivers current.
(2) This type of motor can be assemble for planetary Gearbox which type of IG22 and made from Shayang Ye Co., Taiwan, and please to see Gearboxs sheet attached if you have need it.
