Specifications
Heat Exchange Extruded Type Finned Tube1.fin pitch:2.3-5.0mm
2.fin thick:0.4-3.0mm
3.length:as request
4.MOQ:500 meters

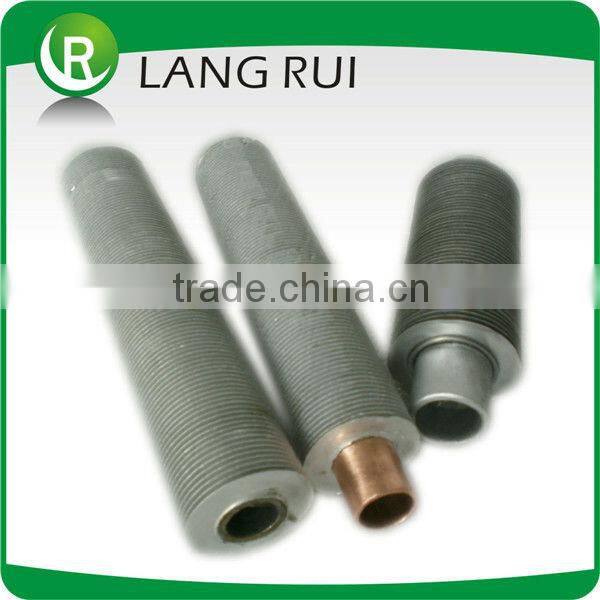

Heat Exchange Extruded Type Finned Tube
These types of fins are semi-crimped and wrapped under tension around
the outside of the base tube. Fins are either tack welded or brazed to
the base tube at each end of the tube. These finned tubes can be further
Hot Dipped Galvanised for surface protection where as the deposition of
Zinc also adds up to the efficiency of finned tubes.
Maximum Operating Temperature-250°C
Base Tube Diameter : 5/8 to 3 (15.8 mm to 76.2 mm)
Tube Material : Carbon Steel, Stainless Steel, Copper, Cupro-Nickel
Fin Material : Carbon Steel, Stainless Steel, Copper, Aluminium, Brass
Fin Height : ¼ to ¾ 6.4 mm to 20 mm.
Fin Pitch : 3fins/inch to 11 fins/ inch 118 fins/meter to 433 fins/meter.
Application
Commercial application for air heating or air cooling up to 130°C to 150°C
using steam / Thermic fluid / Hot water as heating media or water as
cooling media.
MORE ENERGY-EFFICIENT AND ENVIRONMENTAL!
WE ARE TRUST WORTHY! WAITING FOR YOUR EARLY REPLY!
Real product show:
The machine is working
Used for heat exchanger:
