Type H Welded Finned Tube

Type H Welded Finned Tube thumbnail-1
Type H Welded Finned Tube photo-1
US$ 5 - 20 MOQ: 600 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Langrui
Model Number:
LR-FT-256
Contact Supplier Request Quote Chat Now
Hebei Langrui Environmental Engineering Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Langrui
Model Number LR-FT-256
Type Fin Tube
Application Heater Parts
Certification Other, SGS

Specifications

Type H Welded Finned Tube
(1) Excellent anti-wear performance
(2) Less fouling
(3) Compact space
(4) Welded Joints less

  Type H Welded Finned Tube

Name:

H fin tube, also know as Doulbe H fin tube, H fin economizer, H fin tube economizer,

H type finned tube, square fin tube.

It is a kind of boiler parts, to have two steel circular symmetry to be welded on

fluorescent tubes to form fins positive shap much like letter "H", so called H-fin

tube. H-economizer widely used in utility boilers, industrial boilers, marine power,

such as the tail of heat exchanger components.



Principle:

H-economizer two rectangular fin, similar to a square, its edge length for the

fluorescent tubes of 2-fold, an expansion of the heating surface.

H-economizer flash resistance welding processes used, the welding seam after the

high rate of fusion, weld tensile strength, and has good thermal conductivity.

H-economizer can also manufacture dual tube "double H" type fin tubes, its rigid structure,

and can be applied to a longer tube row occasions.



Performance characteristics:

(1) Excellent anti-wear performance

(2) Less fouling

(3) Compact space

(4) Welded Joints less

(5) Stability



Supplying Scope:

Fin tube Specification:Chinese GB standard or equivalent ASME standard or others;

Material: carbon steel, stainless steel, Aluminium and alloy steel;

Bare tube size:OD20mm-OD273mm;

Fins Pitch: 3mm-30mm;

Fins Height: 10mm-30mm;

Fin thickness:1-10mm;



Other sizes of the finned tube can be discused with customers' requirements. Welcome

to contact us.



     Supplied H Type Fin Tube Specification


Item

Symbol

Unit

Parameter Value

Bare Tube OD

Φ

mm

32-51

Bare Tube Thickness

s

mm

2.5-6

Bare Tube Length

L

mm

≤11500

Fin Length

Lf

mm

≤10500

Fin Height

Hf

mm

60-140

Fin Width

β

mm

60-140

Fin Thickness

Sf

mm

2.0-4.0

Fin Pitch

T

mm

12.5-30

H Fin Space

b

mm

5-12



Special Material

Tube

20G SA210C

Φ32-Φ51

Fin

Q235

Δ2-3

Tile Type Anti-abrasion Hood

1Cr6SiMo

Δ3

Comb Type Anti-abrasion Plate

1Cr18Ni9Ti

Δ2

Hanging Plate

12cR1MoV

Δ=16

Baffle

12Cr1MoV

Δ=8



Other sizes of the finned tube can be discused with customers' requirements.

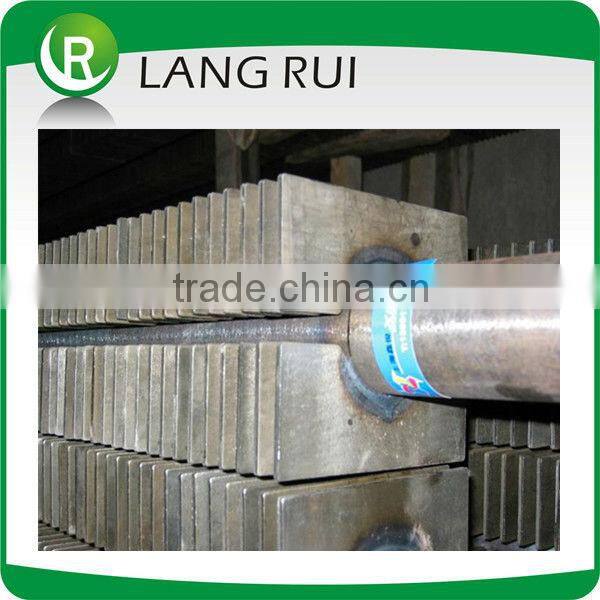

     Real product photo show


Type H Welded Finned Tube



     Products on the production line


Type H Welded Finned Tube

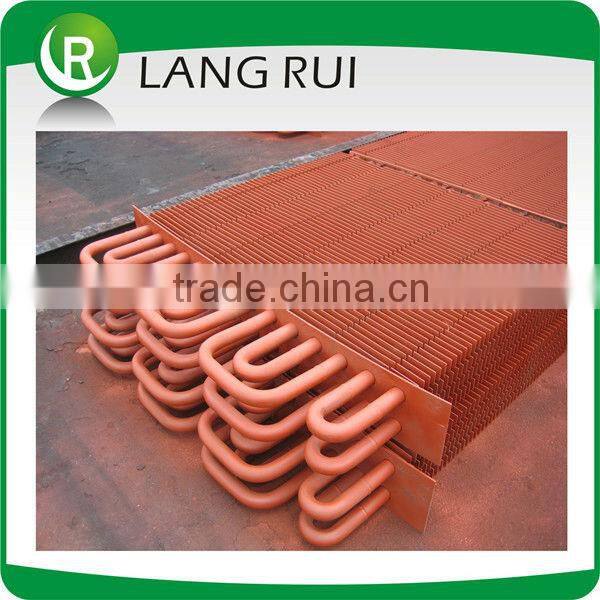

     applied for economizer


Type H Welded Finned Tube
