Specifications
High-frequency welding heating exchange finned tube1.fin pitch:5-30mm
2.fin thick:0.7-3.0mm
3.length:as request
High-frequency welded heat exchanger fin tube
Hf welded spiral finned tube is the most widely used of thespiral
finnedtube, widely used in electric power, metallurgy,cement industry preheating collection and petrochemical industries. High-frequency
spiral finned tube is welded steel strip coil pipe at the same time,
using high-frequency currents of the skin effect and proximity effect
of steel tube, and surface heat until melted in the plastic state or steel
strip coil, the complete welding under certain pressure. This kind of
high frequency welding as a solidphase welding. It with Mosaic, brazing
(or whole galvanized) method, whether in product quality (fin of weld
rate is high, of 95%),or the productivity and automation degree, are
more advanced.
Product Detail:
|
Tube Detail |
Material |
Carbon Steel(20#,3087,Q235),Alloy Steel,Stainless Steel(304,316L) |
OD |
25-165mm |
|
THK |
2-8mm |
|
Long |
0-12m or as request |
|
|
Fin Detail |
Material |
Q195, SPCC, SPHE, 304, 316L |
High |
5-30mm, less than the radius of the base tube |
|
Pitch |
4-30mm, more than 5mm is better |
|
Thk |
0.7-3.0mm |

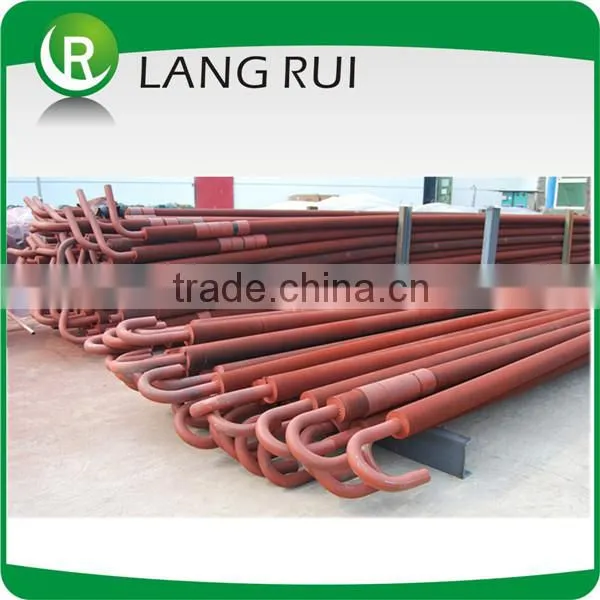

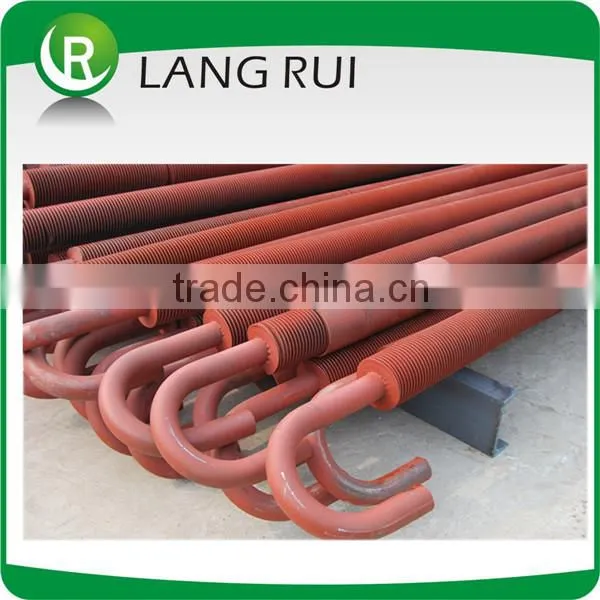

Real product show

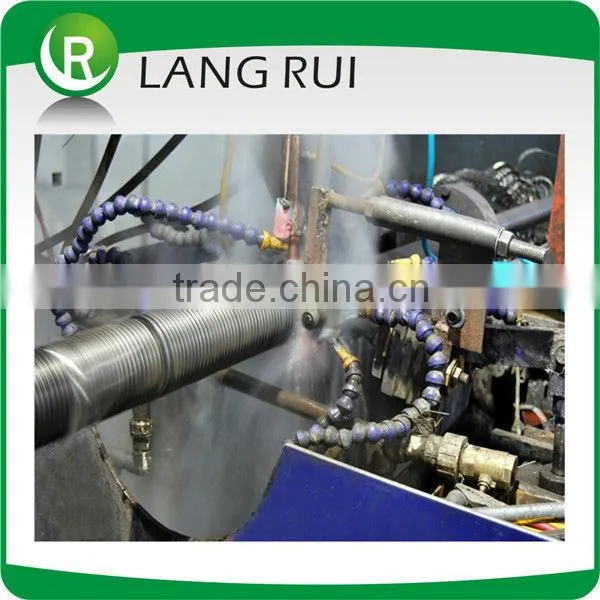

The machine is working

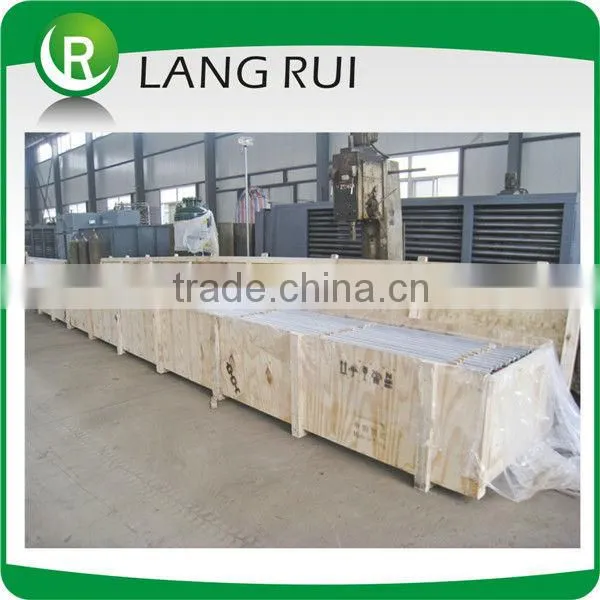

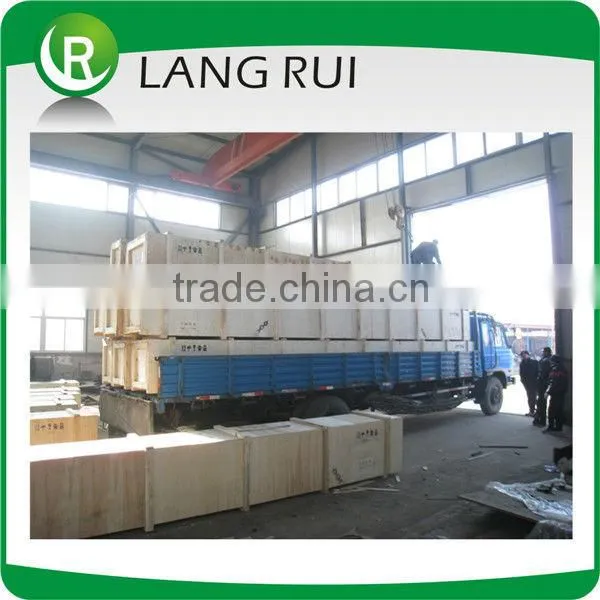

Packing & Transportation:

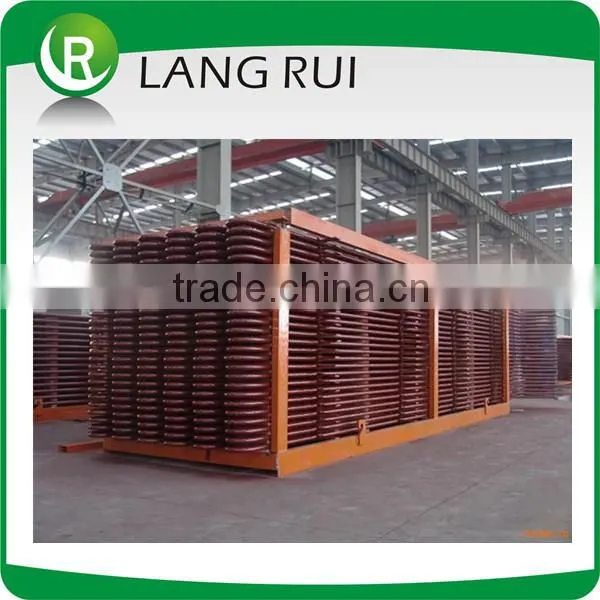

Application example:
