Ground Metal Spike Shackles Anchor

Ground Metal Spike Shackles Anchor thumbnail-1
Ground Metal Spike Shackles Anchor thumbnail-2
Ground Metal Spike Shackles Anchor photo-1

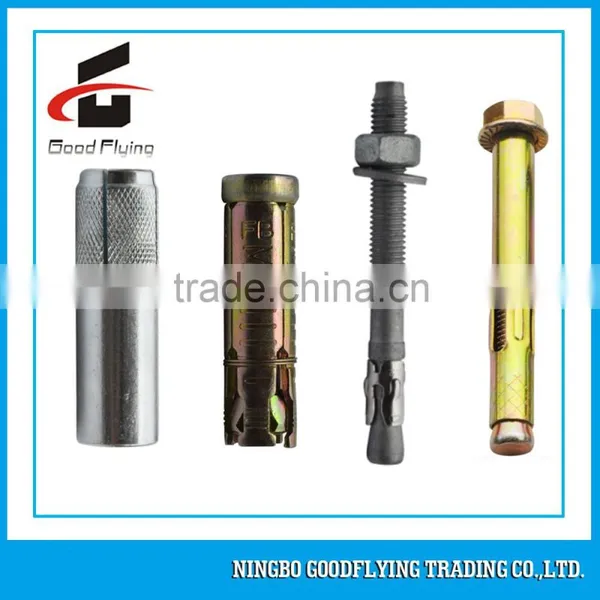

Ground Metal Spike Shackles Anchor photo-2
US$ 0.01 - 0.5 MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOOGFLYING
Type:
Wedge Anchor
Contact Supplier Request Quote Chat Now
Ningbo Good Flying Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GOOGFLYING
Type Wedge Anchor
Material Steel
Diameter M6-M20
Length 40-300mm
Capacity 680--4320
Standard DIN

Ground Metal Spike shackles anchor

Product Description

Wedge anchors are an excellent choice for concrete,because of their holding values. The holding power of the wedge anchor is always dependent on the quality of the concrete. As a rule of thumb, a safety factor of 4:1 or 25%, is generally accepted as a safe working load. Holding values are also derived from the depth of the embedment- the deeper the embedment, the better the holding values. The wedge anchor must be embedded into the concrete up to or past the minimum embedment depth to obtain published holding values.



Name wedge anchor
Place of Origin YuYao, ZheJiang, China
Size M6-M30 or non-standard as request&design
Length 40mm-300mm or non-standard as request&design
Grade 4.8, 5.8,6.8, 8.8,
Standards GB, DIN, ISO
Material Q195, C1008,45#, SS304,SS316
Surface Plain, galvanized, bule white, YZP etc
Delivery Within 15-30 days after confirm the order.
Payment L/C or T/T (30% in advance and 70% against the copy of BL)
Non-standards OEM is available if you provide a drawing or sample.
Samples Samples are free.
Usage                          Metal structures, profiles, floor, bearing plates, brackets, railings, walls,machines, beams, etc



Wedge anchorstainless steel anchor bolt hot dip galvanized wedge anchor bolt

Size  Thread Size   Weight (Kgs/1000pcs)

    Pull Out Load

    In Concrete  (kgf)
M6x40 M6-P1.0 10.9 680
M6x55 M6-P1.0 13.1
M6x70 M6-P1.0 15.5
M6x95 M6-P1.0 19.9
M8x60 M8-P1.25 25.2 920
M8x70 M8-P1.25 29.1
M8x80 M8-P1.25 31.1
M8x90 M8-P1.25 34.6
M8x100 M8-P1.25 37
M8x120 M8-P1.25 44.4
M10x80 M10-P1.5 55.5 1200
M10x95 M10-P1.5 61
M10x120 M10-P1.5 72.3
M10x130 M10-P1.5 80.7
M12x70 M12-P1.75 71 1840
M12x80 M12-P1.75 80.2
M12x90 M12-P1.75 86.5
M12x100 M12-P1.75 92.1
M12x110 M12-P1.75 99.2
M12x120 M12-P1.75 106.2
M12x130 M12-P1.75 114.7
M12x140 M12-P1.75 121.8
M12x150 M12-P1.75 126.8
M16x100 M16-P2.0 170 2720
M16x105 M16-P2.0 176.1
M16x140 M16-P2.0 219
M10x145 M16-P2.0 225.4
M16x150 M16-P2.0 235
M16x180 M16-P2.0 269.8
M16x220 M16-P2.0 326
