Home > Electrical & Electronics > Electronic Tube & Transistor > Rectifier Diode > XLamp XP-L High Intensity Original Cree Led Chip

XLamp XP-L High Intensity Original Cree Led Chip

Name: XLamp XP-L High Intensity Original Cree Led Chip
Brand: Original CREE
SKU: 115743569
Availability: InStock

XLamp XP-L High Intensity Original Cree Led Chip thumbnail-1

XLamp XP-L High Intensity Original Cree Led Chip photo-1

US$ 2.4 - 3.1 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Original CREE

Model Number:

XPL High Intensity

Contact Supplier Request Quote Chat Now

Shenzhen TongRui Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

HongKong/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

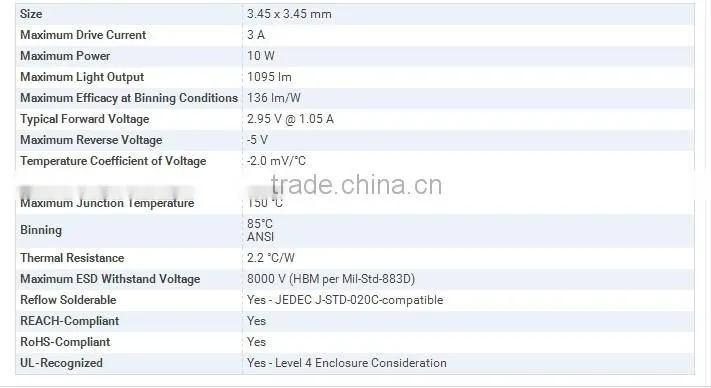

Place of Origin Guangdong, China

Brand Name Original CREE

Model Number XPL High Intensity

Type LED

Package Type Surface Mount

Max. Forward Voltage 3.25v

Max. Reverse Voltage -5v

Max. Forward Current 3000MA

Max. Reverse Current 10uA

Specifications

NEW!!! CREE XPL High Intensity led, CREE XP-L High Intensity leds, Highest Efficacy Single-Die LED
Size: 3.45 x 3.45mm

NEW!!! CREE XPL High Intensity led, CREE XP-L High Intensity leds, Highest Efficacy Single-Die LED

XLamp XP-L High Intensity

Industry’s First High-Intensity LED

The XLamp® XP-L High-Intensity LED is the first of Cree’s new class of High-Intensity LEDs optimized to deliver maximum candela through secondary optics. The XP-L High-Intensity LED is the first single-die LED to deliver over 100,000 cd in a 4-degree beam with a 50-mm diameter optic at 10 W. Built on Cree’s breakthrough SC5 Technology™ Platform, the XP-L High-Intensity LED delivers more than double the candelas of the industry’s previous highest-performing single-die XP-L LED through the same optic. The new high-intensity LED offers a drop-in ready upgrade for XP-based luminaire designs, enabling manufacturers to achieve higher luminous intensity with minimal redesign to accelerate time to market.

More Details

Notes:

• Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and ±2
on CRI measurements.
• Typical CRI for Cool White (5000 K – 8300 K CCT) is 65.
• Typical CRI for Neutral White (3700 K – 5000 K CCT) is 75.
• Typical CRI for Warm White (2600 K – 3700 K CCT) is 80.
• Minimum CRI for 70-CRI White is 70. • Minimum CRI for 80-CRI White is 80.
• Minimum CRI for 85-CRI White is 85. • Minimum CRI for 90-CRI White is 90
* Flux values @ 25 °C are calculated and are for reference only.
** Calculated flux values at 1500 mA, 2000 mA and 3000 mA are for reference only.

Applications:

Directional
Low- & High-Bay
Roadway & Parking
High-End Portable
