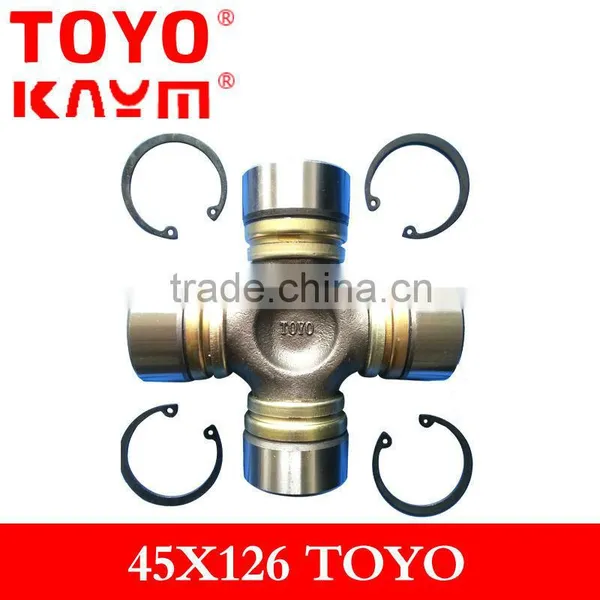

Help Center45x126 UNIVERSAL JOINT
Related Products
We are universal joint,cross joint,drive shaft,tripods and glow plugs manufacturer
1.30 years manufacturing universal joint experience
2.more than 30 years export experience all over the world
3.have own brand,such as TOYO,KAYM,FEMO and so on
4.got perfect management system certification :ISO9001
5. pay more attention to the quality and credibility, integrity-based, quality first
| 1) Materials: CROSS material :20Cr or 20CrMnTi gear steel hardness:HRC59°-63°,
CAP material:20Cr
hardness:HRC58°-61°
NEEDLE material:Gcr15
hardness:HRC61°-65°
|
| 2) More than 1000 size ,Full range for the universal joint & many type of suspension parts ,such as ball joint,tie rod end ,rack end… |
3) OEM available, Can develop according to customer's drawings or samples |
| 4) Good quality and resonable price |
Universal joint kits Specification:
| FIG | PART NO | D | L | SPICER | PRECISION | GMB |
| A | GU1000 | 27 | 81.8 | 5-153X | 369 | GU1000 |
| A | GU1210 | 27 | 62 | |||
| A | GU1100 | 27.01 | 74.6 | 5-102X | 344 | GU1100 |
| A | GU1600 | 23 | 58.2 | |||
| A | GU1670 | 24 | 62.4 | GU298 | ||
| A | GU1700 | 22 | 55.6 | |||
| A | GU1760 | 22.06 | 67.1 | |||
| A | GU1780 | 27 | 80 | GU401 | ||
| A | GU200 | 24 | 63.31 | GU200 | ||
| A | GU2000 | 30.188 | 106.35 | 5-160X | 330 | GU2000 |
| A | GU2010 | 32 | 106.3 | |||
| A | GU2050 | 30.188 | 106.35 | 5-160X | 330 | GU2050 |
| A | GU2200 | 30.188 | 92.075 | 5-178X | 331 | GU2200 |
| A | GU2300 | 34.93 | 106.31 | 5-188X | 351 | GU2300 |
| A | GU297 | 24.06 | 78 | |||
| A | GU300 | 19.04 | 51.98 | GU300 | ||
| A | GU3500 | 39.675 | 115.42 | 5-15X | 370 | GU3500 |
| A | GU3800 | 44.04 | 126 | |||
| A | GU3810 | 50 | 152.6 | |||
| FIG | Part No. | D mm | L mm | Spicer | Precision | GMB |
| A | GUN26 | 23.82 | 61.3 | 37125 -11975 | N2461 | UJ110 |
| A | GUN30 | 30.17 | 90.1 | 37125-85461 | N3092 | UJ115 |
| A | GUN32 | 35.5 | 119.2 | 37125-58026 | N36119 | UJ117 |
| A | GUN33 | 43 | 128 | 37125-99901 | ND43128 | UJ119 |
| A | GUN36 | 25 | 77.6 | 37125-4101 | NP2578 | UJ120 |
| A | GUN44 | 20.5 | 56.5 | 37125-99000 | UJ124 | |
| A | GUN45 | 20.07 | 52.4 | 37125-H8500 | ||
| A | GUN47 | 27 | 81.75 | 37125-25025 | ||
| A | GUN48 | 27 | 81.75 | 37125-7F025 | ||
| A | GUS2 | 20.02 | 35 | 27100-67000 | ||
| A | GUS6 | 20.1 | 59.8 | 27200-60511 | ||
| A | GUS7 | 25 | 63.8 | 27200-83010 | ||
| A | GUSR-3 | 28 | 52.6 | 6232-4300 | ||
| A | GUT-11 | 20 | 57 | 04371-10011 | T2057 | UJ212 |
| A | GUT-14 | 28.5 | 77.9 | 04371-60010 | T2978 | UJ214 |
| A | GUT-15 | 34 | 107 | 04371-55011 | T34107 | UJ216 |
| A | GUT-16 | 40 | 118 | 04371-55020 | T40119 | UJ215 |
| A | GUT-19 | 20 | 57 | 04371-10010 | T2057 | UJ222 |
| A | GUT-22 | 40 | 118 | 04371-55021 | ||
| A | GUT-24 | 22.06 | 57.5 | |||
| A | K5-13XR | 26.99 | 81.76 | |||
| A | K5GB10R | 30.188 | 106.35 | |||
| A | K5L4R | 27 | 74.6 | |||
| A | KC2832ADW | 40 | 115.6 | |||
| A | KC2932ADW | 44 | 129 | |||
| A | S-E129 | 41.27 | 126 | |||
| A | S-F365 | 55.03 | 164 | |||
| A | S-F366 | 60.03 | 162 | |||
| A | SPL140-1X | 49.22 | 139 | |||
| A | SPL170-1X | 55 | 165 | |||
| A | SPL250-1X | 60 | 163 | |||
| A | SPL70-1X | 34.9 | 126.1 | CZ256 | ||
| A | SPL90-1X | 41.28 | 126 | CZ271 | ||
| A | U040 | 23.8 | 61.3 | 5-101X/502X | 340 | UJ040 |
| A | U050 | 23.8 | 61.3 | 5-102X/5-111X | 341 | UJ050 |
| A | U080 | 26.94 | 61.85 | 5-310X | 437G | UJ080 |
| A | U100 | 27 | 81.8 | 5-153X/5-204X | 329/521 | UJ100 |
| A | U110 | 27 | 74.6 | 5-94X | 344 | UJ110 |
| A | U126 | 16.05 | 40 | ST1640 | - | UJ126 |
| A | U180 | 20 | 57 | 5-1500X | 395 | UJ180 |
| A | U189 | 40 | 118 | GUT16 | U189 |
Features of our goods:
1.material
We have TOYO,KAYM,FEMO and so on brand.
For TOYO ,TOYO plastic bag, TOYO box, TOYO laser label, TOYO carton. TOYO is our registered brand in China.
KAYM plastic bag, KAYM box, KAYM laser label, KAYM carton. KAYM is our registered brand in China.
TOYO and KAYM are our popular packaging, we also have registered KAM, FEMO,ALLOY, etc.
1. T/T : 30% advance,the blance before shipment or at sight of B/L copy.
2. Paypal :(the amount is small)
3. L/C :Advance 30% by T/T,70% at sight of B/L copy,or irrevocable L/C at sight.
