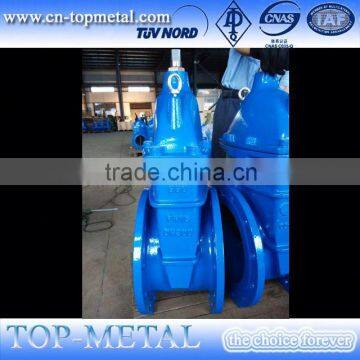

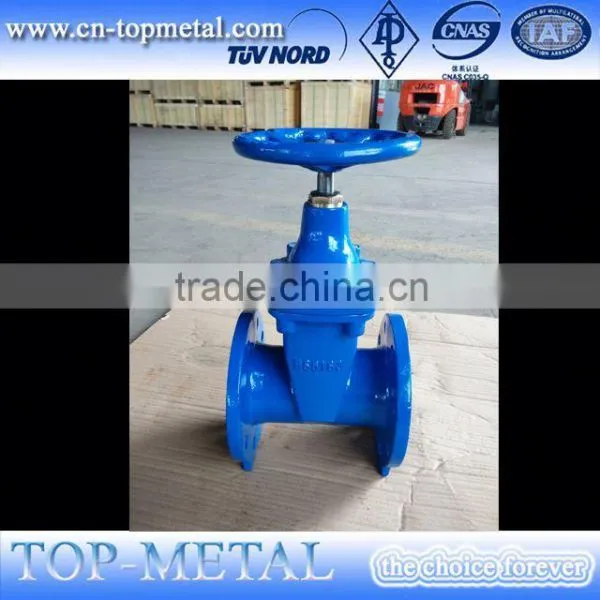

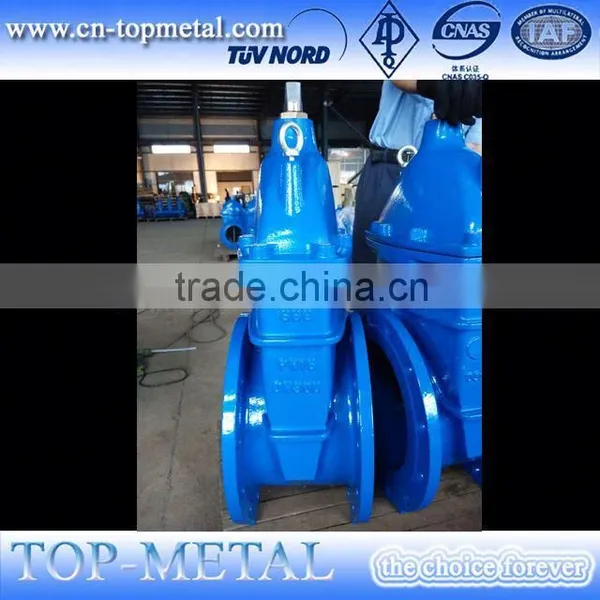

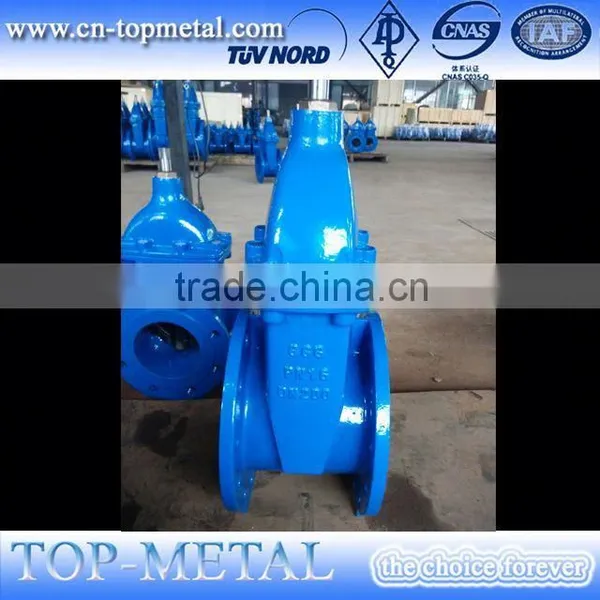

top quality bs5163 6 inch water gate valve
DN |
L |
F |
K |
D |
n |
d |
50 |
178 |
99 |
125 |
165 |
4 |
19 |
80 |
203 |
132 |
160 |
200 |
8 |
19 |
100 |
229 |
156 |
180 |
220 |
8 |
19 |
150 |
267 |
211 |
240 |
285 |
8 |
23 |
200 |
292 |
266 |
295 |
340 |
12 |
23 |
250 |
330 |
319 |
355 |
400 |
12 |
28 |
300 |
356 |
370 |
410 |
455 |
12 |
28 |
1) Product information: the gate valves supplied are mainly used for adjusting water, steam, oil, gas, and natural gas in chemical industries
2) Standards: AWWA, DIN3352 F4/F5, BS5163, BS5150
3) Connection type: flanged type, push-on type, mechanical joint type, plain ends type
4) Material:
a) Body : Ductile Iron GGG500-7
b) Wedge : D/I , core fully vulcanized with NBR or EPDM rubber
c) Wedge Nut : Brass
d) Stem : Stainless steel , BS970 431S29 or DIN17440x20Cr13
e) Gasket : NBR
f) Bonnet : GGG500-7
g) O ring : NBR
h) Washer : Carbon steel or Stainless steel .
5) Size: 50-400mm/2" - 16"
6) Pressure grade: PN10, PN16
7) Coating:
a) Fusion-bonded epoxy 200-250 microns inside and out side
b) Coating as per customers' requirement
8) Package : carton for each item , wooden boxes outside .
Other types valves
Business Scope
We supply and export various kinds of flanges, steel pipe(especially High grade pipeline steel ) ,butt-welding pipe fittings e.g. elbow, tee, reducer, cap. forged steel 3000lb 6000lb 9000lb pipe fittings, pipe couplings / nipples, , stainless steel fittings, customized steel parts etc. with 15years’ rich experience and advanced processing equipment.
1) Satisfied quality Buy cargo exactly you want.
2) Perfect service To ensure every order to go smoothly.
3) Workable prices Make your every cent to have its value.
4) Great cooperation Work with TOP-METAL will be a choice forever.
