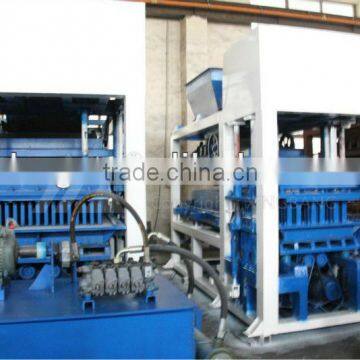

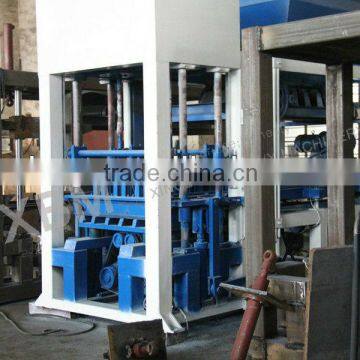

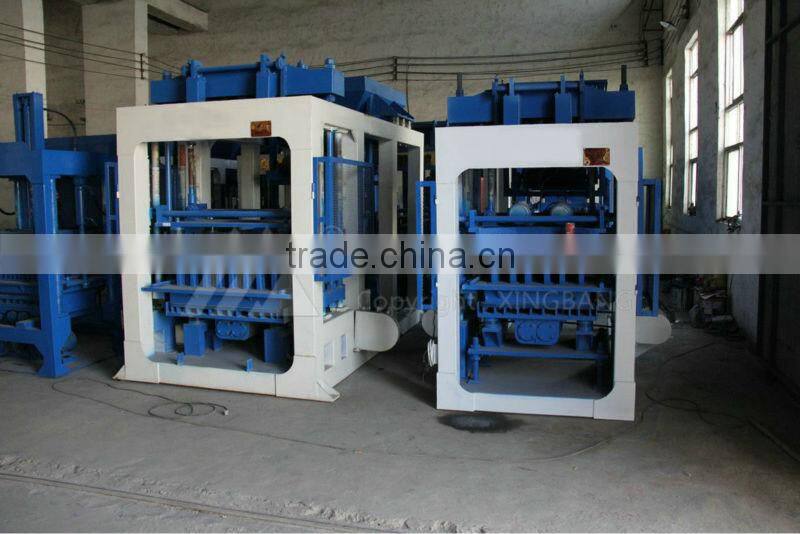

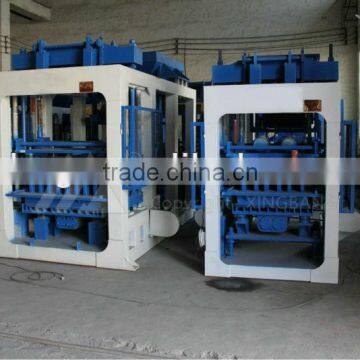

Hydraulic Multifunction Paving Brick Making Machine

Specifications

Advantages of XBM paving brick making machine

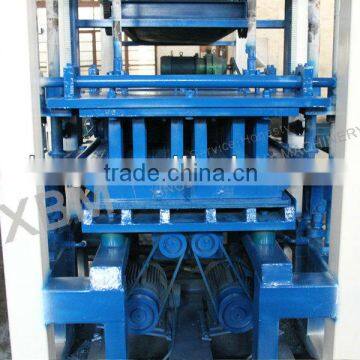

1.With separate coupling vibration technology
Which can effectively expand the vibration area and achieve two-fold, substantial progress in product quality and output. And effectively extend the useful life of the mould. Vibration box with

hanging structure, can withstand severe vibration without damage and fracture. Eccentric shaft vibration synchronous

rotating vertical structure produced by the exciting force, enable the best results of fabric and forming.

2.Full automatic block machine feeding machine system.

The feeding machine rastellus use combined type, and make it more

convenient when change it, and the feeding part use Push-pull type with back and forth .and make the aggregate will more

balance, and assure the concrete blocks hight and weight keep accordance. Use the Continuous rotary type and compulsory

feeding system can achieve mixing second time. Feeding speed more quickly.Full automatic free burned block making

machine ejection mechanism: This body mainly uses two fuel tanks mounted under the bottom of the rack to control the

movements of ejection seat; rack at the top adopts armtype rigid synchronization mechanism, which may ensure that the

mold frame moves smoothly, when de-moulding will not damage the surface of molding bricks.

3.Full automatic block machine color surface machine parts

The color surface machine crane use hydraulic control system, the color surface hopper connected by crane and rubber

spring, will have shock absorption effect, at the same time can prevent rest color material become lump. The material dor

control the hopper open and close ,will achieve feeding balance.

4.The brick conveyor system of fully automatic brick forming machine

The system is equipped with one automatic brick getting-out machine and automatic brick getting in machine , The brick

getting-out machine uses the V-belt to drive brick pallets for reducing the abrasion of pallets. And also brick getting- out

machine is equipped with Paint Roller,which could adjust the height of Rolling Brush rack via the screw nut so that the

whole process would become more accurate and expeditious.

 5.Technical Parameter of paving brick making machine used:
