Specifications
1.For 146 casing drilling for water well.2.Hammer size:4" DHD340 hammer
3.Ring bit diameter:150mm
4.Normal bit diameter:115m
Usage:
1.Usually used in water well drilling.
2..In not stable rock formation,the casing is necessary to follow.
3.Match to 4" hammer and 146 casing.
4.Max outer diameter of normal bit is 115mm
5.Air pressure is 20 Bar and air volumn is 500 cfm.
Advantages:

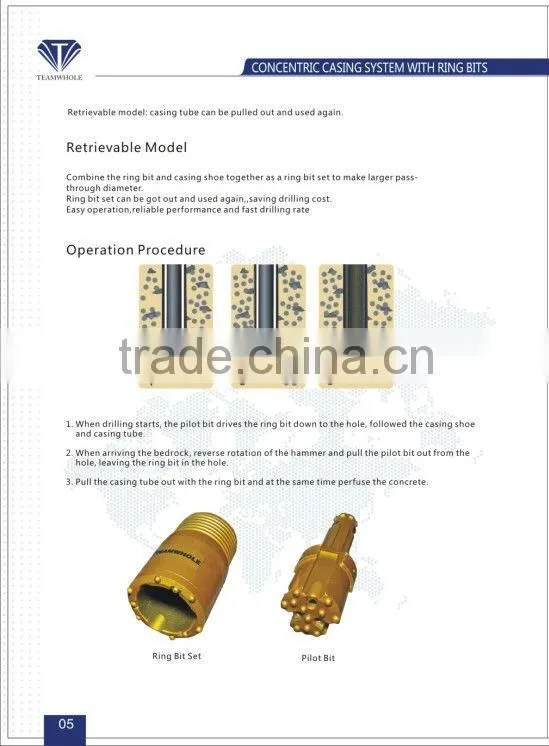

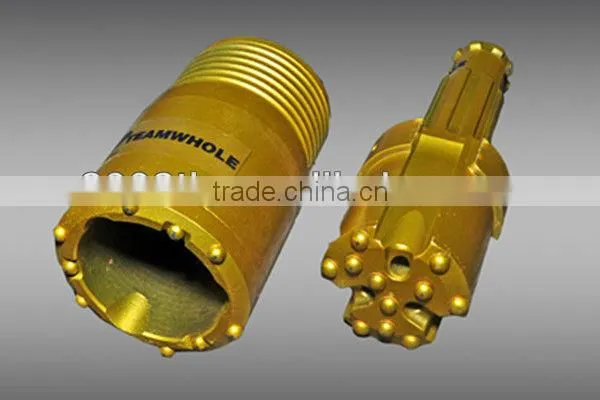

1.Combine the ring bit and casing shoe together as a ring bit set to make larger pass-through diameter.
2.Ring bit set can be got out and use again,saving drilling cost.
3.Easy operation,reliable performance and high drilling rate.
