Double Casing Drilling Tools

Double Casing Drilling Tools thumbnail-1
Double Casing Drilling Tools photo-1
Negotiable MOQ: 3 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Tianhe
Model Number:
Double casing drilling tools
Contact Supplier Request Quote Chat Now
Changsha Tianhe Drilling Tools And Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name Tianhe
Model Number Double casing drilling tools
Type Other, casing systems
Material Other, carbide, Carbide
Use Other, grouting holes

Specifications

1.Different Structure:With inner drill rods and With inner hammer
2.Simple structure
3.Certificate: ISO9001:2008, SONCAP

Double casing drill bit with DTH hammer  to grouting holes





Application Range: It can be widely used in drilling for grouting holes in projects such as cofferdam,foundation and geothermall and etc.

Working Principles:As water or compressed air for medium,the discharged head make the casing tube and drill rod totate and penetrate.

Structure: with inner drill rods and with inner hammer and Easy operation

Technical parameters

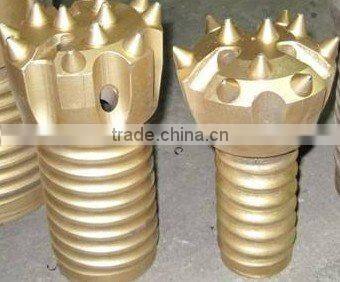

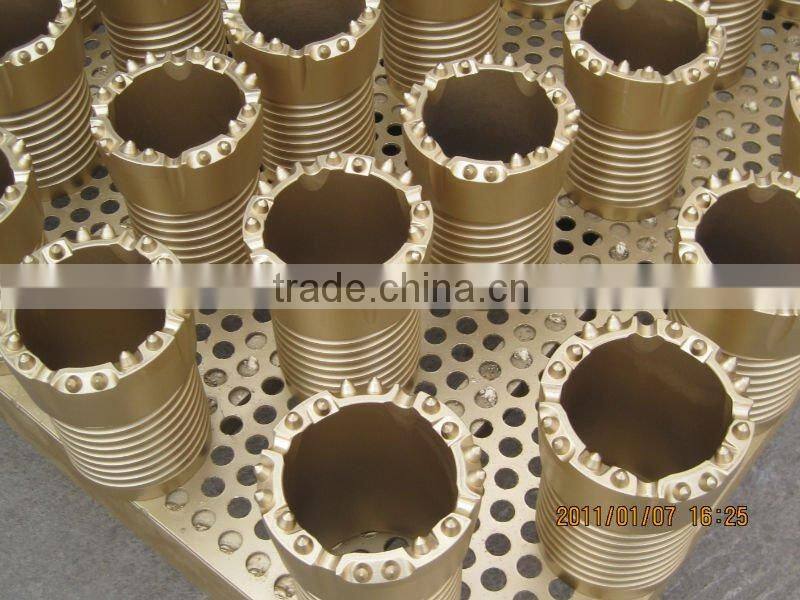

Ring Bit

 Inner Bit

Outer Dia. of

Casing

(mm)



Bore Hole

Dia.

(mm)



Thread

(mm)



Buttons

Dia.×Qty.



Weight

(kg)

Drill Rod Dia.

(mm)

Drill Bit Dia.

(mm)



Thread



Buttons

Dia.×Qty.



Weight

(kg)

118

125

104.2

12×13mm/6×12mm

7.0

73

85

R56

8×12mm/6×11mm

4.5

133

142

122

12×13mm/6×13mm

7.5

73

99

R56

8×14mm/6×14mm

5.0

146

155

134

12×14mm/4×13mm

8.0

73

115

R56

8×14mm/7×12mm

6.0

168

175

153.9

12×12mm/6×12mm

10.5

73

127

R56

9×14mm/8×14mm

7.0



Double Casing Drilling Tools



Double Casing Drilling Tools



Double Casing Drilling ToolsDouble Casing Drilling Tools



How to complete the whole deal

Step:

1. Firstly decide the design, material and color

2. Decide the size in accordance with client's requirement and our

 recommendation

3. We will give the best offer.

4. Client's accept the offer and we send proforma invoice.

5. Client transfers 30%-50% deposit and production begins

6. After production, we will send ready products photo

7. After client's confirmation, we will arrange shipment, and send

copy shipping documents like B/L, commercial invoice and

packing list

8. Client transfer balance payment and we will send original

documents by DHL or EMS



Double Casing Drilling Tools
