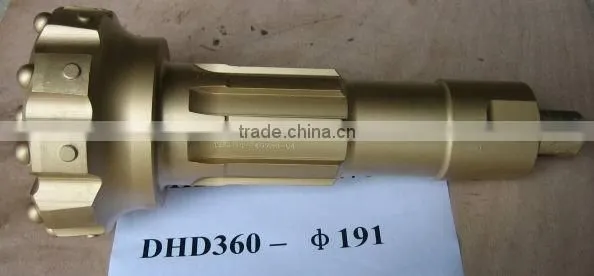

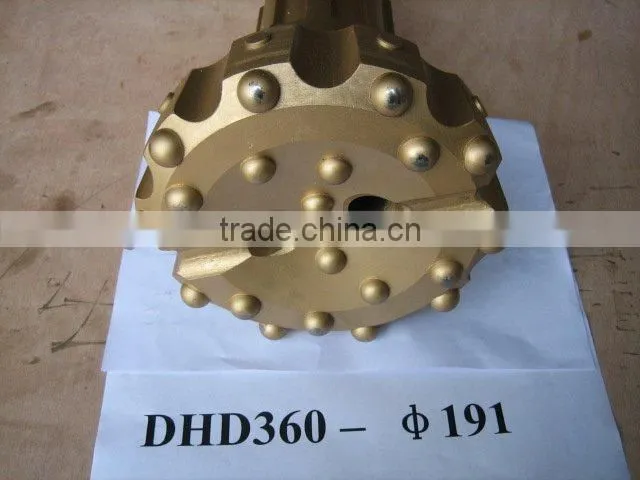

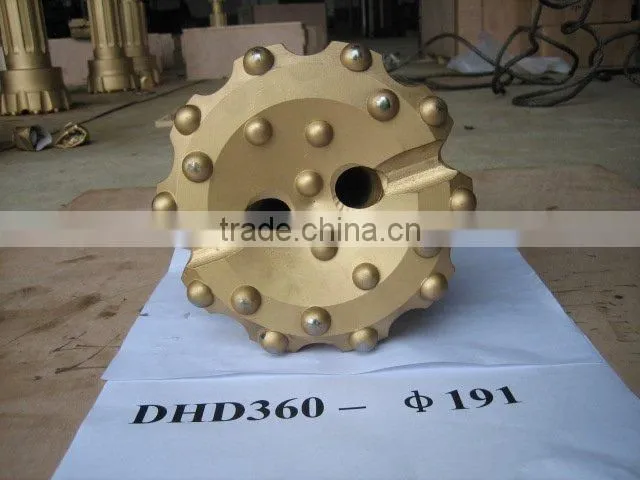

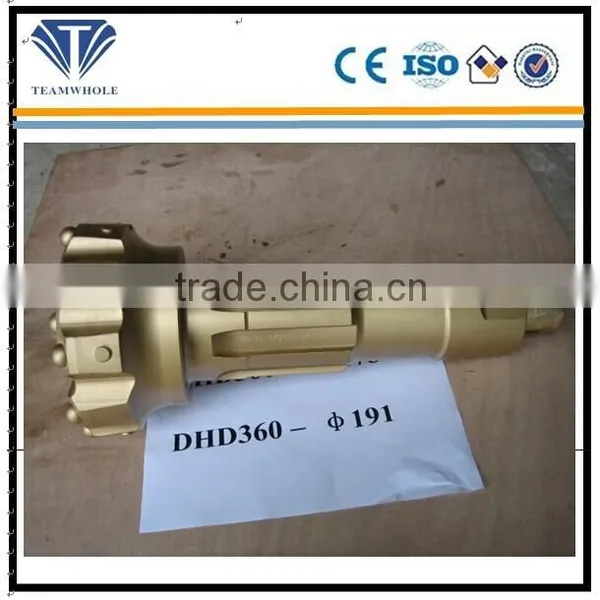

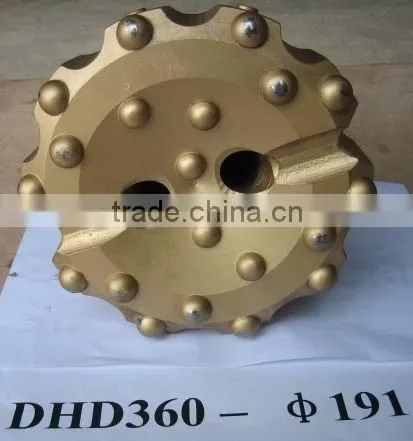

DHD360 191mm Drill Bit

DHD360 191mm Drill Bit thumbnail-1
DHD360 191mm Drill Bit photo-1
US$ 408 - 510 MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Tianhe
Model Number:
DHD360-191 drill bit
Contact Supplier Request Quote Chat Now
Changsha Tianhe Drilling Tools And Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name Tianhe
Model Number DHD360-191 drill bit
Type Other, DTH Bits
Material Other, carbide, Carbide
Use Well Drilling

Specifications

DHD360 drill bit:Cemented carbide buttons
three kinds of faces design
longer service life
Certificate: ISO9001:2008, SONCAP

Fetures:

1.Can match to the original Cop64.2 hammers.
2.Main three styles of face of drill bit: flat,concave and convex faces
3. spherical, ballistic, parabolic inserts

4.Reliable quality, long service life,  rare abnormal breakage during service life.

5.Good flushing effect to ensure high drilling rate

6.Strict quality warranty and compensation rules

7.high penetration rate

Markets: Italy, France, Russia, Greece,Canada,Korea, Chile, Brazil, Nigeria, Mongolia and etc.

Examples For Ordinary Bits:

 Concave, spherical(other designs of faces and inserts are available



Bit Dia.(mm)



Qty.× Button Dia.(mm)



Qty.Air Holes



Weight

(kg)



Product Code



Outer



Front

152

8×16

4×16+4×14

2

23.2

140604

165

8×18

4×18+5×16

2

24.0

140914

172

8×18

4×18+4×16

2

25.1

140764

178

9×18

5×18+5×16

3

26.0

141124

185

8×19

5×19+5×16

2

26.5

140854

190

10×18

5×16+5×16

2

29.2

140664

195

10×18

5×18+5×16

2

29.9

140304

204

10×18

6×18+7×16

2

32.4

141254



DHD360 191mm drill bit        DHD360 191mm drill bitDHD360 191mm drill bit           DHD360 191mm drill bit



DHD360 191mm drill bit



DHD360 191mm drill bit



How to complete the whole deal

Step:

1. Firstly decide the design, material and color

2. Decide the size in accordance with client's requirement and our

 recommendation

3. We will give the best offer.

4. Client's accept the offer and we send proforma invoice.

5. Client transfers 30%-50% deposit and production begins

6. After production, we will send ready products photo

7. After client's confirmation, we will arrange shipment, and send

copy shipping documents like B/L, commercial invoice and

packing list

8. Client transfer balance payment and we will send original

documents by DHLor EMS



DHD360 191mm drill bit
