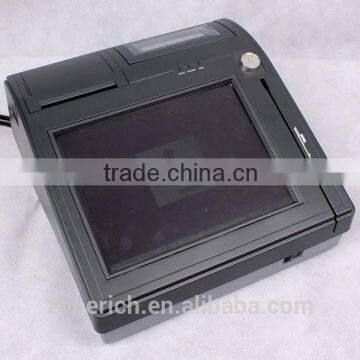

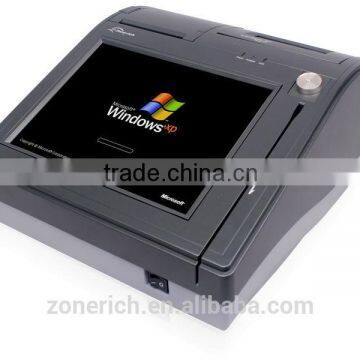

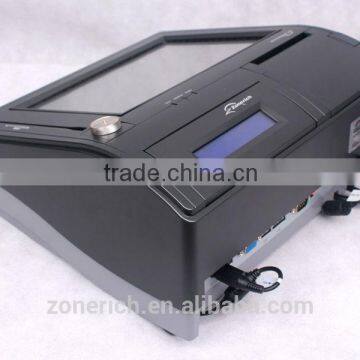

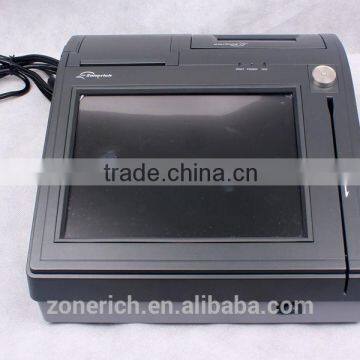

10" All in one touch POS terminal with MSR card reader ZQ-P1080 from ZONERICH

Specifications

1. All-in-one design
2. Built-in 80mm Seiko mechanism thermal printer
3. Various options of peripherals-MAR/Dallars key

PRODUCT NAME: ALL-IN-ONE POS

MODEL#: ZQ-P1080



HIGHLIGHTS

1. All-in-one design
2. Built-in 80mm Seiko mechanism thermal printer
3. Various options of peripherals-MAR/Dallars key
4. Built-in adjustable customer display



OPTIONAL

-          MSR/ Dallas key, customer display



FEATURES

- Compatible with both PC based architecture

The architecture is designed to compatible with both PC main board. For different requirement levels from professional customers, we could customize different systems to mostly satisfy them.

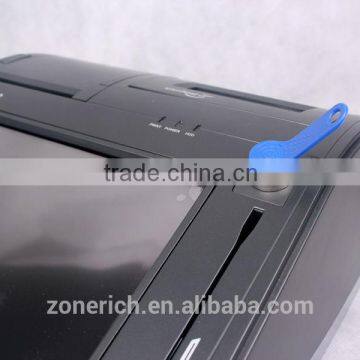

- Dallas key

The security concept is getting stronger in the market. Dallas key could meet the requirement. Or it could be used for applications which will need finger printing identifier. This feature expands the application compatibility widely.



- View-angle adjustable

Users only need to press the bottom of the customer display. The display will rotate to the angle users prefer it to be. This intellectual designing provides more comfort to customers and saves space for machine.



- Easy-disassemble to Hard Disc & Power Adaptor

The Hard Disc and Power adaptor are buried in the slot at the bottom of the cabinet. Users could change them easily only by turning over the machine. All plugs are well designed with concepts of users friendly.





SPECIFICATION

SYSTEMS	CPU Support: Intel ATOM D525 CPU 1.80GHz Memory: 1 x DDR3 2GB Network: 10/100/1000Base-T Fast Ethernet Power Supply: 48W external Power adapter Dimension: 365x376x119mm(WxDxH) HDD: 1 x 2.5" SATA HDD 320GB

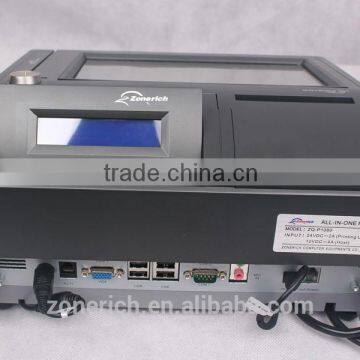

I/O PORTS	USB: 4 x USB 2.0 port Serial Port: 3 x DB-9 (COM 1/2/3) PS/2: 1 x PS/2 port LAN: 1 x 10/100/1000 Mbps Audio: Interface x 2 VGA: 1 x DB-15 VGA Interface Cash Drawer: 1 x RJ11 Cash drawer port (12V/24V)
DISPLAY	Viewing Angle: 15 ~ 18 degree adjustable LCD: 10.1" TFT LCD Max. Resolution: 10.1 1024 x 768 Touch Screen: 5-wires resistive 20,000,000 times touch life
ENVIRONMENT	Operation Temperature: 0~45°C Storage Temperature: -20~60°C Humidity: 20~90%
PRINTER	Mechanism: 80mm Thermal Speed: 200mm/sec (MAX) Paper Width: 58mm/80mm adjustable Paper Diameter: 60mm Auto Cutter: Full cut/Partial cut selectable
Customer Display	Angel adjustable from 19.5 to 71.5 degree
Display Panel	2X20 LCD
