Specifications
1. Long time Lithium-ion battery (7.4V 2000mAh is optional).2. Mobile printer can work under many mobile systems.
PRODUCT NAME: Desktop Mobile Printer
MODEL#: AB-DM501
HIGHLIGHTS

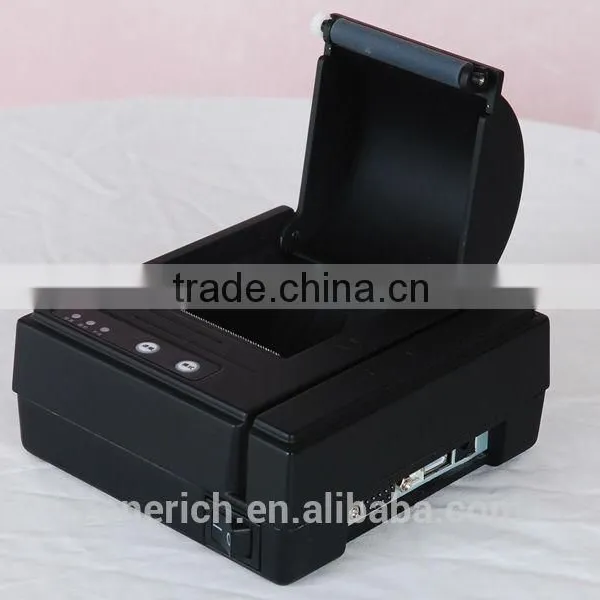

- Easy loading paper
- Excellent printing speed: 60mm/s for 58mm and 80mm printing

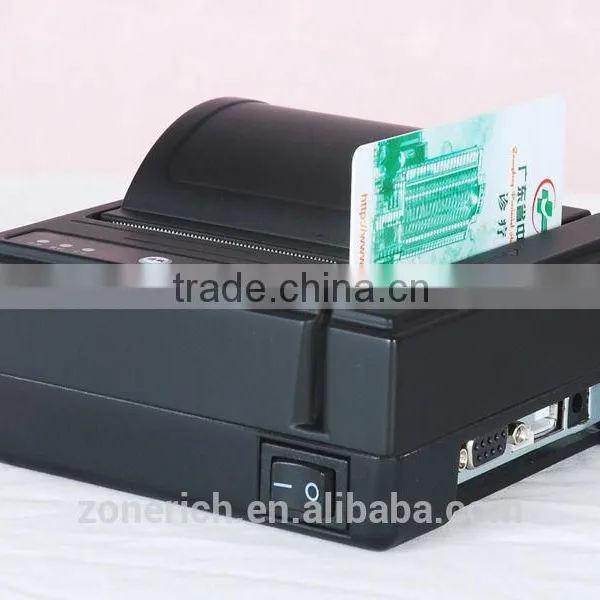

- Magnetic card reader available for 58mm printing

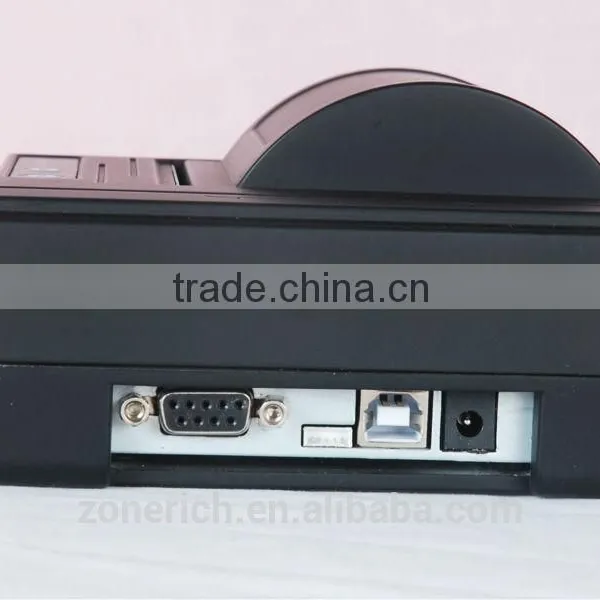

- Serial port and USB port provide users with more choices
- Bluetooth communication makes the printer more flexible
OTHER VALUE-ADDED FEATURES
- Long time Lithium-ion battery (7.4V 2000mAh is optional).
- Mobile printer can work under many mobile systems.
- Wide usage: mobile police system, logistic system, mobile office system etc.
SPECIFICATION
Printing |
Direct thermal line printing |
Paper Supply Method |
Easy Paper Loading |
Characters Per Line |
Font A:32C,Font B:42CPL |
Character Size |
Font A:12x24,Font B:9x17 |
Resolution |
203dpi(8dots/mm) |
Print Width |
48mm |
Printing Speed |
60mm/sec |
Cutter Type |
Manual tearing |
|
Paper Type: Thermal Paper |
Paper Roll |
Paper Diameter: 50mm(MAX) |
|
Paper Width: 58mm |
Receive Buffer Size |
4KB |
Interface |
Serial, USB, Bluetooth(option) |
Barcodes |
1D:CODE 39,CODE128,EAN-8,EAN-13 |
Battery(option) |
Type: Lithium-Ion(option) Output:DC7.4V/Capacity:2000mAh |
Adaptor |
Input AC110~240V Output DC9V 3A |
Operating Temperature |
0°C ~50°C |
Storage Temperature |
-10°C ~60°C |
MCBF |
Electric Life:100,000,000 pulses Wear Life: Paper feed length Approximately 50 Km Battery:500 Cycles Rechargeable |
MSR(option) |
Auto 1/2/3 track(option) |
Dimensions (W x D x H) |
121x113x70mm |
Weight |
250g |
