Cnc Wire Cutting Machine DK7755B
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DK7735 Wire Straightening and Cutting MachineNegotiableMOQ: 1 Set -
Wire Straightening and Cutting Machine DK7755BNegotiableMOQ: 1 Set
-
DK7763 Wire Straightening and Cutting MachineNegotiableMOQ: 1 Set
-
DK7763H Cnc Middle Speed Wire EdmNegotiableMOQ: 1 Set
-
Edm Wire Cnc DK7735NegotiableMOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Jiangsu, China
Brand Name
JZ
Model Number
DK7755B
Voltage
AC380V/220V
Power(W)
≤2kw
Dimension(L*W*H)
2070 1950 1790
Weight
2600
Certification
TM ISO9001:2008
Warranty
1 year
Specifications
cnc wire cutting machine DK7755Baccurate easy operate
linear guide rail
efficient low noise
TM ISO9001:2008

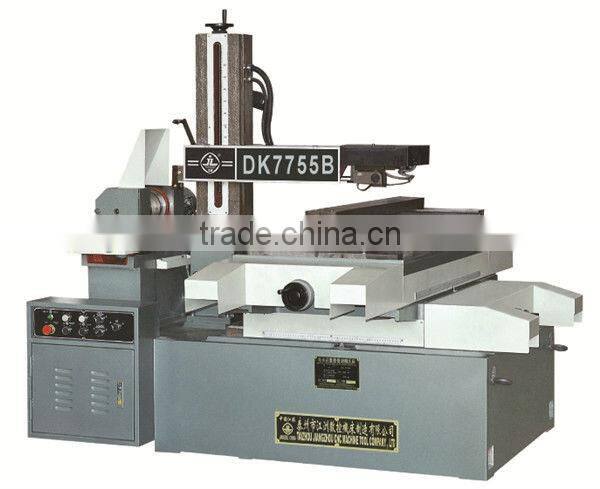

cnc wire cutting machine DK7755B
| Type | DK7755B |
| Worktable Size | 596×1060 |
| Worktable Travel | 550×850 |
| Max. Cutting Speed | 100 |
| The Largest Storage Wire Length | 320 |
| Max. Workpiece Height | 500 |
| Wire Electrode Diameter | Φ 0.12~ Φ 0.18 |
| Precision (Cutting the Octagon) | 0.015 |
| Taper (Optional) (mm) | 6°~60°/80 |
| Max. Workpiece Weight (kg) | 850 |
| Machine Weight | 2600 |
| Machine Dimension | 2100×1550×1850 |
| Power Consumption | AC380ν/220ν50HZ≤2KW |
The high -end machine adopts precise ball screw linear guide track.
High column matches electric lift to adjust the gap of guide wheel and large swing taper machine matches electrode wire wire expansion mechanism.
We also produce semi-closed environmental-protection machine.
The diameter range of molybdenum wire is 0.12mm~Φ0.18mm (moly wire diameter over than Φ0.18mm should be customized).
The maximum working speed is over 100mm ²/min and the best surface roughness is less than Ra2.5 μm.
