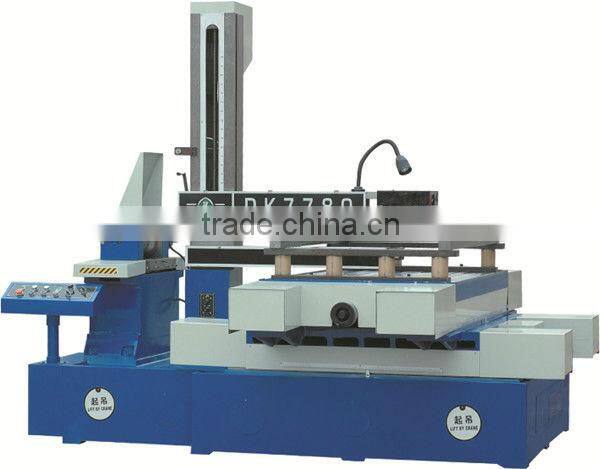

Cnc Wire Cut Machine DK7780

Cnc Wire Cut Machine DK7780 thumbnail-1
Cnc Wire Cut Machine DK7780 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Taizhou Jiangzhou Numerical Control Machine Tool Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Jiangsu, China
Brand Name JZ
Model Number DK7780
Voltage AC380V/220V
Power(W) ≤2kw
Dimension(L*W*H) 2900 2500 2150
Weight 5500
Certification TM ISO9001:2008
Warranty 1 year

Specifications

cnc wire cut machine (DK7780)
accurate/easy control
linear guide rail
efficient/heavy/low noise
TM/ ISO9001:2008



cnc wire cut machine  DK7780 cnc wire cut machine DK7780

Type DK7780
Worktable Size 900×1500
Worktable Travel 800×1200
Max. Cutting Speed 100
The Largest Storage Wire Length 500
Max. Workpiece Height 600
Wire Electrode Diameter Φ 0.12~ Φ 0.18
Precision (Cutting the Octagon) 0.02
Taper (Optional) (mm) 6°~60°/80
Max. Workpiece Weight (kg) 1500
Machine Weight 5500
Machine Dimension 2800×1950×2150
Power Consumption AC380ν/220ν50HZ≤2KW

 cnc wire cut machine DK7780cnc wire cut machine DK7780

The high-end machine adopts precise ball screw linear guide track.

High column matches electric lift to adjust the gap of guide wheel and large swing taper machine matches electrode wire wire expansion mechanism.

We also produce semi-closed environmental-protection machine.

The diameter range of molybdenum wire is 0.12mm-Φ0.18mm (molybdenum wire diameter over than Φ0.18mm should be customized).

The maximum working speed is over 100mm ²/min and the best surface roughness is less than Ra2.5 μm.
