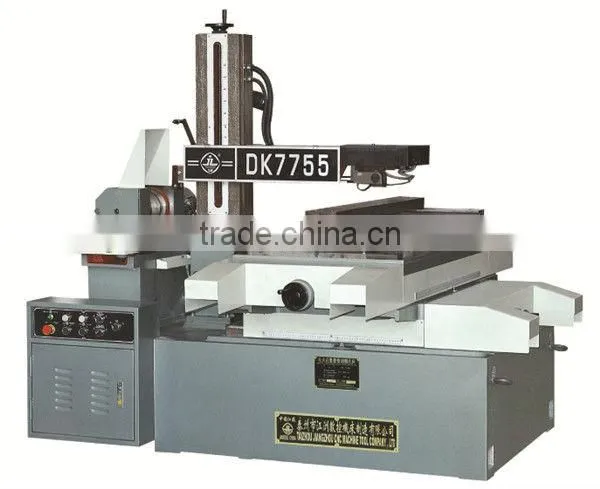

DK7755 medium speed wire edm machine

Specifications

CNC Wire Cutting Machine (DK7755)
accurate/easy control
linear guide rail
efficient/heavy/low noise
TM/ ISO9001:2008

Type	DK7755
Worktable Size	596×880
Worktable Travel	550×650
Max. Cutting Speed	100
The Largest Storage Wire Length	320
Max. Workpiece Height	500
Wire Electrode Diameter	Φ 0.12~ Φ 0.18
Precision (Cutting the Octagon)	0.015
Taper (Optional) (mm)	6°~60°/80
Max. Workpiece Weight (kg)	800
Machine Weight	2500
Machine Dimension	2100×1450×1950
Power Consumption	AC380ν/220ν50HZ≤2KW



The high-end machine adopts precise ball screw linear guide track.

High column matches electric lift to adjust the gap of guide wheel and large swing taper machine matches electrode wire wire expansion mechanism.

We also produce semi-closed environmental-protection machine.

The diameter range of molybdenum wire is 0.12mm~Φ0.18mm (moly wire diameter over than Φ0.18mm should be customized).

The maximum working speed is over 100mm ²/min and the best surface roughness is less than Ra2.5 μm.
