Home > Products > DK77 Series Wire-Cut EDM > High Quality Low Price Cnc Edm Wire Cutting Machine Quality Choice
High Quality Low Price Cnc Edm Wire Cutting Machine Quality Choice
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Jiangsu, China | Brand Name | JZ | |
| Model Number | DK7720 High Quality low price cnc edm wire cutting machine | Voltage | AC380V/220V | |
| Power(W) | ≤2KW | Dimension(L*W*H) | 1160*880*1400 | |
| Weight | 800 | Certification | CE ISO | |
| Warranty | ONE YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

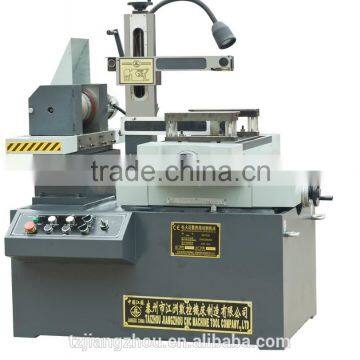

High Quality low price cnc edm wire cutting machine
Technical Data:
Type | DK7720 |
Worktable Size(mm) | 270*420 |
Worktable Travel(mm) | 200*250 |
Max.Work-piece Cutting Thickness(mm) | 200 |
Taper (mm) | 6°/80 |
Max. Work-piece Weight (kg) | 100 |
Machine Weight(kg) | 800 |
Machine Dimension(mm) | 1160*880*1400 |
Power Consumption | AC380ν/220ν50HZ≤2KW |
Machining Precision(mm) | 0.015 |
Max. Cutting Speed(mm) | 120 |
Wire Electrode Diameter(mm) | 0.12 ~0.25 |
Samples:
Service:
1.Warranty is one year and if any parts broken within one year (consumables not included and under correct operation),we will send you new one by express for your change.
2.Your mail of problem will be replied within 24 hours.
3.Our engineer is available for oversea service.
4.Cost-free training in our factory
5.OEM available
Specifications:
1.High cutting speed wire cut edm
2.High quality,High precision
3.Fast cutting speed
4.Reliable and stable
Control System ( HL, HF, AUTO-CUT)
1.Desk or vertical control cabinet
2.Industrial computer with keyboard and mouse
3.Software installed
Optional:
1.Taper (± 15°, ± 30°)
2.Linear rail
3.X,Y Servo motor
4.Triple cutting system
5.Work liquid tank with filter and high pressure pump
