New production of polyurethane timing belt, flat belt praise
Product Description

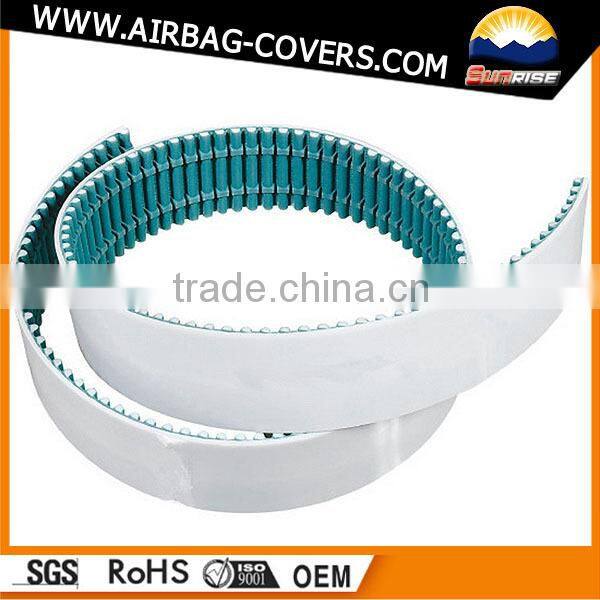

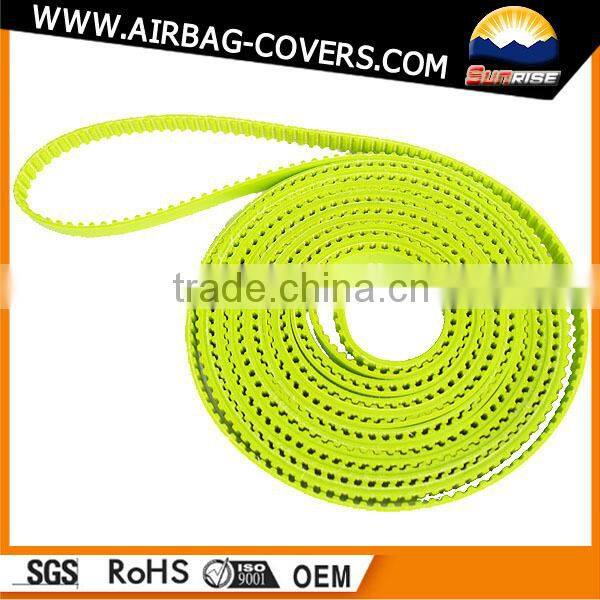

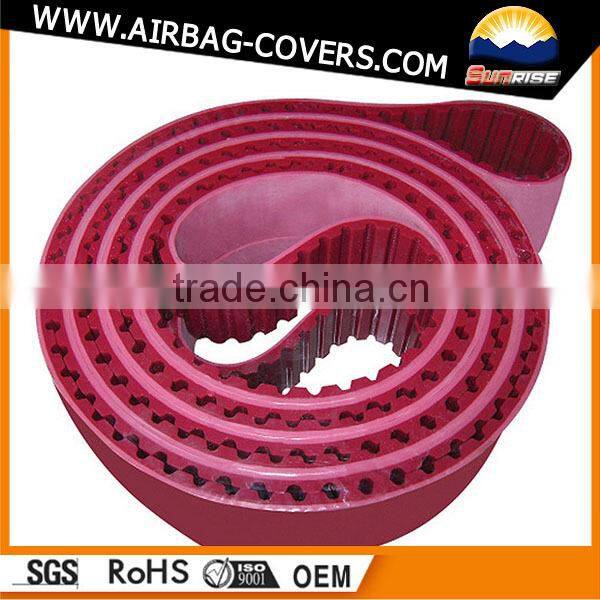

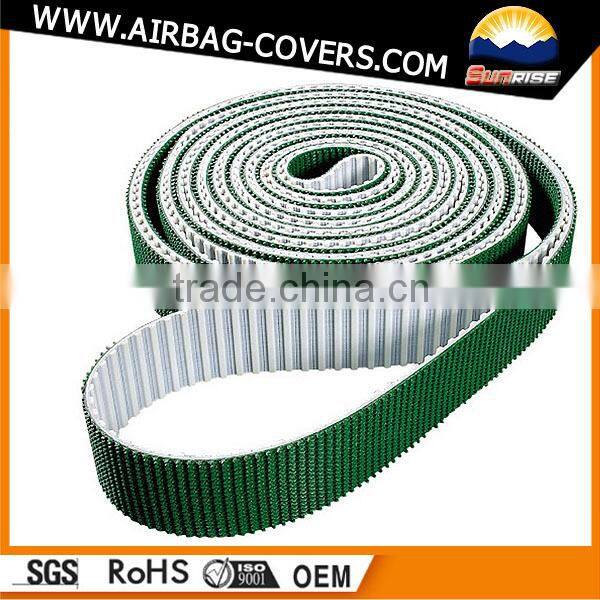

1.Industrial timing belt
Our timing belts are manufactured in imported neoprene rubber and PU materials which have various tension members by vulcanize process. High quality raw material and the advanced craft unify enable the product to have the high strength and the good flexibility. Especially suitable for power transmission systems.
Specification Availability:
T Type synchronous belt(mm)
New production of polyurethane timing belt, flat belt praise
| Type | Pitch | Tooth height | Belt thickness | Angle |
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XXL | 3.175 | 0.76 | 1.52 | 50 |
| XL | 5.080 | 1.27 | 2.30 | 50 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 2.70 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| XXH | 31.750 | 9.53 | 15.70 | 40 |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 |
| T5 | 5 | 1.20 | 2.20 | 40 |
| T10 | 10 | 2.50 | 4.50 | 40 |
| T20 | 20 | 5 | 8.00 | 40 |
| A5 | 5 | 1.2 | 2.70 | 50 |
| AT10 | 10 | 2.5 | 5.00 | 50 |
| AT20 | 20 | 5 | 8.00 | 50 |
Arc tooth synchronous belt(mm)
| Gear Code | Type | Pitch | Tooth Heigh | Belt Thickness |
| HTD | 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| 20M | 20 | 8.4 | 13.20 | |
| STD | S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.20 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
| RPP/HPPD | RP2M | 2 | 0.76 | 1.36 |
| RP3M | 3 | 1.15 | 1.9 | |
| RP5M | 5 | 1.95 | 3.5 | |
| RP8M | 8 | 3.2 | 5.5 | |
| RP14M | 14 | 6.00 | 10 |

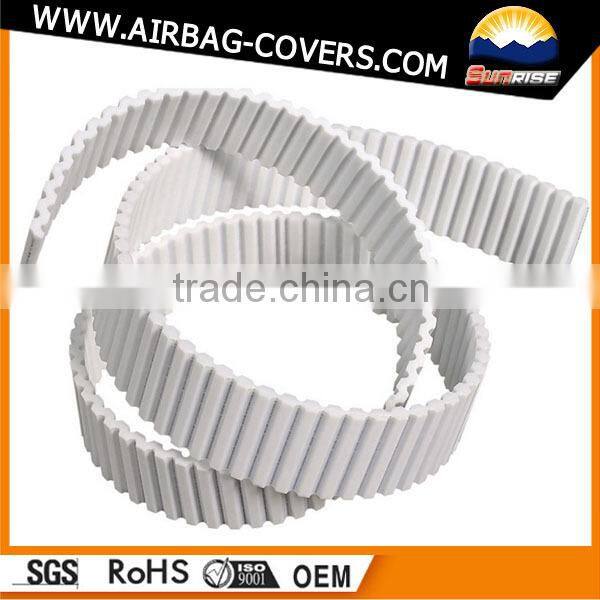

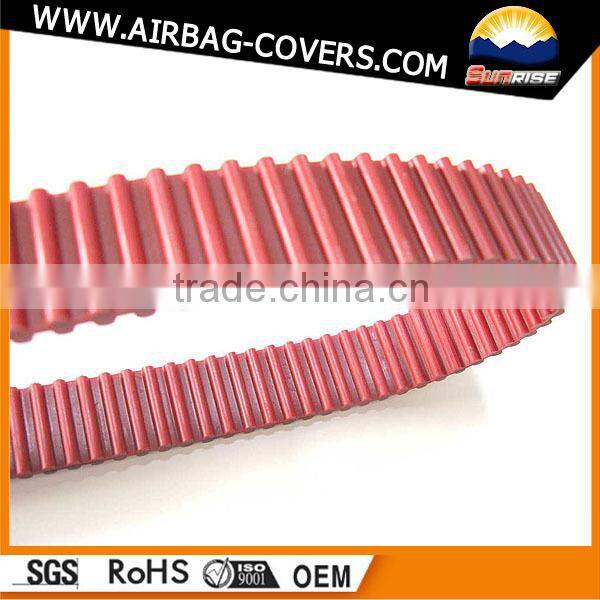

Double Sided Timing Belt(mm)
| Type | W | T |
| D-MXL | 0.508 | 1.53 |
| D-XL | 0.508 | 3.05 |
| D-L | 0.762 | 4.56 |
| D-H | 1.372 | 5.95 |
| D-XH | 2.794 | 15.49 |
| D-XXH | 3.048 | 22.11 |
| D-T2.5 | 0.6 | 2 |
| D-T5 | 1 | 3.4 |
| D-T10 | 2 | 7 |
| D-T20 | 3 | 13 |
| D-AT10 | 2 | 7 |
| HTD.DA-3M | 0.76 | 3.1 |
| HTD.DA-5M | 1.143 | 5.26 |
| HTD.DA-8M | 1.372 | 8.17 |
| HTD.DA-14M | 2.8 | 14.84 |
| HTD.DA-S8M | 1.372 | 7.48 |

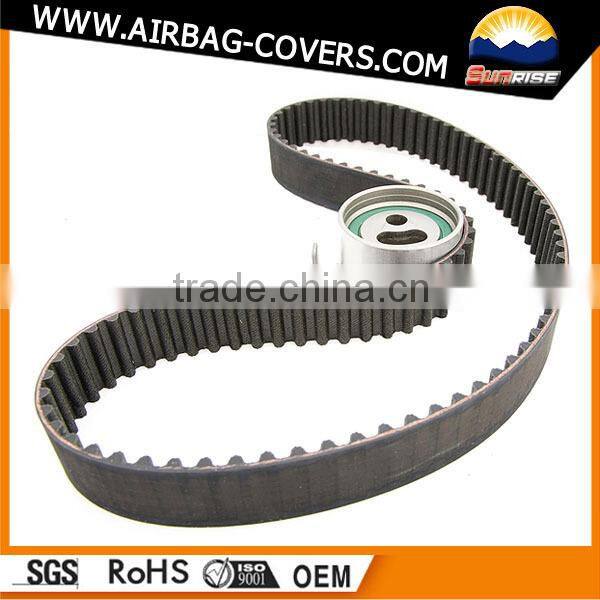

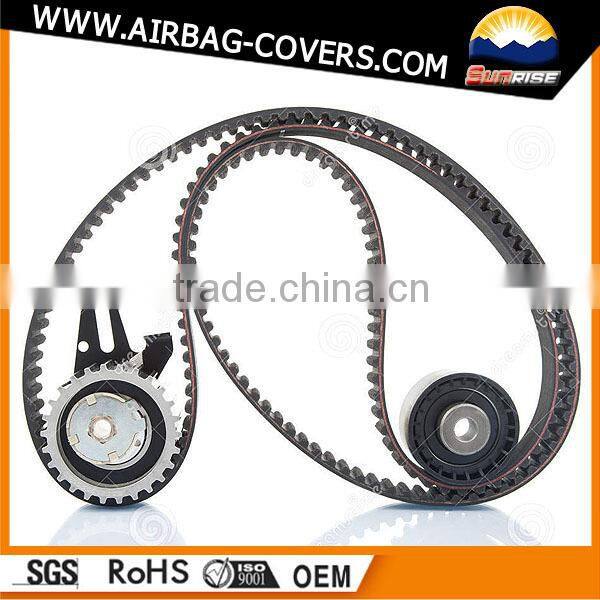

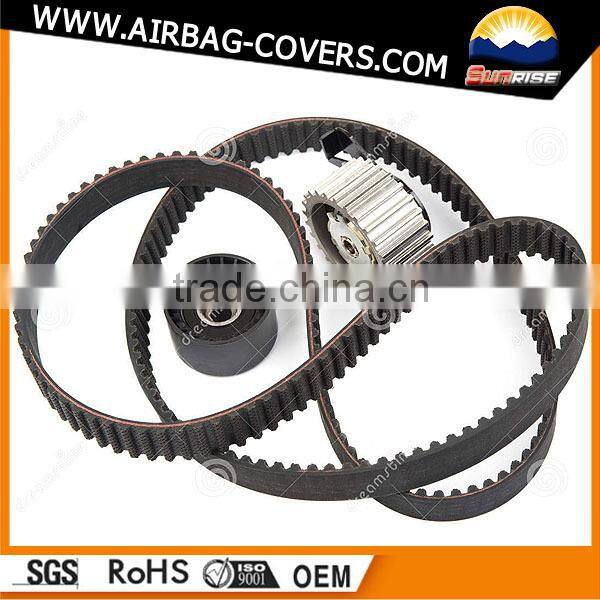

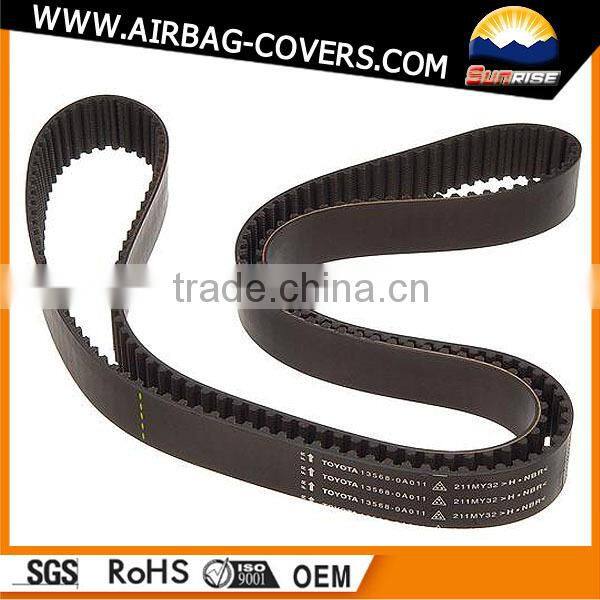

2.Automotive timing belt
Automotive timing belt uses CR or HNBR as main rubber material, produced strictly according to technical standard. The belt has the feature of perfect tooth shape, long service life, less noise, high force of driving, better driving precision, better wearable performance.
Specification Availability:
| Type | pb | ht | hs |
| MR | 9.525 | 3.54 | 5.69 |
| MY | 8.00 | 3.06 | 5.21 |
| YU | 8.00 | 3.11 | 5.20 |
| RU | 9.525 | 3.56 | 5.70 |
| ZA | 9.525 | 1.91 | 4.10 |
| ZB | 9.525 | 2.29 | 4.50 |
| ZBS | 9.525 | 2.76 | 5.06 |
| ZAS | 9.525 | 2.32 | 4.5 |
| S8M | 8.00 | 3.05 | 5.30 |
| ZLB | 9.525 | 2.7 | 5.05 |
| RPP | 9.525 | 2.25 | 4.50 |
China produced polyurethane timing belt, flat belt
Welcome inquiry questioning Price
