dc air conditioner
1.46% energy saving,IPLV(C)=5.20
2.high efficiency inverter scroll compressor
3.CE,RoHS,ISO9001 certificates
Daikin's cutting-edge technology - VRV-CMSa
1. Newly improved fans and grilles
A higher external static pressure has been achieved-from 58.8 Pa to 78.4 Pa-thanks to reduced internal pressure loss, use of the new fans and the new grilles.
New aero spiral fan and aero asymmetrical fan
The area of these new fan blades has been increased and optimised for each casing. This greatly reduces pressure loss, resulting in a higher external static pressure.
New aero asymmetrical fan
The three-bladed fan on the 10 HP unit, with a diameter of 700 mm, has been redesigned to include four blades and now has a diameter of 680 mm. Blade area has been increased by 25%.
New aero spiral fan (Powerful Dual DC fan)
In the 14 and 16 HP unit, a single fan with a diameter of 700 mm has been split into two fans with diameters of 540 mm each. Blade area has been increased by 20% to increase airflow.
Aero smooth grille
The three-dimensional, integrated, soft woven steel grilles are covered with a plastic coating that protects them from rotating elements and the possibility of fire damage.
2. Improving the high efficiency compressor to achieve a higher COP and larger capacity

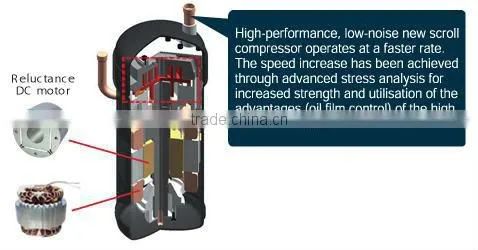

Reluctance DC scroll compressor
Daikin's unique scroll compressor minimises heat loss, and is driven by a high efficiency motor to achieve significant Energy savings.

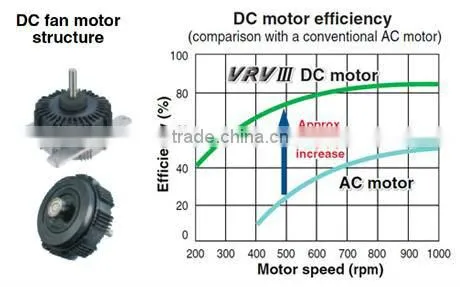

3.DC fan motor
- Across entire range of models (from 5 to 54 HP).
- Efficiency improvement by up to 40% especially at low speed.

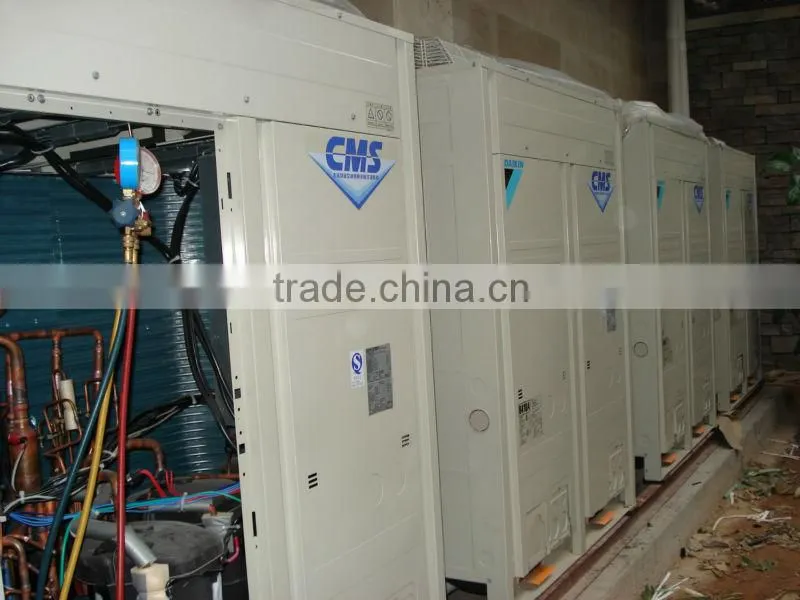

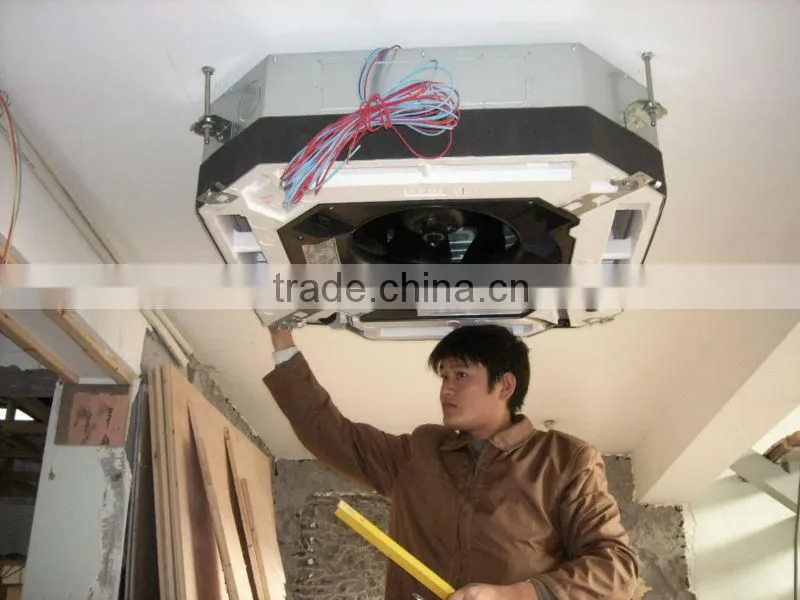

Installation Site
Specification
| Model | RZP250SY1,RZP300SY1,RHXY450/800/1250/1350SY1 |
| Cooling capacity | 25kw~135kw |
| Heating capacity | 27.3kw~150kw |
| Net weight | 195kg~807kg |
| MFA | 25~90 A |
| MCA | 18.5~78 A |
| Refrigeration | R410A |
| Operation sound level | 58~63 dB(A) |
Warranty Term
3 years for the whole unit,5 years for the compressor from the delivery time
