daikin VRV-X duct type with freedom pressure central air conditioner
1.mute operation:22dB
2.CE,ISO 9001 certificate
pany onsite checked by alibaba staff
4.short lead time
5.energy-saving

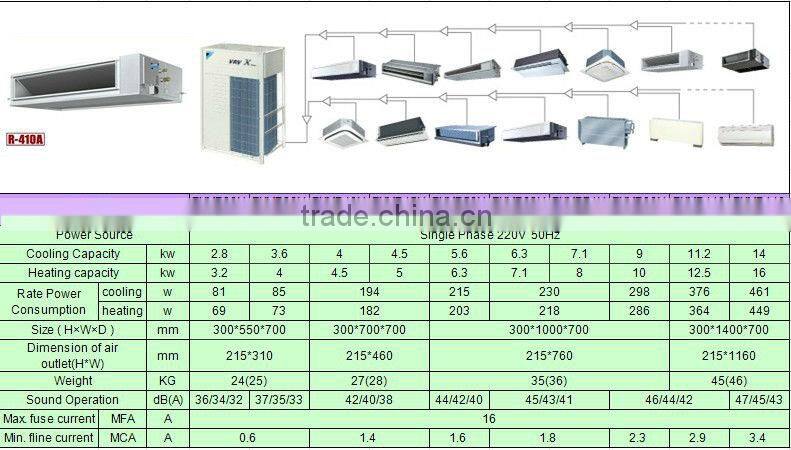

Paramter List
Product descriptions:
Middle and high static pressure allows for flexible duct design
1.A DC fan motor increases the external static pressure capacity range to include middle to high static pressures, increasing design flexibility.
30 Pa–100 Pa for FXMP28-36N(A)VC
30 Pa–160 Pa for FXMP40-45N(A)VC
50 Pa–200 Pa for FXMP56-140N(A)VC
2. All models are only 300 mm in height, an improvement over the 390 mm height of conventional models.
3. Drain pump is equipped as standard accessory with 700 mm lift.
4. Control of the airflow rate has been improved from 2-step to 3-step control.
5. Low operation sound level
6. Energy-efficient
The adopted DC fan motor is much more efficient than the conventional AC motor, yielding an approximate
20% decrease in energy consumption.
7. Improved ease of installation
Airflow rate can be controlled using a remote controller during test operation. With the conventional model, the airflow rate was controlled from the PC board. It is automatically adjusted to the range between approximately
±10% of the rated HH tap airflow for FXMP28-140N(A)VC.
8. Improved ease of maintenance
The drain pan can be detached for easy cleaning. An antibacterial treatment that uses silver ions has been applied to the drain pan, preventing the growth of slime, mould and bacteria that cause blockages and odours.
| model | FXMP112N(A)VC |
| power source | 220V/50Hz |
| cooling capacity | 11.2 kW |
| heating capacity | 12.5 kW |
| refrigeration | R410A |
| motor | DC |
| demension | 300*1400*700(mm) |
| net weight | 45/46 kg |
| gross weight | 51/52 kg |
| MCA | 16 A |
| MFA | 2.9 A |
| operation sound | 46/44/42 dB(A) |
| remote controller | BRC1C611 |
