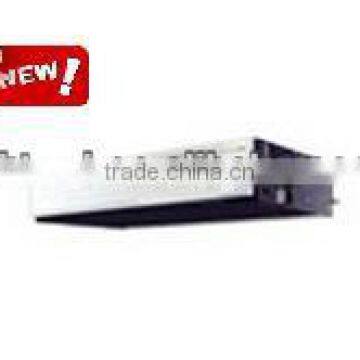

daikin VRV-X The IntelliSense 3D airflow duct type fan coil unit

Name: daikin VRV-X The IntelliSense 3D airflow duct type fan coil unit
Brand: daikin
Availability: InStock

FOB Price

USD $1 - $2,000 / Unit

25 Units(Min.Order)

Supply Ability 10000 Unit / Units per Month
Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	daikin
Place of Origin	Shanghai, China	Use	Room
Power Source	Electrical	Power Type	DC
Type	Central Air Conditioners	Cooling/Heating	Cooling/Heating
Certification	CE, Other, CE, RoHS	Capacity (btu)	24500
Voltage (V)	220	Model Number	FXDSP63ABP

Product Description

daikin VRV-X The IntelliSense 3D airflow duct air conditioner

1.mute operations:22dB
2.CE,ISO 9001 certificate
pany onsite checked by alibaba staff
4.R410A

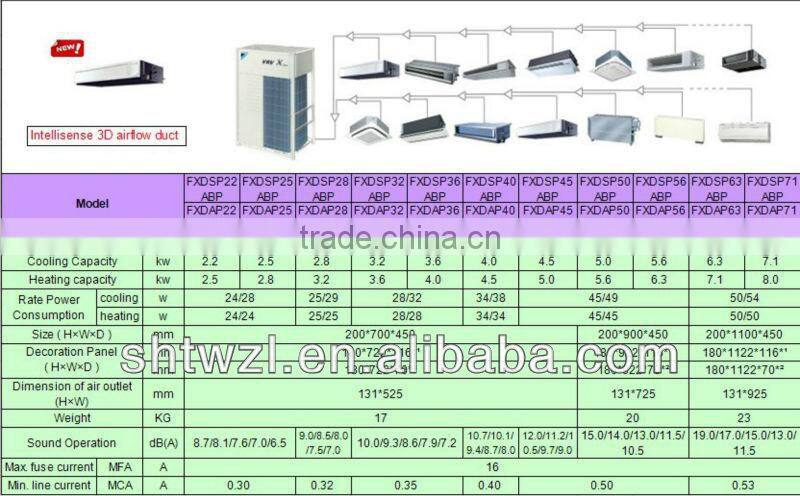

Parameter List

Product descriptions:

1.Wide selection with the inverter series

Our wide-ranged lineup meets customer needs when it comes to functions and indoor unit types.

2.Enhanced comfort with Daikin inverter

Comfortable air conditioning is achieved through variable output control made possible by the inverter, which continually maintains the set temperature while detecting load, which varies with time of day and number of room occupants.

3.Energy savings with high-efficiency inverter

The outdoor unit is equipped with a reluctance DC scroll compressor that utilizes the latest technology. It brings out the full energy-saving potential of the inverter, which controls power used in accordance with load variation.

4.Reluctance DC Scroll Compressor

Overheating losses are reduced by pressurising the area around the motor, energy saving performance in conjunction with other features.

High thrust mechanism

By introducing high pressure oil, the reactive force from the fixed scroll is added to the internal force, thereby reducing thrust losses. This results in improved efficiency and suppressed sound levels.

5.Smooth Air Inlet Bell Mouth and Aero Spiral Fan

These two features work to significantly reduce noise. Guides are added to the bell mouth intake to reduce turbulence in the airflow generated by fan suction. The Aero Spiral Fan features fan blades with the bent blade edges, further reducing turbulence.

6.DC fan motor

model	FXDSP63ABP
power source	220V/50Hz
refrigeration	R410A
motor	DC
demension	2001100450(mm)
net weight	23 kg
gross weight	32 kg
MCA	16 A
MFA	0.53 A
operation sound	19.0/17.0/15.0/13.0/11.5 dB(A)
wireless remote controller	BRC4L611

1)Daikin factory(in Shanghai):

2)Daikin R&D department:

5)we have won many projects:
