YTS-300 Full Automatic Marble Granite Profiling and Polishing Machine for Borders and Frames

YTS-300 Full Automatic Marble Granite Profiling and Polishing Machine for Borders and Frames thumbnail-1
YTS-300 Full Automatic Marble Granite Profiling and Polishing Machine for Borders and Frames thumbnail-2
YTS-300 Full Automatic Marble Granite Profiling and Polishing Machine for Borders and Frames thumbnail-3
YTS-300 Full Automatic Marble Granite Profiling and Polishing Machine for Borders and Frames thumbnail-4
YTS-300 Full Automatic Marble Granite Profiling and Polishing Machine for Borders and Frames thumbnail-5
YTS-300 Full Automatic Marble Granite Profiling and Polishing Machine for Borders and Frames photo-1
YTS-300 Full Automatic Marble Granite Profiling and Polishing Machine for Borders and Frames photo-2
YTS-300 Full Automatic Marble Granite Profiling and Polishing Machine for Borders and Frames photo-3
YTS-300 Full Automatic Marble Granite Profiling and Polishing Machine for Borders and Frames photo-4
YTS-300 Full Automatic Marble Granite Profiling and Polishing Machine for Borders and Frames photo-5
US$ 30,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Polishing Machine
Use:
Marble
Contact Supplier Request Quote Chat Now
Foshan Nanhai Yongtao Machinery And Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Polishing Machine
Use Marble
Production Capacity 0.6-1.5m/min
Place of Origin Guangdong, China
Brand Name YONGTAO
Model Number YTS-300
Voltage 380V,415V
Power(W) 50KW
Dimension(L*W*H) 5300MM X 2000MM X 1800MM
Weight 5,000KG
Certification CE, ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description



YTS-300(3+5) Full Automatic Stone Profiling and Polishing Machine


Products Introduction:
It is the newest products. It is a integrated machine of heteromorphism and polishing for ceramics, stone, marble, artificial stone, quartz stone and agglomerated stone, which consist of rough grinding(molding) and polishing. The structure is delicate and the performance is stable. This machine uses different shaping wheels which accords to the requirement and fixing grinding method. The loading is automatically controlled to compensate the polishing so that the shock damage will be less. This machine greatly increases the processing efficiency and brings clients good economic benefits.

Technical Parameters:

Number

Part of the machine

Units

Products parameter

1

Nos. of the shaping head

PCS

4

2

Motor power of shaping head

KW

7.5

3

Dia of shaping head

MM

180-200

4

Nos. of polishing head

PCS

4

5

Motor power of polishing head

KW

5.5

6

Dia of polishing head

MM

150-220

7

Maximum Working Length

MM

250

8

Working Width

MM

30-400

9

Working Thickness

MM

10-70

10

Working Speed

M/MIN

0.3-3.0

11

Total Capacity

KW

58.63

12

Electricity Consumption

KW

50

13

Water Consumption

L/MIN

500

14

Machine Size

A*B*H

10.3*2.0*1.8

15

Machine Weight

T

5

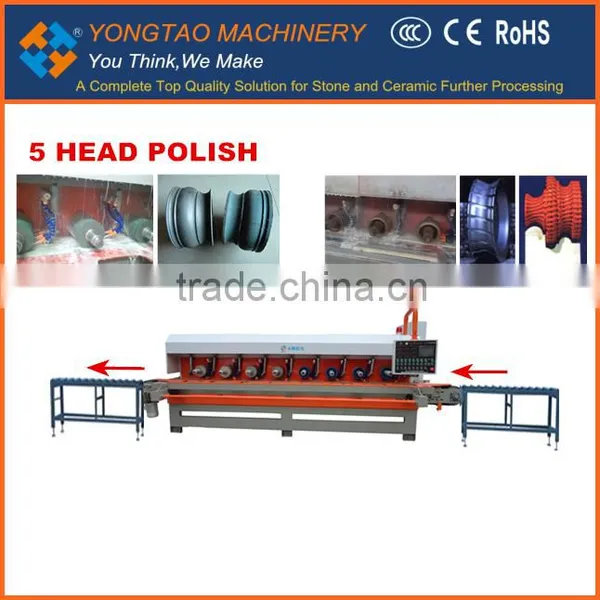

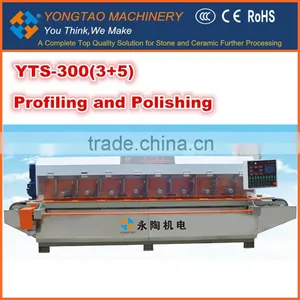

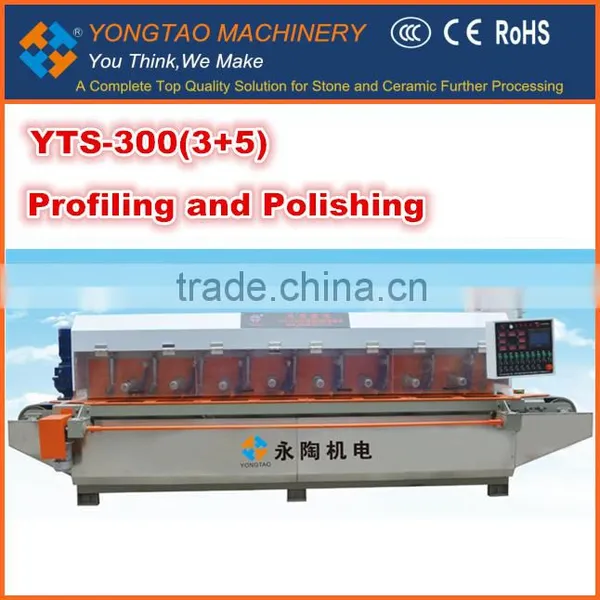

Machine Picture:

YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames

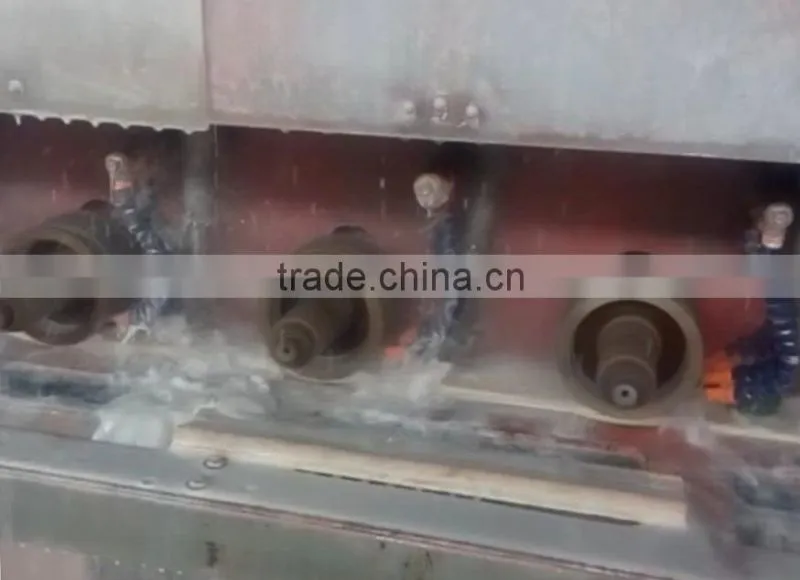

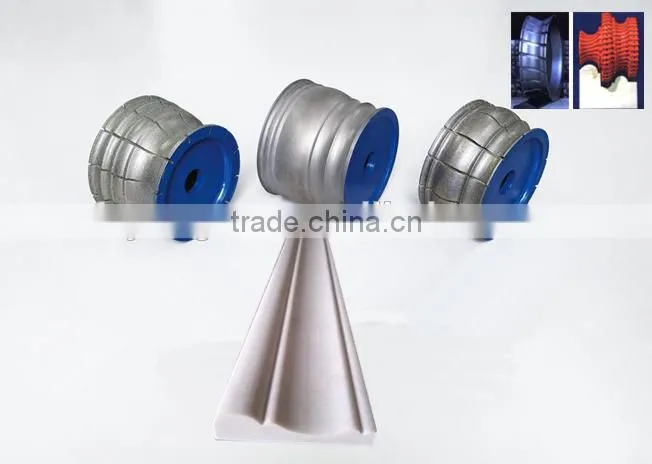

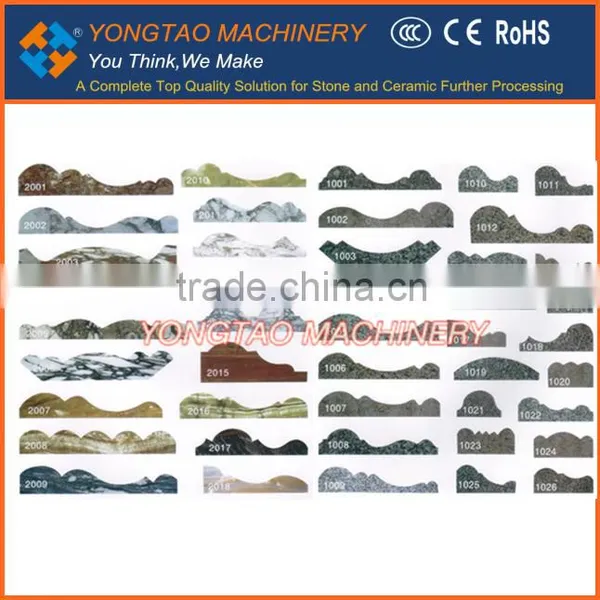

Profiling Picture:
YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames
YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames

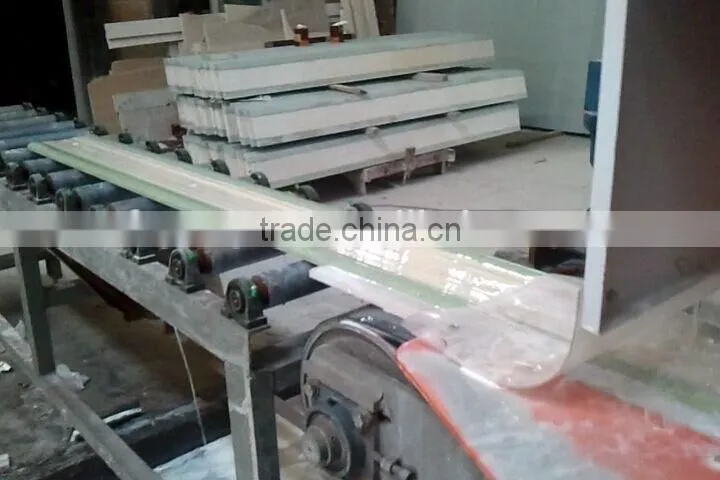

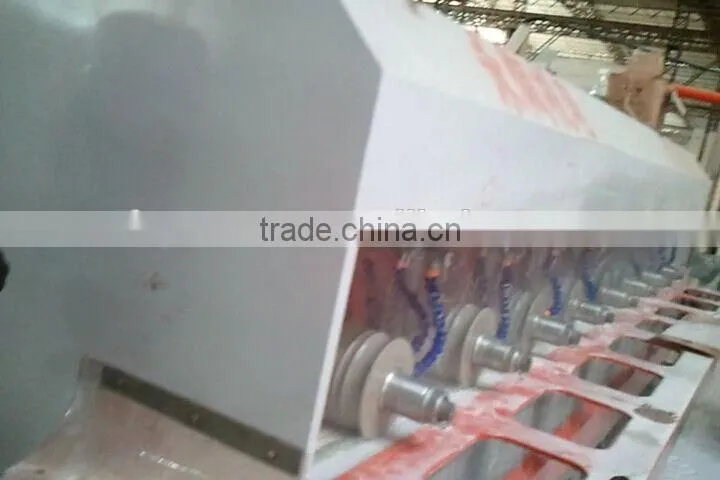

Polishing Pictures:
 YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames
YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames

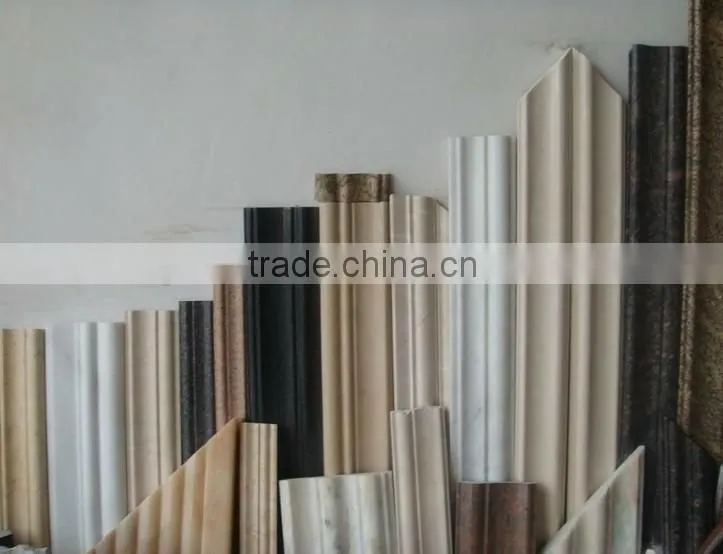

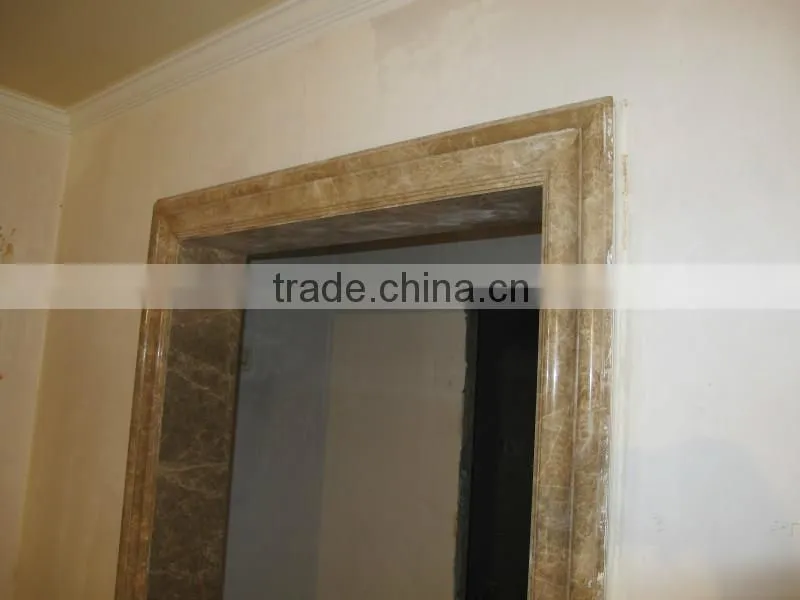

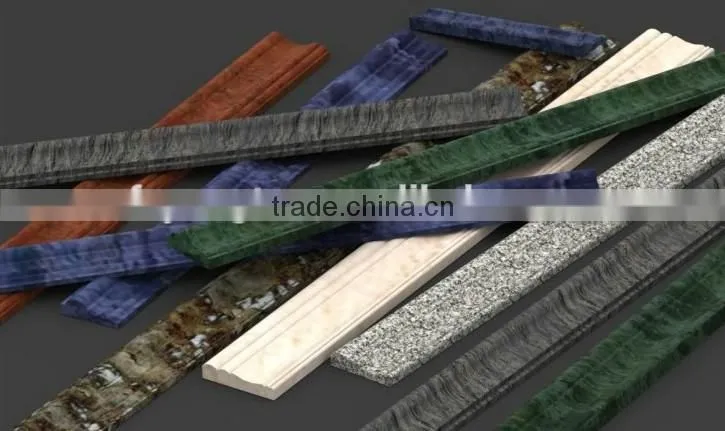

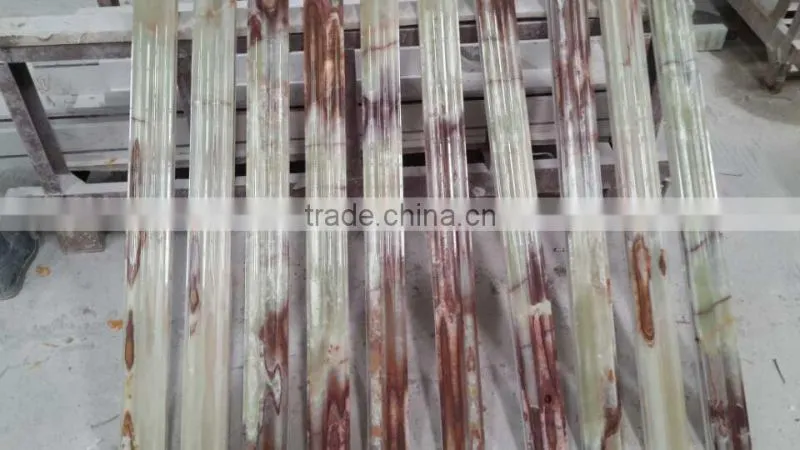

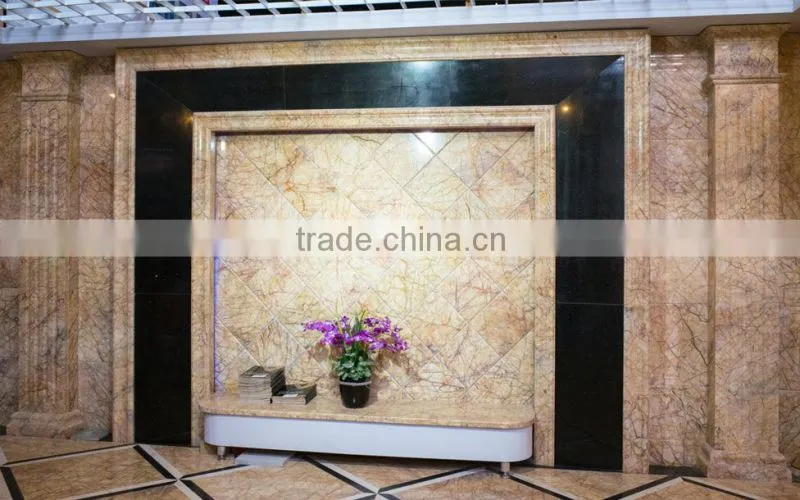

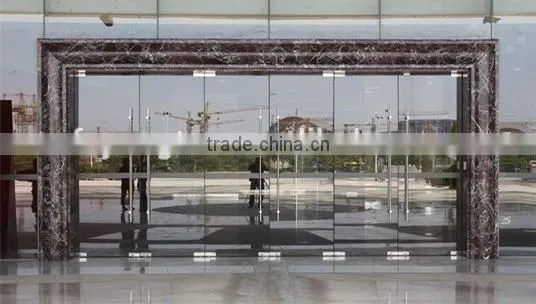

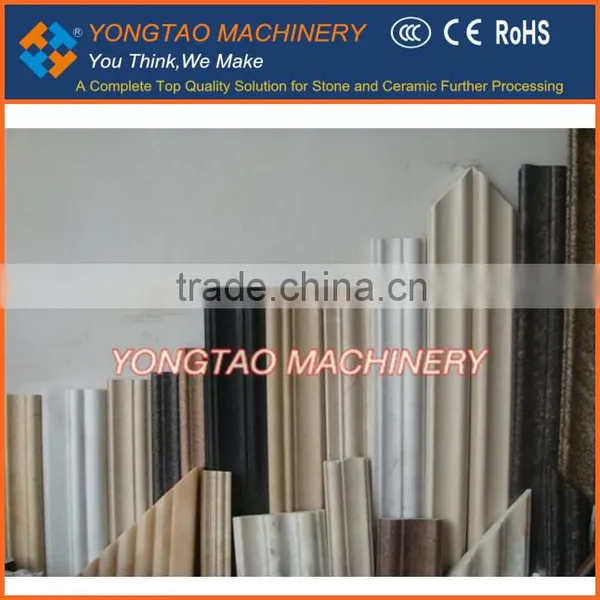

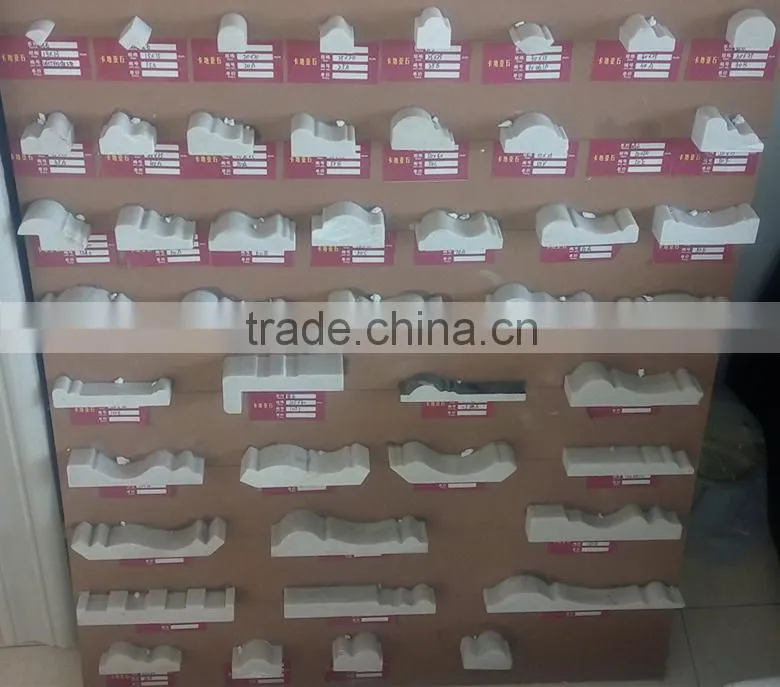

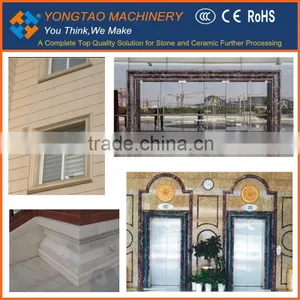

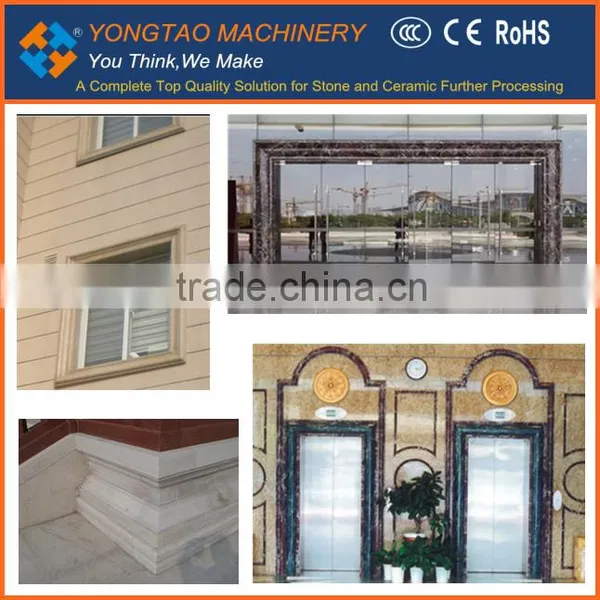

Processing Effect:
YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames
YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames
YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames
YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames
YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames
YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames
YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames

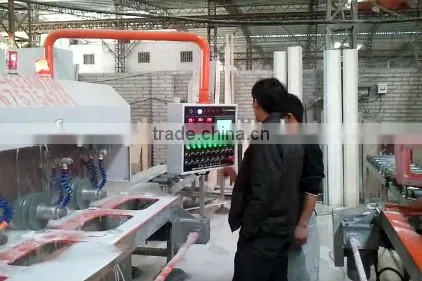

 Factory Views:
YTS-300 Full automatic marble granite profiling and polishing machine for borders and frames
YTS-300 Full automatic marble granite profiling and polishing machine for borders and framesYTS-300 Full automatic marble granite profiling and polishing machine for borders and frames
