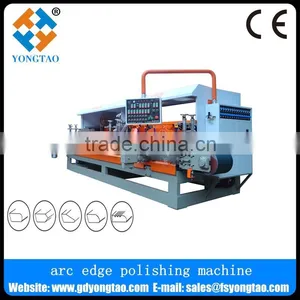

14 grinding head arc polishing machine
Main application :LTE - 1200 type 14 pigs arc polishing machine, are our latest dedicated to various ceramics and marble rounded edge edging grinding &polishing production line.
Performance characteristics :The equipment surface machining processing speed, good quality and high polished, straightness evenly, and convenient operation, safe and reliable.
Product features

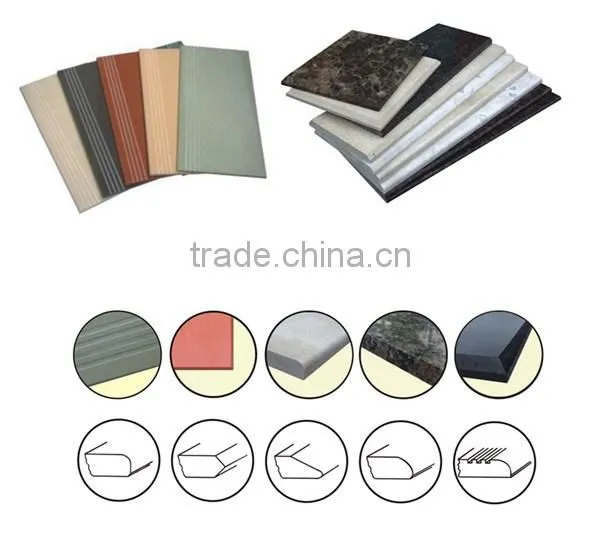

Edge grinding, chamfering (30 degrees, 45 degree, 60 degree), the base, circular grinding, polishing (arc polishing, polishing, 45 degrees) slot (open router, anti-skid slot, such as porcelain stone material processing
Technical parameters :
14-16 grinding head arc polishing machine | |||
List |
designation |
unit |
Technical parameters |
1 |
Conveyor belt specification |
mm |
300 |
2 |
Polishing grinding head number |
a |
14-16 |
3 |
Polishing grinding head diameter |
mm |
150 |
4 |
Chamfering edge grinding number |
a |
6 |
5 |
Chamfering edge grinding diameter |
mm |
150-200 |
6 |
Edging grinding number |
a |
1 |
7 |
Edging grinding wheel diameter |
mm |
200 |
8 |
Open antiskid slot number |
a |
3-4 |
9 |
Slotting blade diameter |
mm |
150 |
10 |
Work width |
Mm |
70-1200 |
11 |
Polishing speed |
Mm/min |
1.5 - 8 |
12 |
Processing brick thickness |
mm |
6-20 |
13 |
Total power |
kw |
36.7 |
14 |
consumption |
L/min |
490 |
15 |
Power consumption |
KW/H |
15 |
16 |
Shape dimension |
L*W*H |
6.5*2.2*1.8 |
17 |
weight |
T |
6.5 |
Our head's engineers have travelled more than 27 countries to offer after sale service, their hard working, good technology, and the professional dedication moved our custofmers deeply.
On time!
Professional !
Quickly solve problems!
Yong tao mechanical and electrical equipment co., LTD., located in nanhai district, foshan city, is the municipal government of foshan enterprises, high-tech enterprises, the foshan ceramics, stone machinery top ten enterprise, quality trustworthy unit, AAA grade credit enterprise, the company has a number of technology patents, products are exported to Europe, southeast Asia, India, Africa, Oceania, South America, Malaysia, Russia, the world, by the praise of friends, good product ceramic machinery, large quality trustworthy enterprise, brand worth you choose. Yong tao mechanical and electrical equipment co., LTD., located in nanhai district, foshan city, is a collection of ceramics, stone processing equipment research and development, manufacturing, sales and after-sales service. Has a group of experienced engineers and professional and technical personnel, and has perfect mechanical processing capacity.
