High Quality Low Price Sauce Pouch Packing Machine
Product Description
Specification
Automatic adjustment of pouch size and filling range.
PLC Control system.
Technical parameters
| Product name | liquid packing machine |
| Filling method | piston pump |
| bag shap | 3 or 4 side sealed |
| bag size | L40-150mm W15-120mm |
| capacity | 0-50ml/bag |
| speed | 30-60bags/min |
| control style | PLC control+ English screen |
| material | stainless steel |
| voltage | 220v/50HZ |
| power | 1.3KW |
| weight | 200KG |
| Dimension | 650*600*1600mm |

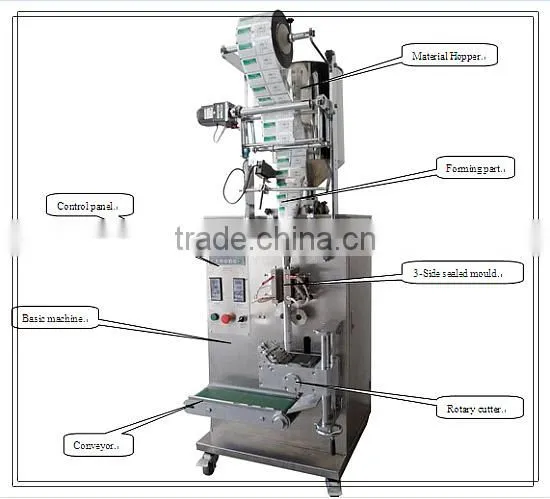

( Sauce Pouch Packing Machine)Mail parts:
Applicationst
This machine can be used to pack the liquid or paste of foodstuff,chemical,and cosmetion,such as shampe,edible oil,tamato paste,suace,ketchup,juice etc.
Function
- This machine can finish measuring, pulling, feeding, forming, date printing, cutting automatically
- Adopts the stainless steel 201 for the machine's mainframe, and stainless steel 304 for the parts touching supplies
- Fine packaging performance ,low noise ,clear sealing texture and strong sealing performance.
- It also can mixed stowage materials with different counting hoppers or packing more materials by one kind of hoppers
The working process:
Automatic detection - automatic weigher - automatic filling - automatic bagging - automatic bag sealing - date printing - automatic cutting - Finished products convey.

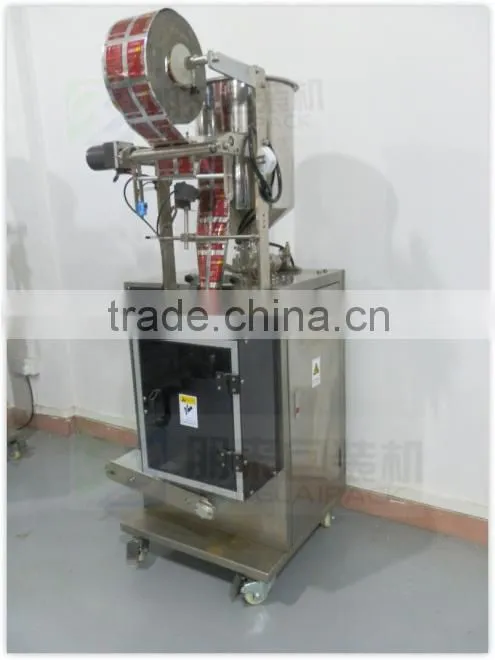

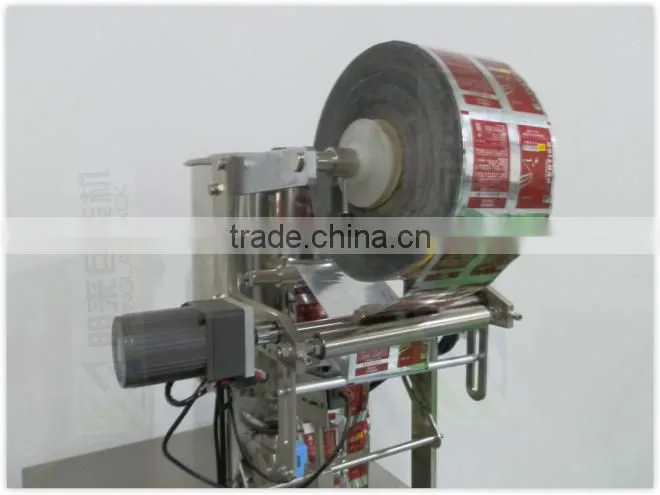

Actual picture shows ( Sauce Pouch Packing Machine)
Sauce Pouch Packing Machine sample bag as follows
---------------------------------------------------------------------------------------------------
Sample bags as follows
Packging and Shipping
Packed in plywood case.as following picture.
Our services
About Our service
1.When we get your inquiry, we’ll recommend you the exact suitable machine for you.
2.We’ll reply to your email within 12 hours
3.We provide responsible and complete after-sales service.
4.Technical support, we can offer video for debugging
3.By the way,We can purchase packging film for you, according to your needs and requirements.
.
About warranty:
1.one year warranty,within warranty period ,we will provide free parts for replacement,if any problem belongs to us (delivery cost paid by customer)
2.if there are any malfunction for the machine.we will try our best to solve the problem within 24 hours
3.We can provide installation and maintenance service at your place if you need.
Company information
Guangzhou Penglai Packing Machinery Co.,Ltd are especially engaged in designing, R&D, manufacturing and selling various packing machines. Our main products includes: granule packing machines, liquid packing machines, powder packing machines, horizontal packing machines, counting & packing machines, filling machines, labelling machines, etc
