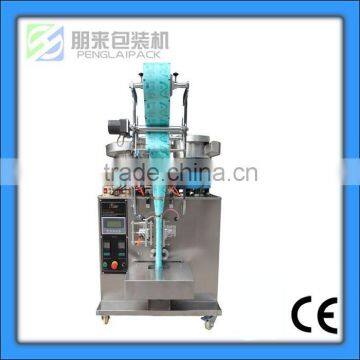

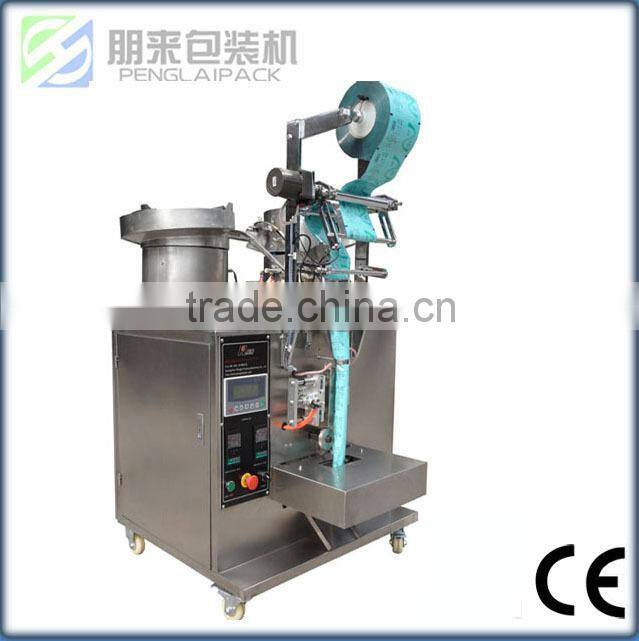

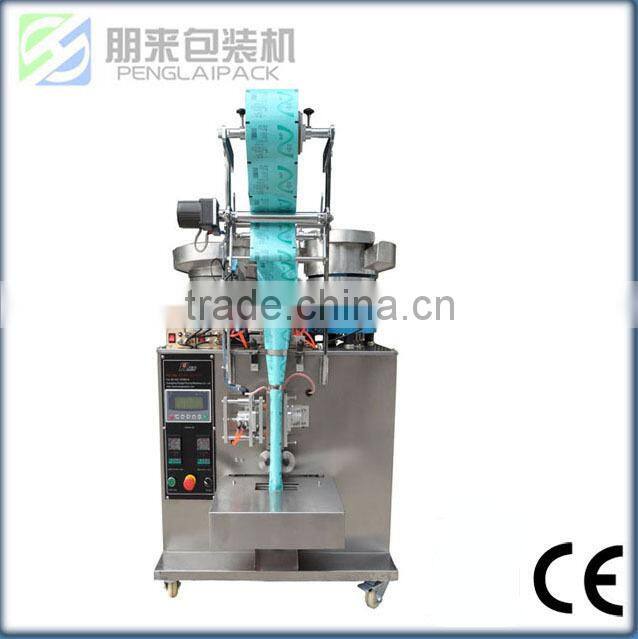

Guangzhou Penglai fully automatic screw counting packing machine
Brief Introduction
This fully automatic counting and packing machine adopts the advanced PLC and photoelectric control system, touch screen in both Chinese and English, and automatic completion of measuring, bag making, filling, sealing, cutting and printing codes.
This machine is a combined packing equipment, one part is for counting and filling with 1-4 vibration filling plates according to customers’ specific needs, and customer can use one, two, three separately; the other part is for making bags and finish the packing part.

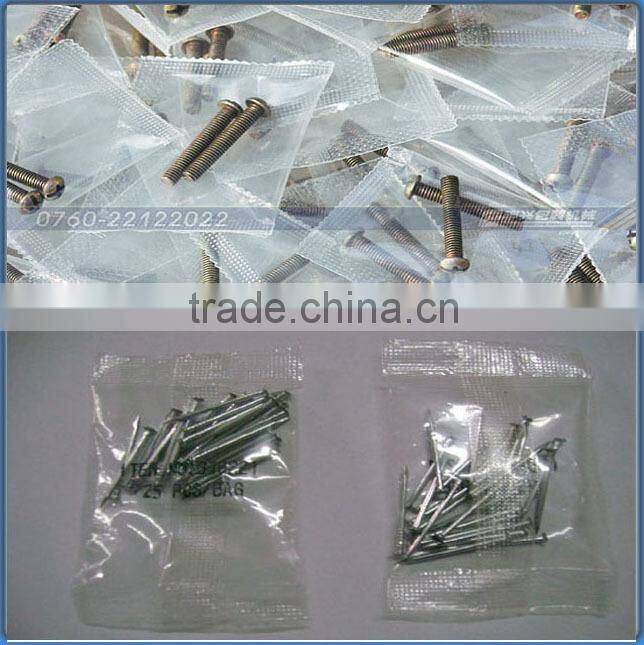

This machine can be used to pack foods, electric parts, and small hardware, etc, such as candies, peanuts, pills, troches, capsules, tablets, small biscuits, and other irregular products like nails, bolts, nuts, electric parts, etc.
Features:
1. adopts the advanced PLC and photoelectric control system, touch screen in both Chinese and English, and automatic completion of measuring, bag making, filling, sealing, cutting and printing codes.
2. adopts the stainless steel 201 for the machine's mainframe, and stainless steel 304 for the parts touching supplies, which has a very good effect of anti-rusting, so guarantee the products clean and sanitary, and also greatly prolong the machine's life-span.
Technical Parameters
Item |
fully automatic screw counting packing machine |
Model |
PLS-100-2 |
Filling |
Vibration plate, photocell eye counting |
Bag style |
Back sealed bags |
Volume/bag |
1-100pcs/bag |
Bag size |
Bag Length 50-150mm, bag Width 30-100mm |
Packing speed |
20-50 bags/min |
Control system |
PLC+ touch screen |
material |
stainless steel |
voltage |
220V, 50Hz,1P/ 110V, 60Hz, 1P |
Weight |
G.W.250kg |
Dimension |
L1200mm*W1000mm*H1600 (mm) |
Pneumatic |
0.6Mpa |
Power |
3.0KW |
Film material |
Paper/polyethylene; cellophane/polyethylene; Plated aluminum/polyethylene; BOPP/polyethylene; nylon/polyethylene |
supplies |
foods, electric parts, and small hardware, etc, such as candies, peanuts, pills, troches, capsules, tablets, small biscuits, and other irregular products like nails, bolts, nuts, electric parts, etc. |
Main functions |
Automatically count, measure, make bags, fill, seal, cut and print codes. |
Pictures
Packed in plywood case. Package size about 1350*1250*1800mm, needs about 2CBM space for shipping.
1. When we get your inquiry, we will recommend you the exact suitable machines for you according to your specific needs and requirements, and then do the proposal for you, and also with the whole packing line if you need.
2. We will always provide you the best quality products at our best service. Your satisfaction is always our pursuit.
3. We provide responsible and complete after-sales service.
a. For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.
b. We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours. If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare parts. We provide technical support for our machines for life-long time.
c. We can provide installation and maintenance service at your place if you need.
We, Guangzhou Penglai Packing Machinery Co.,Ltd are especially engaged in designing, R&D, manufacturing and selling various packing machines. Our main products includes: granule packing machines, liquid packing machines, powder packing machines, horizontal packing machines, counting & packing machines, filling machines, labelling machines, etc.
We support your order by trade assurance, which greatly guarantee goods delivery time and goods quality, and
also guarantee customer's payment.
