2.0mpa ppr names pipe fittings
pr Joint Fitting 45 Degree
tom 45 degree
2.0mpa ppr names pipe fittings e
| picture | name | Specification(mm) | Pcs/Ctn |
|

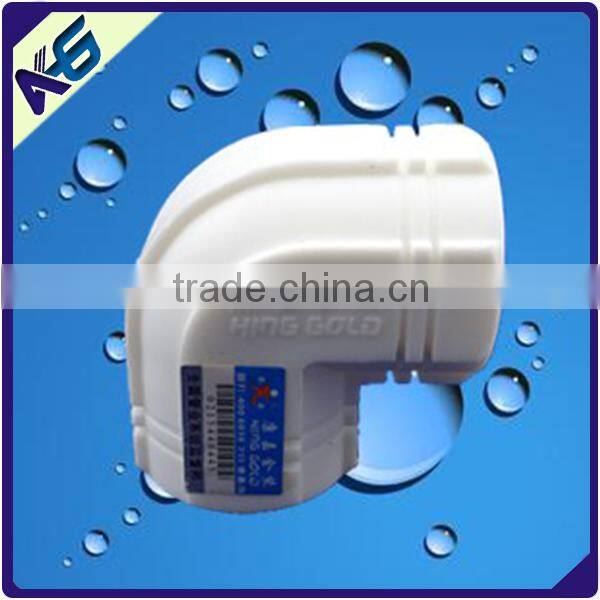

90°Elbow | 20 | 52 |
| 25 | 30 | ||
| 32 | 18 | ||
|

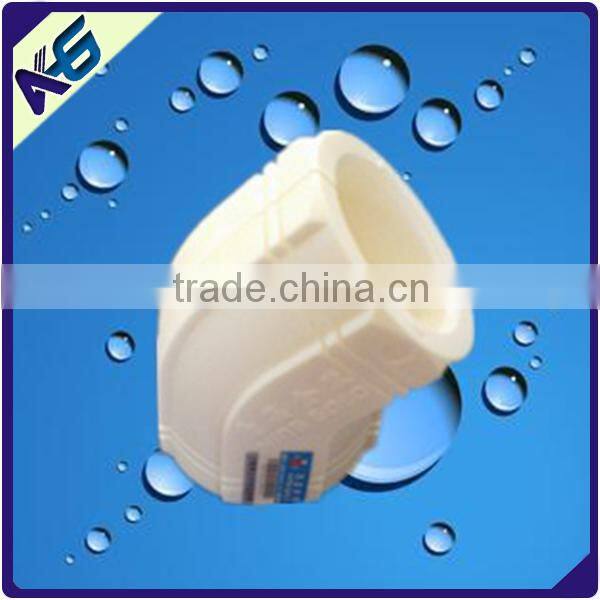

45°Elbow | 20 | 75 |
| 25 | 40 | ||
| 32 | 24 | ||
|

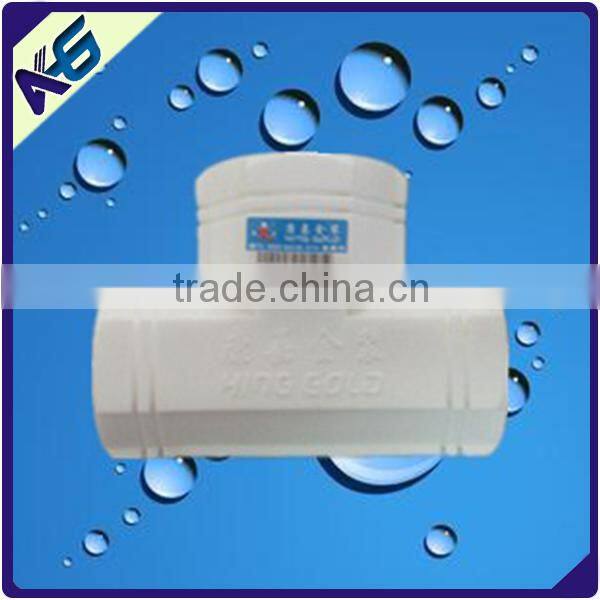

Equal Tee | 20 | 40 |
| 25 | 20 | ||
| 32 | 15 |
pr
performance figure
| TERM | FINGER | TESY METHOD |
| DENSITY g/cm²(20℃) | 0.89-0.91 | GB/T1033 |
| Thermal Conductivity (W/m.k)(20℃) | 0.23-0.24 | GB/T3399 |
| coefficient of linear expansion % | 0.14-0.16 | GB/T1036 |
| Gpa N/mm²(20℃) | 800 | GB/T1040 |
| Mpa | ≥20 | GB/T1040 |
| longitudinal reversion(135℃,2H) | ≤2% | 6671.3 |
| hydraulic test | 20℃,1H,16.0Mpa,No break, no leakage. | GB/T6111 |
| 95℃,22H,4.2Mpa,No break, no leakage | ||
| 95℃,165H,3.8Mpa,No break, no leakage |
2.0mpa ppr names pipe fittings w
PPR pipe and fitting Features:
n
1. Light weight
The weight per unit is only 1/6 of the cast-iron pipes,so the transport is quite convennient.
2. High strength
The strength can get to 45Mpa.
3. Low resistance
The internal surface of the ppr 45 degree Elbow is smooth with no dirt and no blickage.The loss is 30% lower
than that of the cast-iron ppr 45 degree Elbow .
4. Corrosion resistance
It has a good quality of acid resistance,alkali resistance,chemicals resistance and electro-
Chemistry resistance,so the point of corrosion will not occur during the use.
5. Easy installation
It adopts the glue and soft joining.Therefore,the installation is quite easy and the sealing is
reliable.
6. Long service life
The service time can reach more than 50 years nuder the normal working pressure.
7. Low cost
The cost of the transport and installation is low,and the total engineering cost is 30-40% lower than of the cast-iron ppr 45 degree Elbow .
8. Innocuity and sanitation
The product conforms to the standards of the drink water and water transported has no second pollution.
PPR fittings:
PPR Coupling PPR 90 Degree Elbow
PPR 45 Degree Elbow PPR Tee
PPR Reducing Coupling PPR Cap

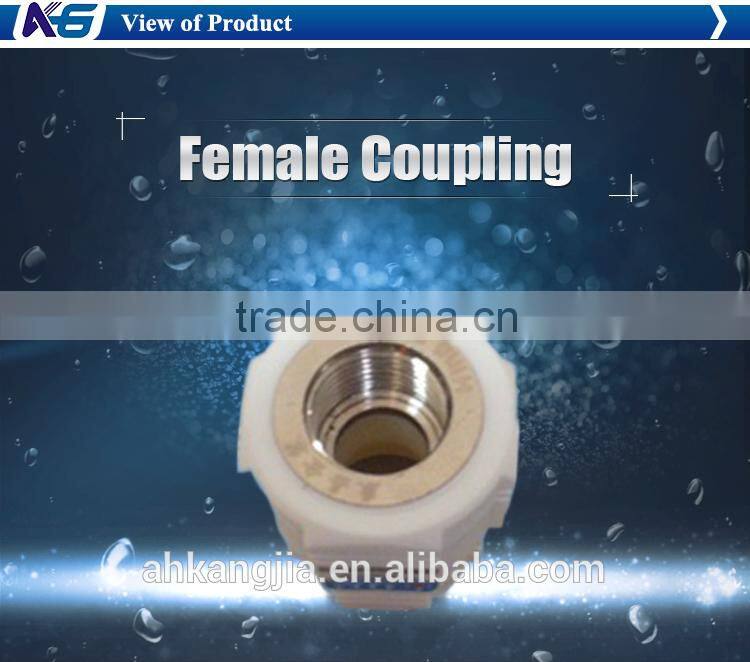

PPR Female Coupling with Brass PPR Male Coupling with Brass
PPR Female Elbow with Brass PPR Male Elbow with Brass
PPR Reducing Tee PPR Union

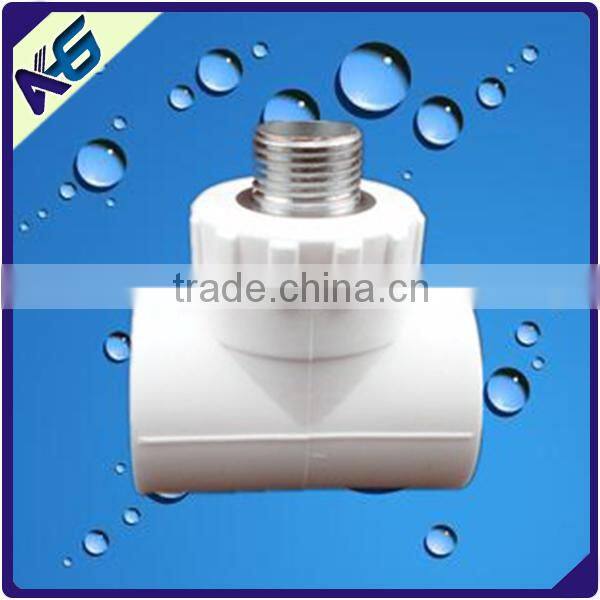

PPR Female Tee with Brass PPR Male Tee with Brass
PPR Male Union with Brass PPR Female Union with Brass
PPR Ball Valve PPR Concealed Valve
PPR Gate Valve PPR Stop Valve
2.0mpa ppr names pipe fittings e
1 .We are one of the three largest manufacturers in China.
2. We have skilled engineers and excellent after-sale service network .
3. Fast deliveryof ppr 45 degree Elbow .
4 .IS09001: 2000, IS014001: 2004,OHSMS 28001: 2001 certificates available .
5. We will do our best to help our customers,and will accept any suggestion
of our products.
Anhui Kangjia Plastic Building Materials Co., Ltd.
Add: Industrial Zone, Gangji, Changfeng, Hefei, China.
Post Code: 231137
Tel: +86-551-62720156 Fax: +86-551-66773883
Skype: lancelot0204_1
Website: Http://
more products,pls click there: http://ahkangjia.en.china.cn/
2.0mpa ppr names pipe fittings w
