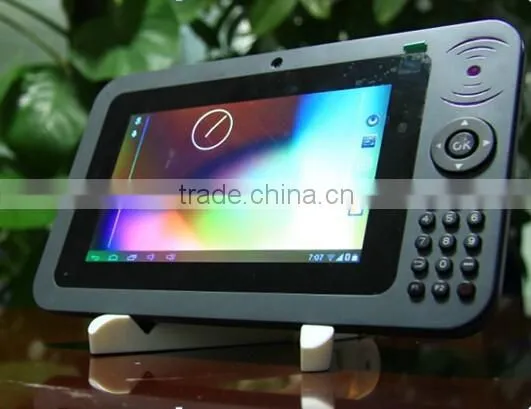

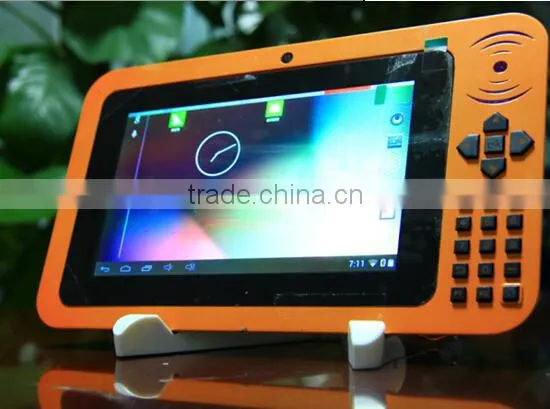

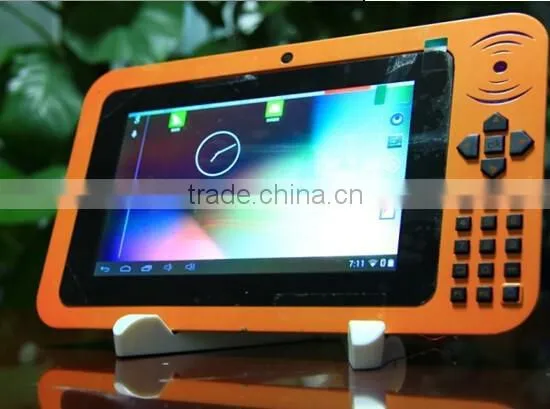

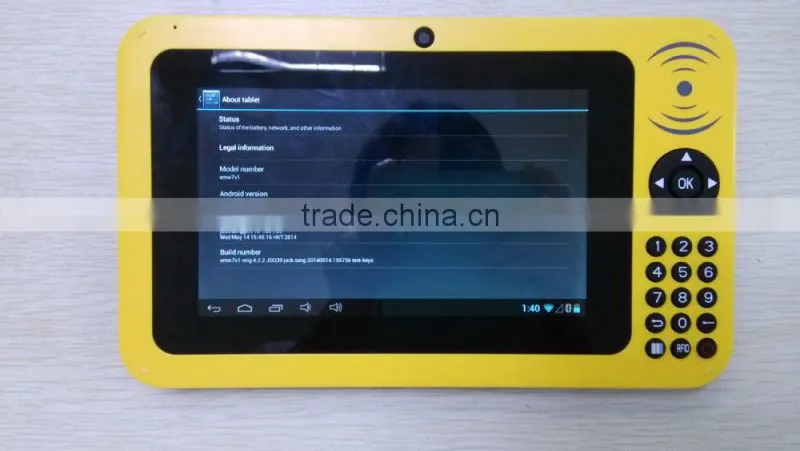

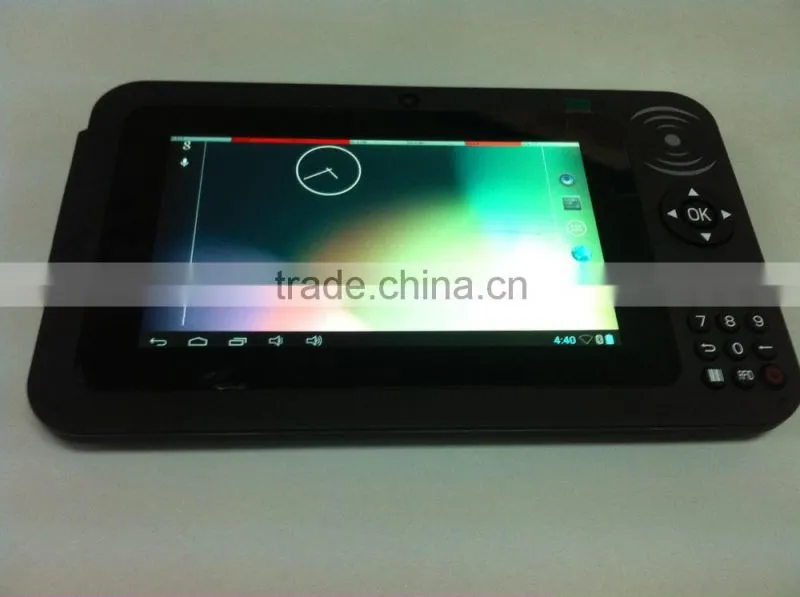

7 Inch NFC 3G Tablet PC With RK3168 Quad-core
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 7"
Processor Main Frequency:
RK3188/RK3188-T (Quad-core cortex-A9)
Payment & Shipping
Payment Methods:
Port of Shipment:
Luohu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
9.7 Inch Quad Core NFC Tablet PC With Chip RK3188 and PN544NegotiableMOQ: 1 Unit -
Brilliant 7 Inch 3G Dual Core NFC Tablet With MTK 6572 and PN544 ChipNegotiableMOQ: 1 Unit
-
9.7inch RK3188 1.6ghz Quad Core NFC Tablet A/b/g/nNegotiableMOQ: 1 Unit
-
2015 10 Inch MTK8382 Quad Core TabletNegotiableMOQ: 1 Piece
-
Intel Atom Z3735G Quad Core 1.33GHz 8 Inch 3G TabletNegotiableMOQ: 1000 Pieces
Products Status
Stock
Screen Size
Other, 7"
Processor Main Frequency
RK3188/RK3188-T (Quad-core cortex-A9)
Hard Drive Capacity
8GB
Memory Capacity
1GB
Touch Screen Type
Capacitive Screen
Display resolution
1024x600
Operating System
Other, Andriod 4.2/Andriod 4.4
Weight
510g
Place of Origin
China
Brand Name
OEM
Model Number
NFC-727
Color
Black, Gray, Orange, Yellow
Battery Life
5-8 hours
Product Description
| System Physical Standard Configuration | ||||||
| Type | Details | Descriptions | ||||
| Product Form | Product Form | Straight Plate | ||||
| Dimensions | 241*145*16/22mm 510G | |||||
| LCD | Screen Size | 7'' 16:9 | ||||
| Screen Resolution | 1024x600 IPS/TN | |||||
| TP | Touch Module | Capacitive | ||||
| Battery | Type | Lithium-ion polymer battery | ||||
| Capacity | 3.7V/5000mAH | |||||
| Endurance | 4-8 Hours | |||||
| System hardware configuration | ||||||
| Type | Details | Descriptions | ||||
| CPU | Type | RK3188/RK3188-T (Quad-core cortex-A9) | ||||
| Speed | 1.6GHz/1.4GHz | |||||
| GPU | Type | Mali-400MP4 | ||||
| Speed | 533MHz | |||||
| Multi-media (Hardware decoding) |
Photo Viewer | BMP, JPG, GIF, PNG | ||||
| Video Format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | |||||
| Audio Format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | |||||
| RAM | Capacity | 1GB DDR3(2GB DDR Optional) | ||||
| ROM Flash | Capacity | 8GB(4GB/16GB/32GB optional) | ||||
| Camera | Front Facing | 0.3MP | ||||
| Rear Facing | 2.0MP/5.0MP (optional) | |||||
| Speaker | Size | Built-in 8Ω/1W speaker x2 | ||||
| G-sensor | Built-in | Gravity acceleration sensor | ||||
| Network Connections | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI module | WIFI 802.11b/g/n+BT | ||||
| 3G | Built-in | WCDMA/EVDO(optional) | ||||
| GPS | GPS Module | Supportive(optional) | ||||
| Interface Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Memory card socket | External memory | Support SDHC/SDXC | ||||
| USB interface | Data transfer supportive | USB OTG | ||||
| Headphone jack | Music output | 3.5mm standard headphone jack | ||||
| 3G interface | SIM interface | Optional | ||||
| DC connector | Power | 2.5MM power connector | ||||
| Necessary Accessories | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | Standard Configuration | 5V/2.5A | ||||
| USB data cable | Standard Configuration | Connect to PC | ||||
| USB patch cord | Standard Configuration | OTG to HOST | ||||
| Software Configuration | ||||||
| Type | Details | Descriptions | ||||
| Operating System | Operating system version | Andriod 4.2/Andriod 4.4 | ||||
| Language | Multi-language supportive | |||||
| FLASH | FLASH 11; Hardware decoding supportive | |||||
| HTML5 | Supportive | |||||
| Application modules NFC | ||||||
| Type | Details | Descriptions | ||||
| NFC | Chipset/Module | NFC Chip,128K/C2 ROM44kB EEROM | ||||
| RF Frequency | 13.56MHz | |||||
| Support Configuration Mode | Card reader mode,P2Pmode | |||||
| Support Interface | UART,SPI,IIC | |||||
| Module Voltage Range | 2.3V-5.5V | |||||
| Modulation Mode | ASK | |||||
| Module Power Consumption | 30mA(Max) | |||||
| Baud Rate | 9.6 to 460.8 kbps (UART) | |||||
| Work range | <10cm | |||||
| Main Function | Through a serial port realize NFC and MID data exchange, and provide relevant JAVA layer API interfaces |
|||||
| Low power consumption control | ||||||
| Can be read with a ISO14443A/B, ISO15693,Mifare, Felia agreement card | ||||||
| The point-to-point data transmission (P2P mode) | ||||||
| NFC Antenna | The built-in antenna, antenna type: magnetic FPC | |||||
| Application modules RFID915M | ||||||
| Type | Details | Descriptions | ||||
| RFID 915M(optional) | Chipset/Module | UHF Chip | ||||
| RF Frequency | 840MHz-960MHz | |||||
| Voltage Scope | 3.3V | |||||
| Received current | 200mA(max) | |||||
| Emission efficiency | 350mA( max) | |||||
| support agreement | ISO18000-6C (EPC Gen2) / ISO18000-6A,B | |||||
| Work range | about 50-100cm | |||||
| Main Function | RFID and MID data exchange via the serial port, and JAVA layer API interface | |||||
| Interrupt wake-up function | ||||||
| Retain the external Debug Interface | ||||||
| Can read different card under the ISO protocol | ||||||
| RFID Module antenna | Internal antenna,FPC type | |||||
| Application module barcode reader | ||||||
| Type | Details | Descriptions | ||||
| 1D/2D barcode reader NLS-EM3070(Optional ) | Interface | TTL-232,USB(HID-KBW,virtual serial port) | ||||
| Imaging Sensor | 752×480 CMOS | |||||
| Light Source | RED LED 625±10 nm | |||||
| Precision | ≥ 5mil | |||||
| Symbologies | 2D PDF417, Data Matrix(ECC200,ECC000,050,080,100,140), QR Code 1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey etc. |
|||||
| Read DOF | Code 39 35mm -205mm (10mil); EAN-13 50mm -260mm (13mil); PDF417 50mm -215mm (10mil); 60mm~285mm (15mil) Data Matrix 50mm -160mm (10mil); 50mm~225mm (15mil) QR 55mm -140mm (10mil); 50mm~210mm (15mil) |
|||||
| Others | Symbol contrast ≥ 25% Reflecting differences;Angle rotated 360°,Tilt±55°,deflection±55°;View Angle level 36°,vertically23° | |||||
Packaging & Shipping
Packaging: gift box
Shipping: 15-20 days for large order
