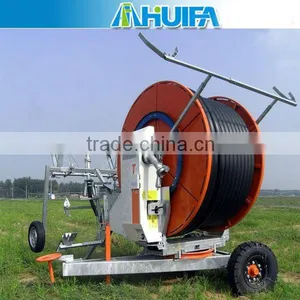

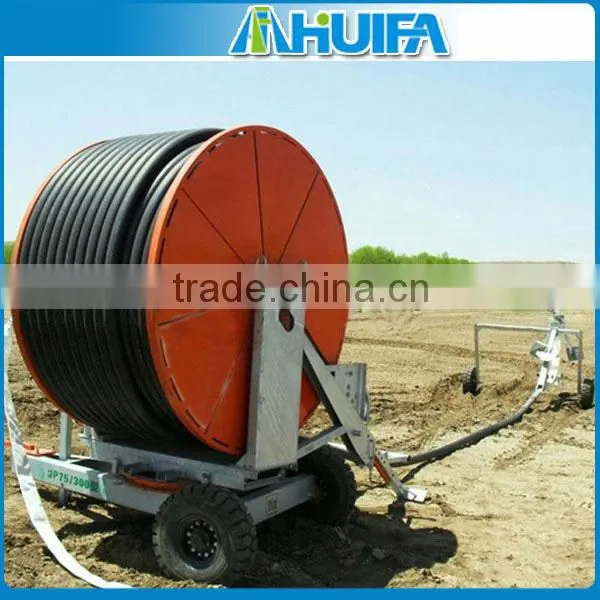

Help CenterHose Reel Irrigation Machine
Related Products
-
Agricultural Solar Greenhouse For SaleUS$ 15 - 40MOQ: 1 Set -
Economical Solar AgriculturalGreenhouse For VegetablesUS$ 15 - 40MOQ: 1 Set
-
Commercial Winter Solar Greenhouse For TomatoesUS$ 15 - 40MOQ: 1 Set
-
Agricultural Solar Green House For TomatoesUS$ 15 - 40MOQ: 1 Set
-
Economical Winter Solar Green House For SaleUS$ 15 - 40MOQ: 1 Set

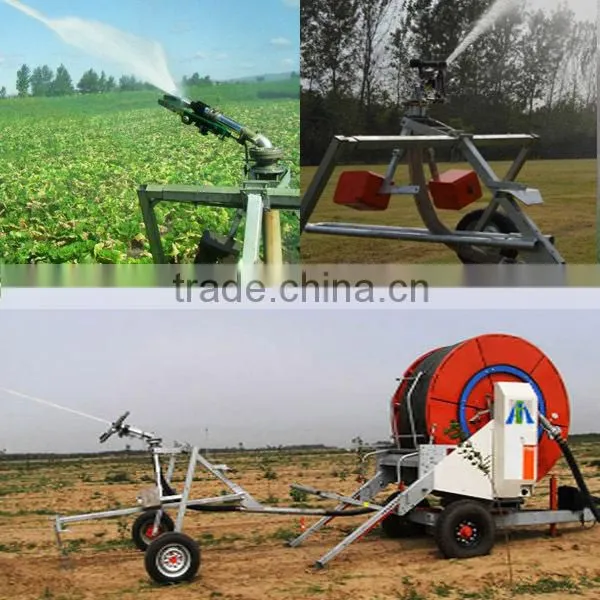

Farm Lawn Watering System introduction
Lawn Watering Irrigation System is turbine-driven machines designed for fully mechanized and labor-saving irrigation system.

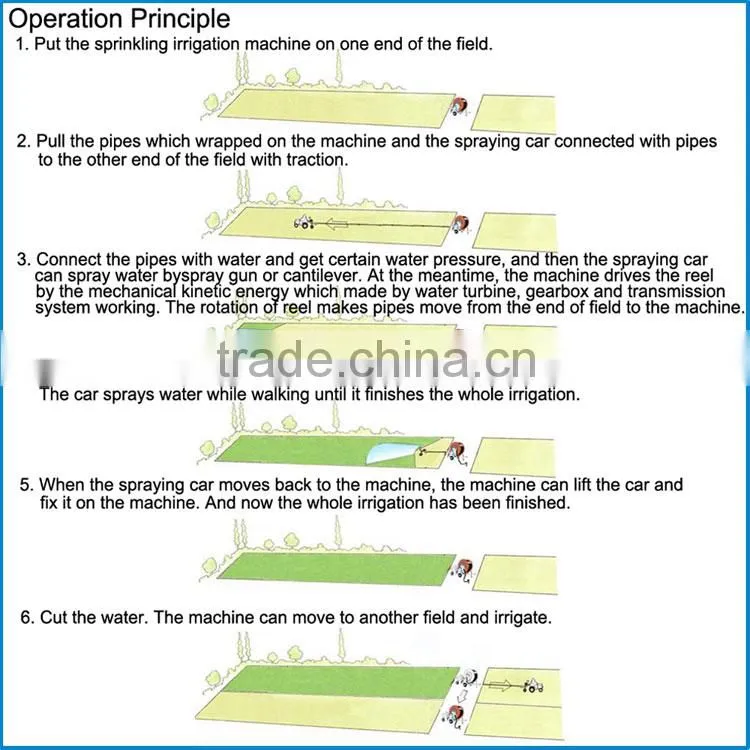

Working principles:

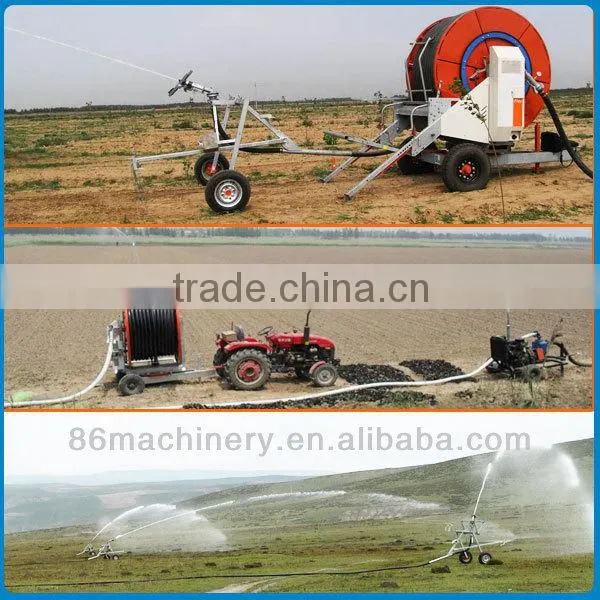

The water comes into the water turbine by pressure, using water kinetic energy drive water turbine rotating, which drag PE pipe and realize sprinkler car uniform recycling, meanwhile, the water in the PE pipe transmission to the spray gun by pressure, and realize sprinkling.It can be used in different areas of water saving irrigation projects.
ss
Parameters
Basic Unit |
Model |
PE-Pipe dia. |
PE-pipe Length |
Max. strip length |
Water flow (m3/h) |
Nozzle Dia(mm) |
Connection pressure |
50TX |
50-150Tx |
50 |
150m |
2×180m |
7 - 16 |
11-14 |
3.5 - 7.6 |
65TX |
65-220Tx |
65 |
220m |
2×260m |
13 - 32 |
14 - 22 |
3.5 - 10.0 |
65-250Tx |
65 |
250m |
2×290m |
13 - 32 |
14 - 22 |
3.5 - 10.0 |
|
75TX |
65-340TX |
65 |
340m |
2×380m |
13 - 28 |
14 - 22 |
3.5 - 10.0 |
75-300TX |
75 |
300m |
2×345m |
13 - 38 |
14 - 26 |
3.5 - 10.0 |
|
85TX |
75-350TX |
75 |
350m |
2×390m |
13 - 38 |
14 - 22 |
3.5 - 10.0 |
75-400TX |
75 |
400m |
2×435m |
13 - 30 |
14 - 20 |
3.5 - 10.0 |
|
90-250TX |
90 |
250m |
2×300m |
17 - 65 |
16 - 30 |
3.5 - 10.0 |
|
90-300TX |
90 |
300m |
2×350m |
17 - 65 |
16 - 30 |
3.5 - 10.0 |
sssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss
Advantages
1. With simple structure ,can be operated by 1-2 persons | |
2. High efficiency and large irrigation area and sprinkling covering in all direction. | |
3. High degree of automatic, pipe can be auto rewinding by itself. | |
4. Spread uniform, water and energy saving irrigation projects. | |

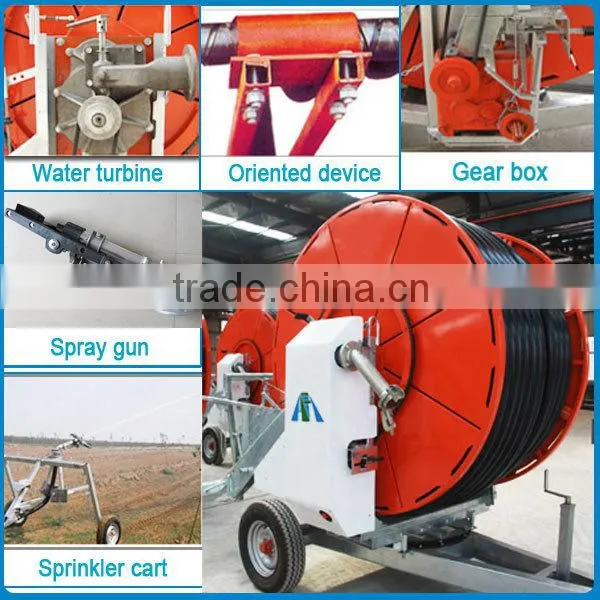

Tube recovery system |
Advanced tube recovery system to make sure every layer PE sprinkler irrigation pipe can be arranged in place and accurate. |
Strong recovery power |
Even in very low flow conditions, water spray car still can retrieve the tube fast, the fastest speed can be up to 180m/hour, which make it easier to adjust the irrigation quantity according to adjust crop demand. |
Chain transmission |
Running noiseless, equipment work more smoothly |
Advanced anti-reversal automatic brakes apparatus |
Changing the original brakes apparatus, easier to drag PE pipe human, and avoid reel reverse. |
ss
Refernce Information:
This information can prove our production capacity, that is why choose us.
The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >>

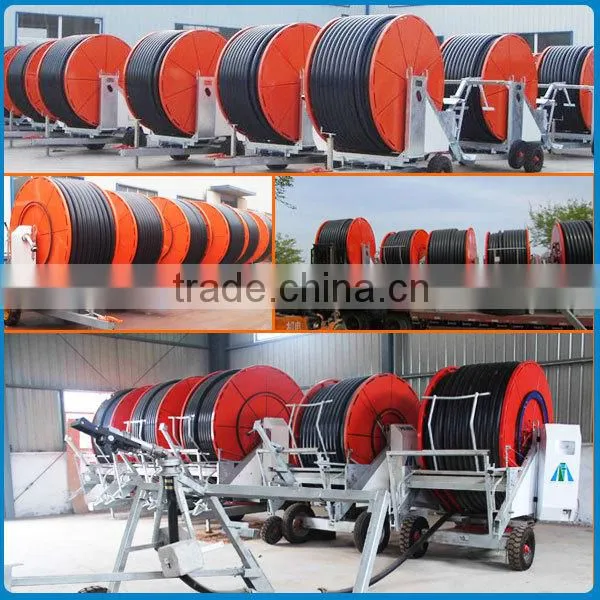

Production Capacity
Product Line Name |
Production Line Capacity |
Actual Units Produced(Previous Year) |
|
Center pivot irrigation system Hose reel irrigation machine Sprinkler irrigation system |
500 sets per year 2000 sets per year 300 sets per year |
386 sets 1865 sets 296 sets |
Export Market Distribution
Market |
Revenue(Previous Year) |
Total Revenue (%) |
North America |
confidential |
11.0 |
South America |
confidential |
18.0 |
Eastern Europe |
confidential |
1.0 |
Africa |
confidential |
20.0 |
Oceania |
confidential |
9.0 |
Mid-East |
confidential |
11.0 |
Europe |
confidential |
1.0 |
South Asia |
confidential |
9.0 |
Domestic Market |
confidential |
20.0 |
Hose Reel Irrigation System

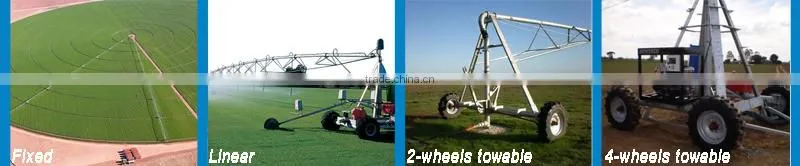

Center pivot Irrigation System
Sprinkler Irrigation System
