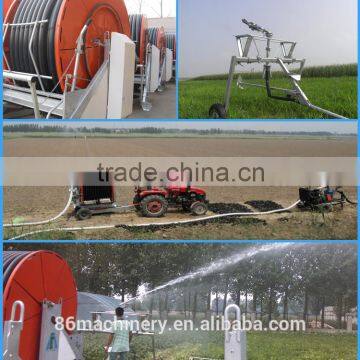

Farm Hose Reel Irrigation System with Boom for watering land

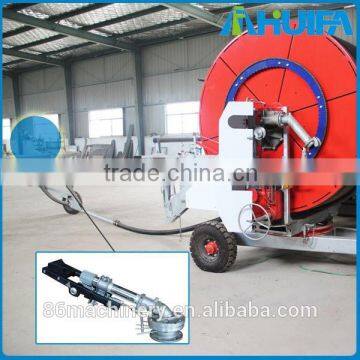

Boom Irrigation Machine manufactured by our company is a turbine-driven machine designed for fully mechanized and labor-saving irrigation equipment.
Main Components of boom irrigation machine:
such as turbine, automatic layering mechanism and crop-protecting sprinkler balancing mechanism enjoy the international patents and have been improving constantly.
Application of boom irrigation machine:
With ultra-long range, good uniformity of irrigation, it can irrigate a variety of high and low crops in the most concise way.
Technical Parameters:
|
Basic Unit
|
Model |
PE-pipe Dia. mm |
PE-pipe Length m |
Max.strip Width m |
Water Flow m3/h |
Connection Pressure |
Nozzle No. *range mm |
65TX |
65-220Tx |
65 |
220 |
36 |
11.41-38.3 |
3.0-7.0 |
13*4.4-7.5 |
65-250Tx |
65 |
250 |
36 |
11.41-38.3 |
3.0-7.0 |
||
75TX |
65-340Tx |
65 |
340 |
36 |
11.41-38.3 |
3.0-7.0 |
|
75-300Tx |
75 |
300 |
36 |
11.41-38.3 |
3.0-7.0 |
||
|
85TX
|
75-350Tx |
75 |
350 |
36 |
11.41-38.3 |
3.0-7.0 |
|
75-400Tx |
75 |
400 |
36 |
11.41-38.3 |
3.0-8.0 |
||
90-250Tx |
90 |
250 |
36 |
11.41-38.3 |
3.0-8.0 |
||
90-300Tx |
90 |
300 |
36 |
11.41-38.3 |
3.0-8.0 |

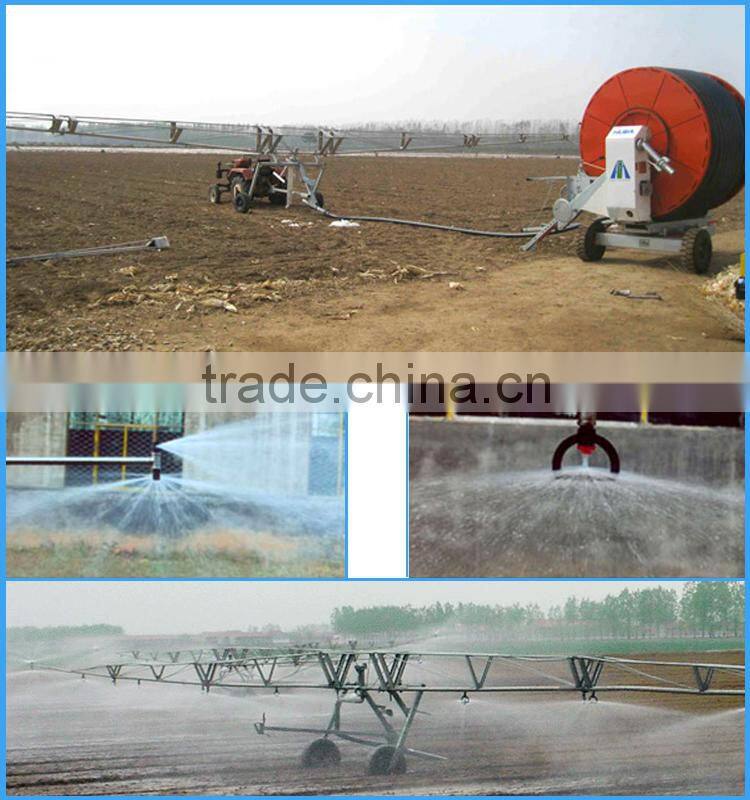

Attached Boom/Cantilever Parameters: | |
Boom Length |
26m |
Covering Width |
36m |
Water Flow |
13-60m3/h |
Nozzle Diameter |
4.4-7.5mm |
Rainfall |
8-50mm |
Degree of uniform |
>0.85 |
Material |
Stainless Steel |
Application |
Small plant or vegetable request small rainfall |
Advantage |
Lower pressure, small water-drop, higher water distribution uniform, small influence of wind. |
Advantages:
1. Wide range of models selection, from 65 to 90 seriess
2. Most precise irrigation, renarkable energy-saving and 100% well-distributed water jets
3. 15 years life for basic unit and 10 years life for PE pipes
4. Frame and water spray car all use galvanized steel parts, provides best anticorrosion protection for metal parts with long service life.
5. Advanced tube recovery system to make sure every layer PE sprinkler irrigation pipe can be arranged in place and accurate.
Agricultural Sprinkling Boom Irrigation Machine for Agriculture!
Do you want to find the most suitable irrigation system for your land?
We will make complete design according to your land size and budget!
Contact us immediately for any inquiries!
