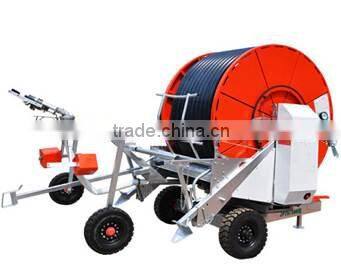

General introduction
Hose reel irrigation is turbine-driven,automatic rewinding and water-saving irrigation equipment. With simple structure,high degree of automation,strong adaptability,simple operation and multistage speed,is the ideal water-saving irrigation machines and tools.

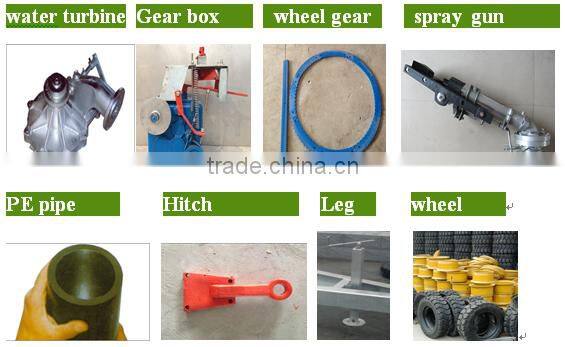

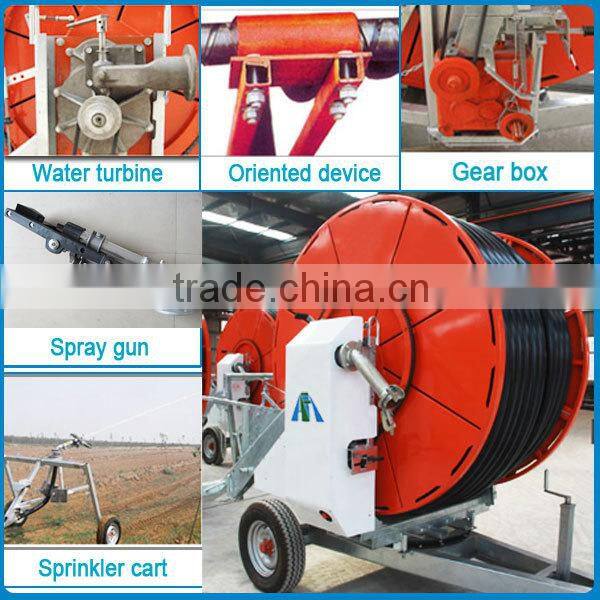

Component
Models and Paramaters
Basic Unit |
Model |
PE-Pipe dia. |
PE-pipe Length |
Max. strip length |
Water flow (m3/h) |
Nozzle Dia(mm) |
Connection pressure |
50TX |
50-150Tx |
50 |
150m |
2×180m |
7 - 16 |
11-14 |
3.5 - 7.6 |
65TX |
65-220Tx |
65 |
220m |
2×260m |
13 - 32 |
14 - 22 |
3.5 - 10.0 |
65-250Tx |
65 |
250m |
2×290m |
13 - 32 |
14 - 22 |
3.5 - 10.0 |
|
75TX |
65-340TX |
65 |
340m |
2×380m |
13 - 28 |
14 - 22 |
3.5 - 10.0 |
75-300TX |
75 |
300m |
2×345m |
13 - 38 |
14 - 26 |
3.5 - 10.0 |
|
85TX |
75-350TX |
75 |
350m |
2×390m |
13 - 38 |
14 - 22 |
3.5 - 10.0 |
75-400TX |
75 |
400m |
2×435m |
13 - 30 |
14 - 20 |
3.5 - 10.0 |
|
90-250TX |
90 |
250m |
2×300m |
17 - 65 |
16 - 30 |
3.5 - 10.0 |
|
90-300TX |
90 |
300m |
2×350m |
17 - 65 |
16 - 30 |
3.5 - 10.0 |

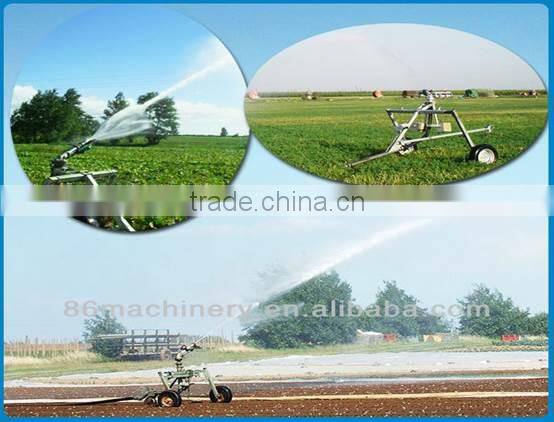

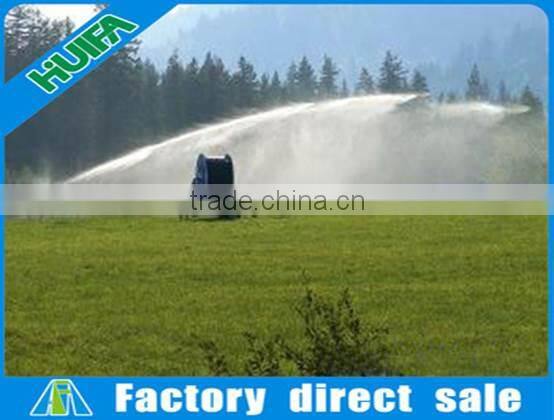

Work scene
sssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss
Advantages
1. With simple structure ,can be operated by 1-2 persons | |
2. High efficiency and large irrigation area and sprinkling covering in all direction. | |
3. High degree of automatic, pipe can be auto rewinding by itself. | |
4. Spread uniform, water and energy saving irrigation projects. | |
Tube recovery system |
Advanced tube recovery system to make sure every layer PE sprinkler irrigation pipe can be arranged in place and accurate. |
Strong recovery power |
Even in very low flow conditions, water spray car still can retrieve the tube fast, the fastest speed can be up to 180m/hour, which make it easier to adjust the irrigation quantity according to adjust crop demand. |
Chain transmission |
Running noiseless, equipment work more smoothly |
Advanced anti-reversal automatic brakes apparatus |
Changing the original brakes apparatus, easier to drag PE pipe human, and avoid reel reverse. |
s

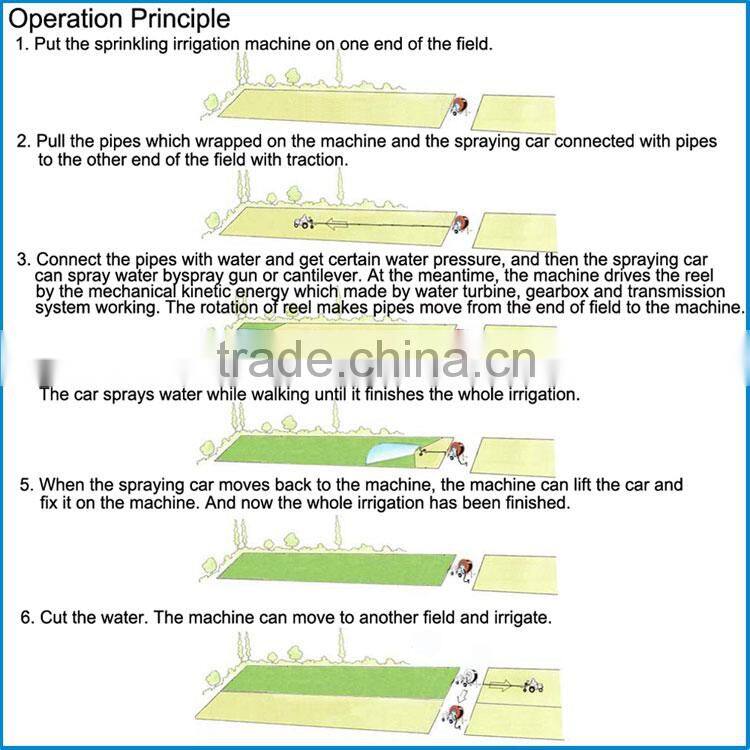

Operation principal
