Help CenterHot Selling Reel Type Irrigation System in Africa
Related Products
-
2016 Farm Water Reel Spary Gun Machinery EquipmentUS$ 3,999 - 10,999MOQ: 1 Set -
High Quality Agricultural 75-400Tx Hose Reel Irrigation System for FarmUS$ 3,000 - 9,000MOQ: 1 Set
-
2016 New Condition Farm Water Reel Irrigation SystemUS$ 3,999 - 10,999MOQ: 1 Set
-
2016 Spary Gun Water Reel Irrigation SystemsUS$ 3,999 - 10,999MOQ: 1 Set
-
Brand New Spary Gun Water Hose Reel Irrigation SystemUS$ 3,999 - 10,999MOQ: 1 Set

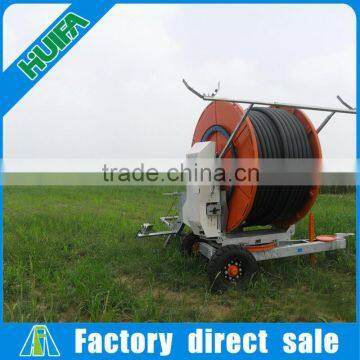

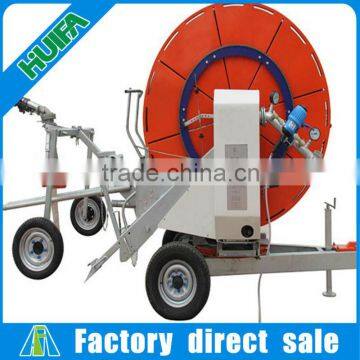

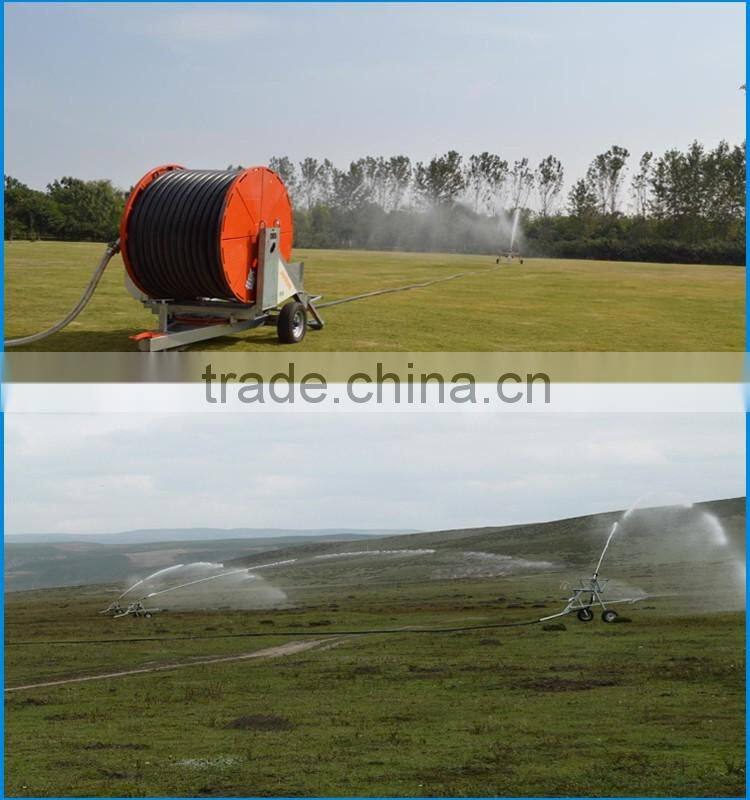

Reel type irrigation system is turbine-driven machines designed for fully mechanized and labour-saving irrigation.

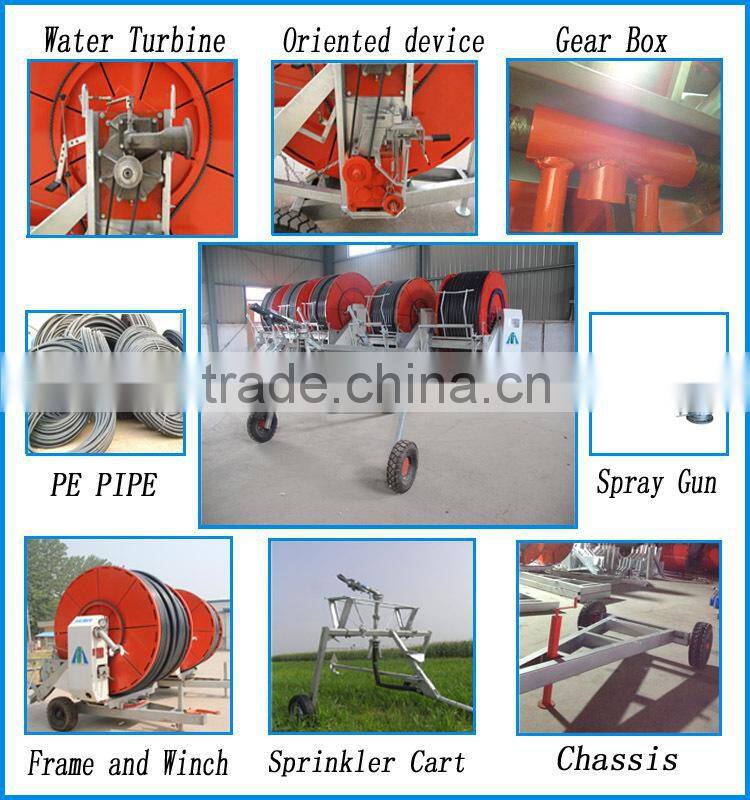

1.Water Turbine
Water turbine is the heart of the whole machine parts, it is the power-drive system of machine, also can regulate water flow, ensure PE tube recovery speed uniform.
2. Oriented device
It can effectively guarantee the reliability of the reversing, can ensure PE pipe safely and orderly arrangement in the winch. And guide walk uniform, no card hysteresis, completely solved the problem of oriented mechanism reversing difficult, improve the accuracy of speed adjustment.
3. Gear box
Multi-functional gear box is the control system of whole machine, this system can realize the clutch, brake, variable speed, fast and safe recovery of transmission system.
4. Frame and winch
It can rotate 360°, make the sprinkler car to work on different orientation field, reduce the machine movement frequency, and increase the reclamation index.
5. PE pipe
Our PE pipe is made of special polyethylene material, of which technical indicators have reached the international advanced level. By durability test in different country's climatic condition, its expected service life is more than 15 years.
6. Automatic speed governing device
By a complete set of connecting rod structure, it can adjust the opening of casing tongue of water turbine, achieving infinitely variable speed of water turbine, ensuring PE pipe to maintain a constant speed among different layers.
Hot selling model: 50-150Tx, 65-250Tx, 75-300Tx, 75-400Tx and 90-300Tx!
Basic Unit |
Model |
PE-Pipe dia. |
PE-pipeLength |
Max. strip length |
Water flow |
Nozzle Dia |
Connection pressure |
50TX |
50-150Tx |
50 |
150 |
2×180 |
7 - 16 |
11-14 |
3.5 - 5.0 |
65TX |
65-220Tx |
65 |
220 |
2×260 |
13 - 32 |
14 - 22 |
5 - 10.0 |
65-250Tx |
65 |
250 |
2×290 |
13 - 32 |
14 - 22 |
5 - 10.0 |
|
75TX |
65-340TX |
65 |
340 |
2×380 |
13 - 28 |
14 - 22 |
5 - 10.0 |
75-300TX |
75 |
300 |
2×345 |
13 - 38 |
14 - 26 |
5 - 10.0 |
|
85TX |
75-350TX |
75 |
350 |
2×390 |
13 - 38 |
14 - 22 |
5 - 10.0 |
75-400TX |
75 |
400 |
2×435 |
13 - 30 |
14 - 20 |
5 - 10.0 |
|
90-250TX |
90 |
250 |
2×300 |
17 - 65 |
16 - 30 |
5 - 10.0 |
|
90-300TX |
90 |
300 |
2×350 |
17 - 65 |
16 - 30 |
5 - 10.0 |
Parameters of PYC50 spray gun:
| Maximum spray diameter | 35m |
| Covering width | 70m |
| Flow rate of sprinkler | 13-65m3/h |
| Inlet pressure | 7.0-10.0bar |

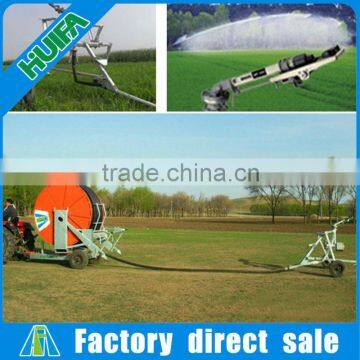

With ultra-long range, good uniformity of irrigation, it can irrigate a variety of high and low crops in the most concise way.

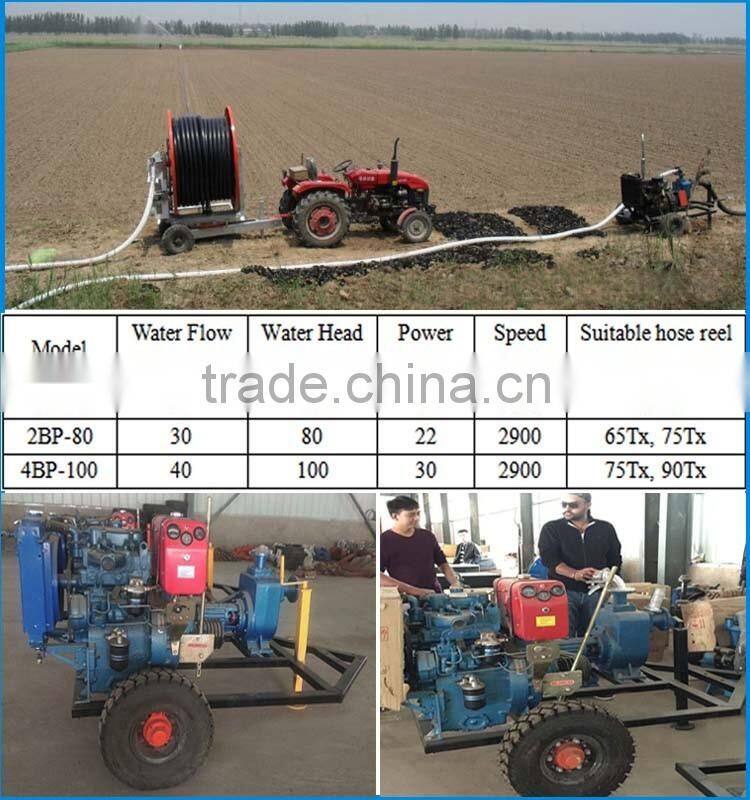

To adopt hose reel irrigation machine works well, our company specially developed a series of water pump.
It has such features as compact structure, smooth operation, energy-saving significantly, high efficiency, easy assemble and so on.
Water pump flow rate and head can meet the working pressure and requested water flow. It can use the motor or diesel engine as driving force.
Contact us immediately for working videos and quotation!!!
