Inline Flat Labyrinth Dripper Irrigation Tape

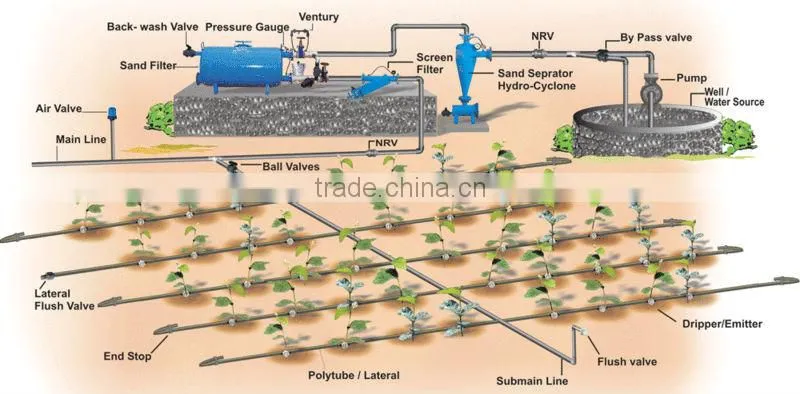

Inline Flat Labyrinth Dripper Irrigation Tape also known as trickle irrigation or micro irrigation or localized irrigation, is an irrigation method that saves water and fertilizer by allowing water to drip slowly to the roots of plants, either onto the soil surface or directly onto the root zone, through a network of valves, pipes, tubing, and emitters. It is done through narrowtubes that deliver water directly to the base of the plant.
Specifications of Inline Flat Labyrinth Dripper Irrigation Tape:
♦1000 m per roll
♦ Flow Rate: Low-Flow
♦ Turbulent flow through a large water passage to the labyrinth helps reduce clogging.
♦ Minimum Filtration recommended: 150 mesh.
♦ Recommended Operating Pressure: 1.0 bar.
♦ Maximum Operating Pressure: 2.0 bar.
♦ Minimum Operating Pressure: 0.5 bar.
♦ UV resistant.
♦ Use Drip Pipe Barb Fittings.
♦ Used for the plant or crops in rows.
Technial Parameter:
| Item | Dia(mm) | Thickness (mm) | Emitter Spacing (mm) | Working pressure (bar) | Flux (L/H) | Packing (m/roll) |
| Flat dripper | 16 | 0.2-0.6 | 200-500 | 0.8-2.2 | 1.38-3.0 | 1000, 2000 |
| Round dripper | 6,12,16 | 0.6-1.2 | 200-500 | 0.6-4 | 1.5-3.0 | 500 |
| Single | 16 | 0.2 | 300 | 0.4-1.5 | 3 | 2000 |

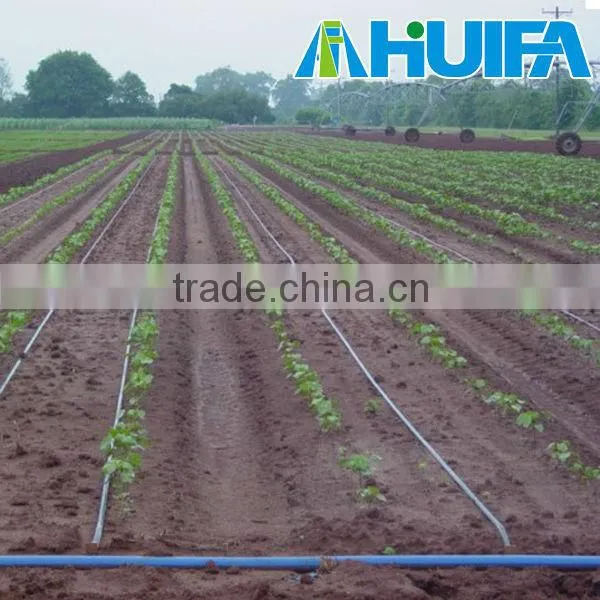

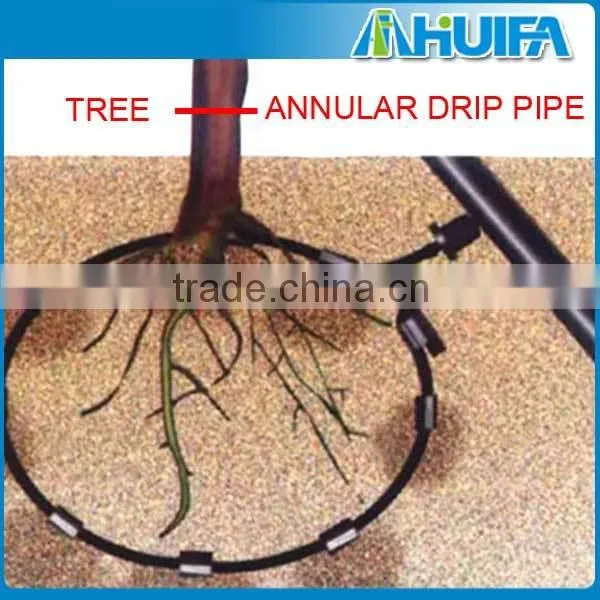

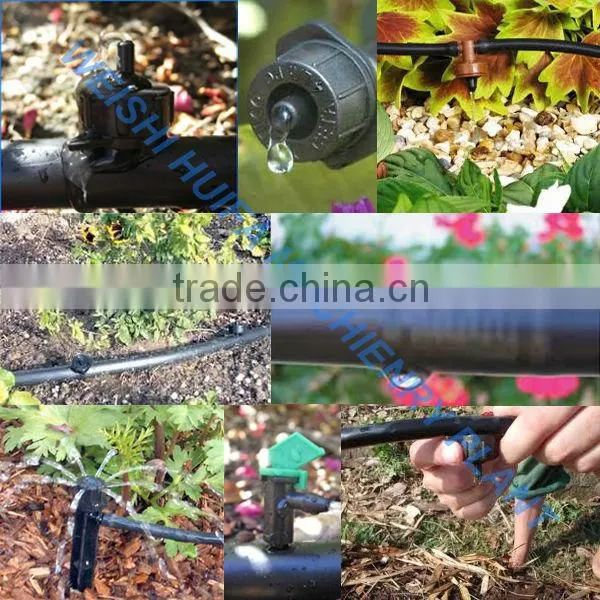

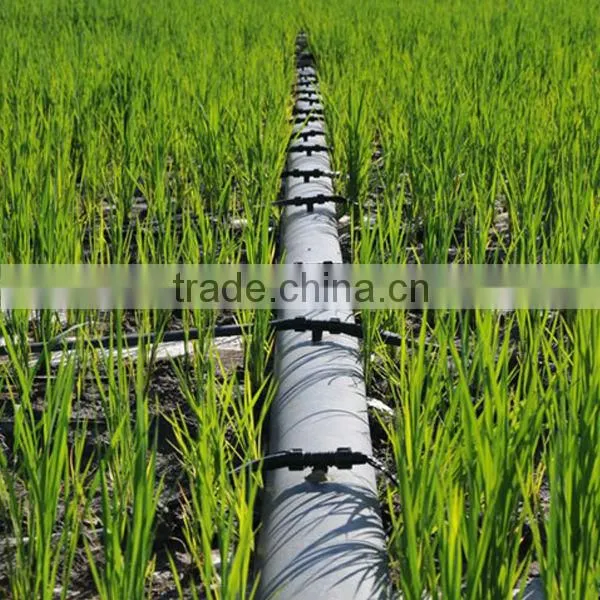

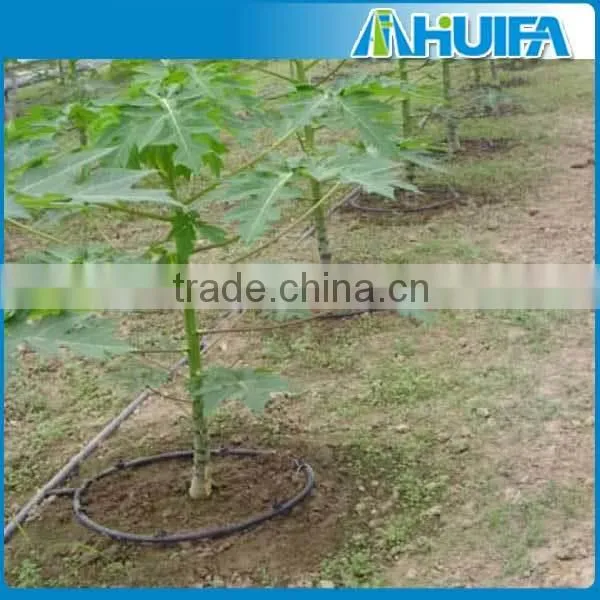

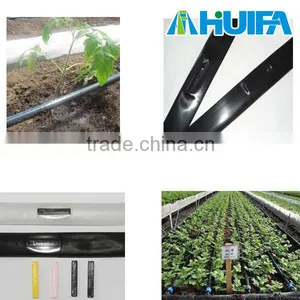

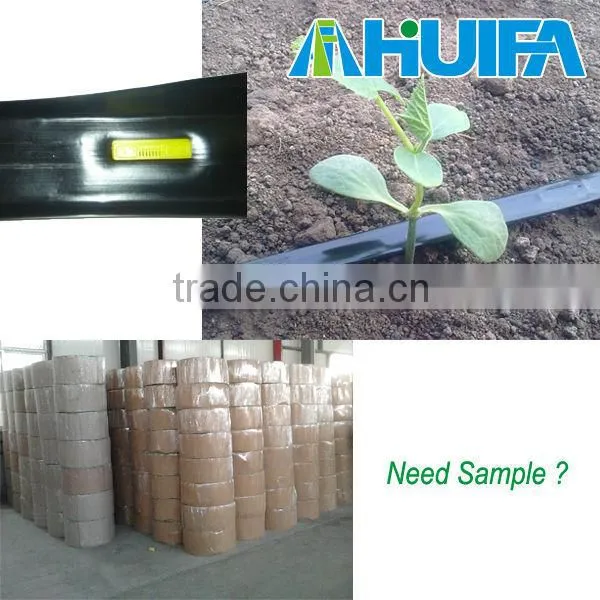

Photos of Inline Flat Labyrinth Dripper Irrigation Tape:
Characteristics:
It is suitable to annual crops by its accurate equalized irrigation
Clogging free for the nursing solution of hydroponics
It is a available to irrigate vast area at same with low volume.
Superior durability with raw material of chemical-proof and anti-ultraviolet rays
Additional insert of the high-technology dripper inside the hose
Preventing over moisture in the air and controlling appearance of harmful insects in the greenhouse.
Welcome to your enquiry at any time, our Huifa Machinery Plant always is your good choice!!!
