Easy working plastic PE pipe irrigation set,micro garden irrigation,garden drip irrigation products
General introduction
Drip irrigation is used in farms, commercial greenhouses, and residential gardeners,adopted extensively in areas of acute water scarcity and especially for crops and trees such as coconuts, containerized landscape trees, grapes, bananas, ber, eggplant, citrus, strawberries, sugarcane, cotton, maize, and tomatoes.

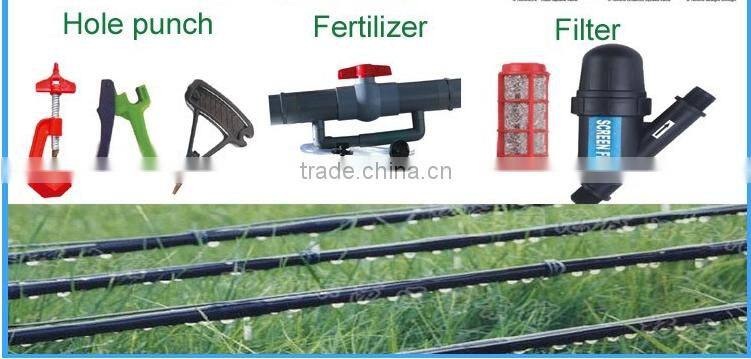

Component
Specifications of Agricultural Drip Irrigation Tape System:
♦1000 m per roll
♦ Flow Rate: Low-Flow
♦ Turbulent flow through a large water passage to the labyrinth helps reduce clogging.
♦ Minimum Filtration recommended: 150 mesh.
♦ Recommended Operating Pressure: 1.0 bar.
♦ Maximum Operating Pressure: 2.0 bar.
♦ Minimum Operating Pressure: 0.5 bar.
♦ UV resistant.
♦ Use Drip Pipe Barb Fittings.
♦ Used for the plant or crops in rows.
Technical parameter:
| Item | Dia(mm) | Thickness (mm) | Emitter Spacing (mm) | Working pressure (bar) | Flux (L/H) | Packing (m/roll) |
| Flat dripper | 16 | 0.2-0.6 | 200-500 | 0.8-2.2 | 1.38-3.0 | 1000, 2000 |
| Round dripper | 6,12,16 | 0.6-1.2 | 200-500 | 0.6-4 | 1.5-3.0 | 500 |
| Single | 16 | 0.2 | 300 | 0.4-1.5 | 3 | 2000 |
Regular Specifications for drip irrigation line
(*models from 20-200mm available)
Outside Diameter (mm) |
Wall Thickness (mm) |
Roll Length (m) |
Work Pressure (MPa) |
20 |
1.60 |
500 |
0.30 |
25 |
1.80 |
400 |
0.40 |
32 |
2.00 |
300 |
0.30 |
40 |
2.50 |
200 |
0.30 |
50 |
3.00 |
150 |
0.30 |
63 |
4.00 |
100 |
0.30 |
Diameter of main pipe |
32mm customized |
Diameter of drip tape |
16mm |
Driper Spacing |
10cm 30cm 40cm or customized |
Flow Rate |
1.38L/h---3L/h |
Pressure |
1 bar |
Min Filter |
120mesh |

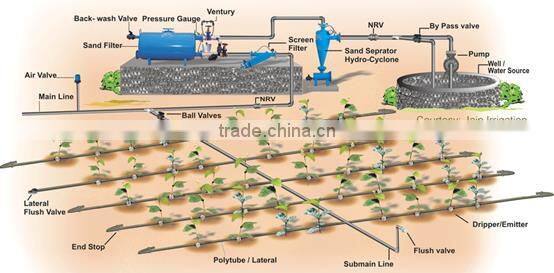

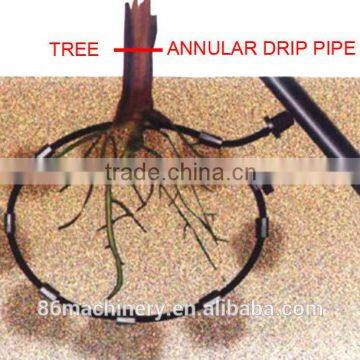

Operation principal
Drip irrigation, that saves water and fertilizer by allowing water to drip slowly to the roots of plants, either onto the soil surface or directly onto the root zone, through a network of valves, pipes, tubing, and emitters. It is done through narrow tubes that deliver water directly to the base of the plant.

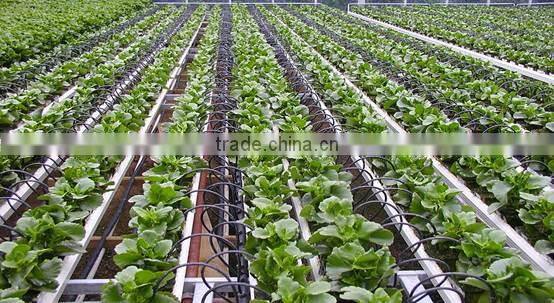

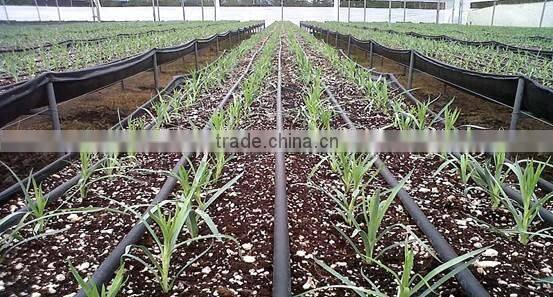

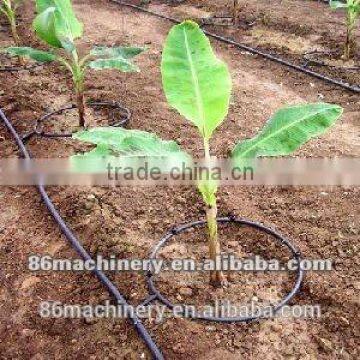

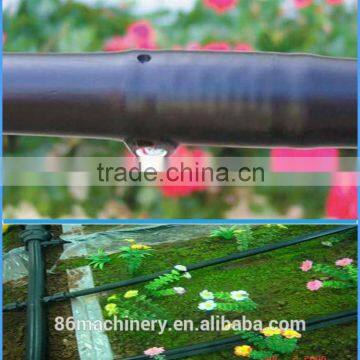

Work scene
Advantage
1. Long life. In normal conditions, the drip irrigation at least lasts over 50 years.
2. PE pipeare made of 100% virgin PE material, non-toxic, no heavy metal additive, no scaling, no bacterium.
3. Resistant to corrosion medium kinds of chemistry; No electrochemical corrosion.
4. The PE pipe has good flexibility, high strength, good resistance to impact and twist.
5. Light weight, convenient transportation and installation.
6. The unique hot melt docking and socket connection technology make interface stronger, to ensure the safety and reliability of the interface.
Packing and shipping
Package: Into cartons.
Roll length: 100/150/200/300/400500Meters/Roll
Package size: 78*78*30cm (500m/roll)
20FCL:80000M
40HQ:180000M

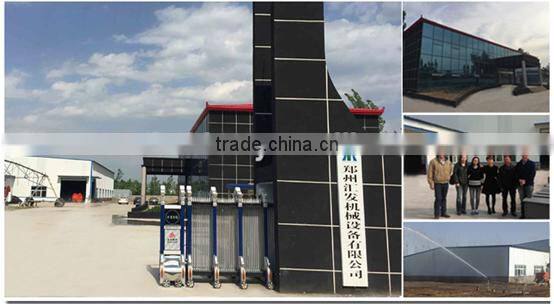

About us
Huifa Machinery is a professional manufacturer of various irrigation systems and greenhouse, export to more than 40 countries.
Main products including towable pivot irrigation system, center pivot irrigation system, hose reel irrigation system, sprinkler irrigation system, drip irrigation system, boom sprayer, greenhouses and related accessories.
Hot market:
America:America,Canada,Mexico,Peru,Brazil,Chile,Bolivia,SaintLucia,Dominica, ect,.
Africa: Zimbabwe, Ghana, Zambia, Nigeria, Congo, Angola, South Africa, Ethiopia, Kenya, Tanzania, Uganda, Mozambique ,Cameroon, ect,.
Asia:Philippines,Thailand,Indonesia,India,Turkey,Uzbekistan,Georgia,Yemen.ect,.
Oceania: Australia, French Polynesia
Middle East: Egypt, Sudan, Yemen
Europe: Norway, UK
Service we can provide
1. Promp shippment: By reputed shipping line and professional document.
2. Cargos photo: before and after loading into container.
3. Packing: new and strongseaworthy packing or as buyer's special request.
4. Installation video and manuel delivery with cargo.
5. Feedbak email after endusers received the cargo.
6. OEM&ODM is welcome. Customization according to your need .
7. After sale service including:trouble shooting,proposing solutions and providing spare parts.
8. Strict quality control: raw material purchase, production process quality monitoring before shipment quality test.
9. Customer service tracking: before and after placing order, we'll serve you as always."
Contact us
FAQ
-
Which model is suitable to my land?
Pls tell us your farm land length and width, and we will recommend the most suitable model according to your land condition.
-
How about the packaging of the equipment?
The equipment will be sent by packed into wooden case.
You just need to assemble them after receipt the goods. It is assemble easily, and we can offer you an instruction video.
-
Can you give me a preferential price?
It depends on the quantity of your order. .More quantity ,better price.
4. About Fumigation-free wooden case?
Raw material of fumigation-free wooden is composite board or plywood, the board is made by all types of wooden remaining material which has been treated by high temperature and pressure disinfection before molded.
The finished wooden case is free of insects and worm eggs, and does not cause harm to agriculture and forest resources. Therefore, when export by using this kind of wooden case, fumigation is not required by customs authorities.
-
5.Do you assemble the machine in your factory?
Generally speaking, sprinkler irrigation machine is sent without assembling, and customer assemble and install it after receipt the products.
Because if we sent the machine after finishing assemble, the CBM will be increase, it is very space-consuming and shipping freight is higher.
6. Can i remove the irrigation lines to another land and continue irrigation?
If you want to move the sprinkler irrigation machine to another land and continue irrigation, you just need to tear down the water hose and sprinklers and move to another land.
-
7.How about your guarantee period?
Our quality guarantee term is for 1 year. Malfunctions which are caused by machine-self and quality will be responsible for us. Other malfunctions which are caused by operation mistakes, man-made problems will be responsible for clients-self.
8. For balance payment:
It takes 5 days to send your goods to the port.
And it takes 2-3 working days we get bank notice money arrive after you make wire transfer. So pls arrange the balance payment asap.
9. About delivery port:
For LCL(less than a full container), we usually sent the products to Shanghai port.
For FCL(a full container), we usually sent the products to Qingdao port.
If need we check the shipping cost, pls give us your destination port, and we will check the shipping cost for your reference.
Welcome to your enquiry at any time, our Huifa Machinery Plant always is your good choice!!!
