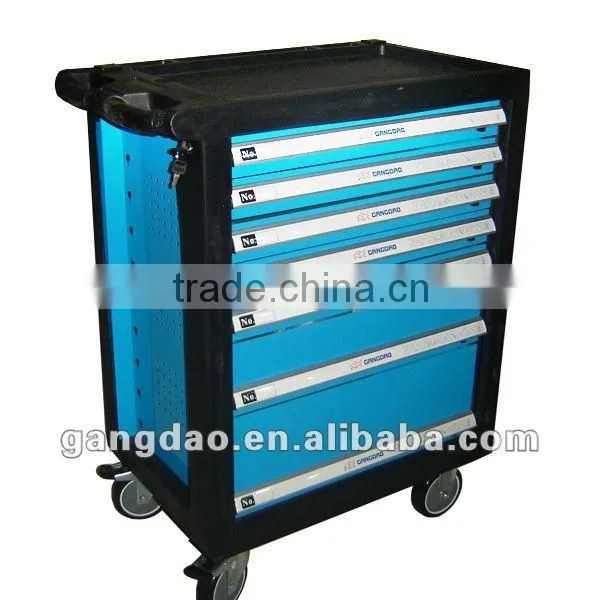

GBM511H seven drawers tool chest

Specifications

1.Commodity name: tool chest
2.Material:cold rolled steel
3.Size:W770*D460*H970mm
4.Direct leading manufacturer

 Product Information:

Item Name	Tool Chest
Item NO.	GBM511H
Usage	workshop using
Function	Storage
Brand Name	Gangdao/OEM
Structure	Assemblely
Material	High quality Cold Rolled steel
Thickness	0.8-1.5mm
Size	W770*D460*H970mm
Packing	One piece per carton.
Color	Blue,red or customized
Net Weight	52.9kgs
Certificates	ISO9001:2008 ,ISO14001,CE
Surface Finish	Acid pickling, Phosphorization,Static spraying, high-temperature curing







Advantages of our Company:



1)We are the direct leading manufacturer in China with over 10 years' experience.

2)Our product and factory pass CE.ISO9001,ISO14001.ect.

3)Payment terms: T/T,L/C,Paypal,Western Union ect.

4)Excellent qualtiy with competitive price.

5)We have three production line:two steel proudction lines & one wood production line

6)The area of our factory is about 15000 m².

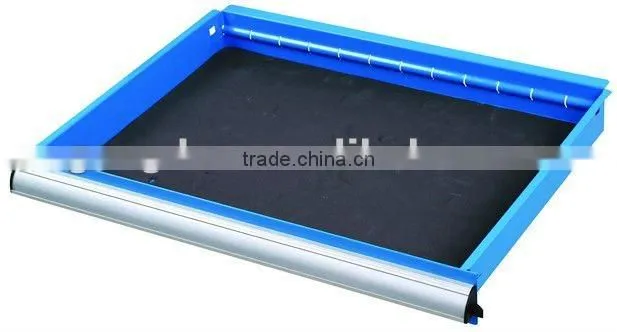

                                                                                                   Small Drawer:W530*D370*H55 mm

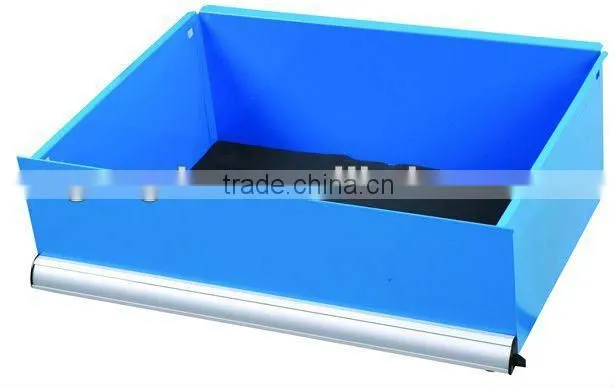

                                                                                         Middle Drawer :W530*D375*H120 mm                                                                                       Large Drawer:W530*D375*H190 mm



Drawer:There are large,middle and small types of drawers to select and allow to combinate freely to meet different needs.There are a loading capacity of 60 kgs for drawers.They can meet the needs of placing tools.

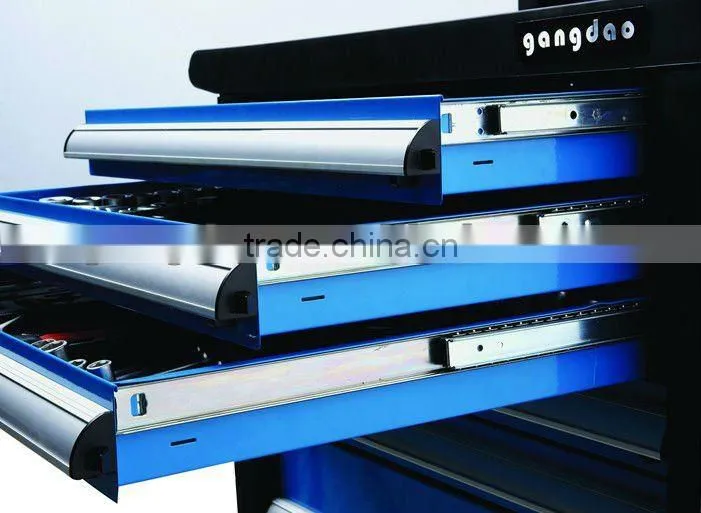

 Sliderail: The sliderail on both sides of drawer are the stacked ball rails that are made of by German technolongy,has the features of strong loading capacity.durability and non-deformation,mute,smooth start-up and so on.The rails have a warranty of five years.

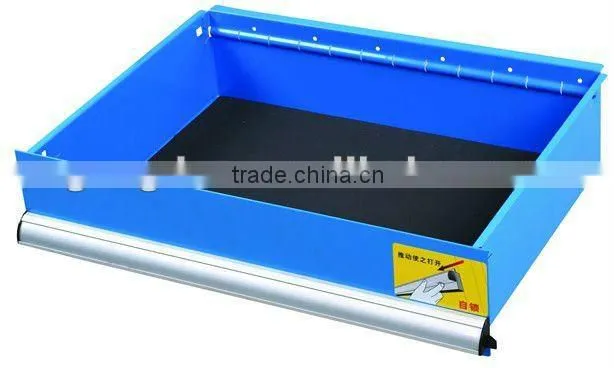

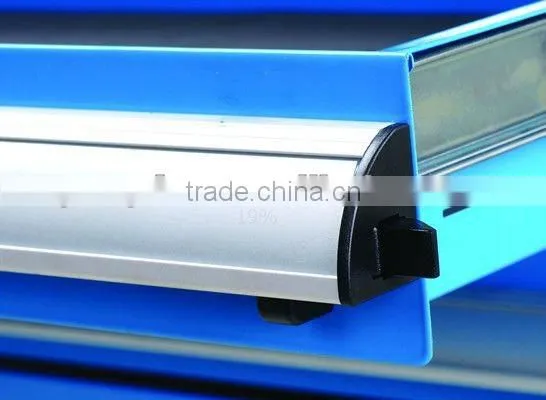

Self locking system: Each drawer is equipped with the independent self-locking system to prevent damage from unexpecting inclining.

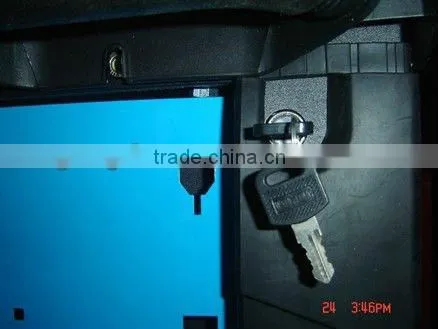

Triple-management central lock:it realizes the separation of management or usage of tool.when the key is lost or damaged,it realizes the easy replacement without disassembling tools cabinet,avoids the troubles of tools management becaues of the alternative of users.

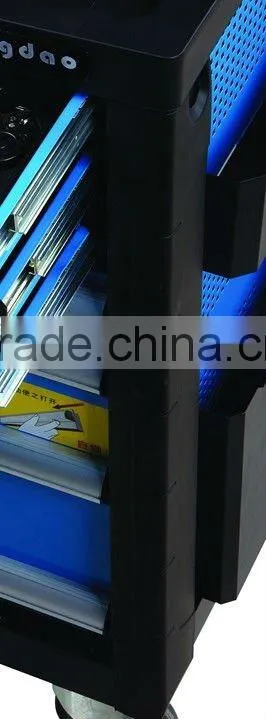

Crash-proof Rubber:Four corners of tool trolly are equipped with the crash-proof rubbers that are made up by the new composite material,they can protect the body of tool trolly and collision object effectively as the protection of bumper car.

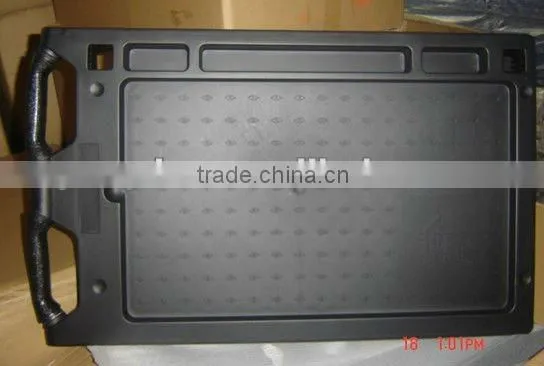

Worktop:It has a life of 10 years,with the one-time injection molding through nanometer PC particle that is featured by the corrosion resitant,wear-resisting and ageing-resistant.

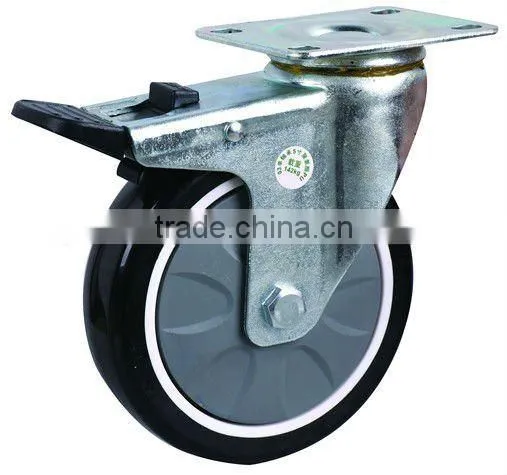

Caster :PU of casters.Two fixed wheels and two castors,two with brake.    each and every caster load  bearing:150KG. 125mm diameter. 155mmH
