Wristband cut-off-proof alarm GPS +AGPS+LBS MINI Handheld Tracker
MT-100 is the newest R&D Handheld GPS Mini tracker from Megastek, it use high sensitivity U-blox GPS module, as well as worldwide quadband GSM communication module, and support for AGPS assisted positioning and LBS base station positioning. MT100 which is also special development waterproof function besides a general bracelet GPS tracker basic functions, twoway communication, listening in the background, as well as wristband cut-off proof alarm function for Parolee. It is suitable for the elderly, children, patients, parolees and individual workers.It is easy to take, such as handheld, placed in the pocket or backpack.
MT-100 Features:
Product Size:61X49X21.75mm
Product Weight: 67g
GPS+AGPS+LBS
GSM Chipset:Quad Band GPRS 850/900/1800/1900MHz
Water Resistance (IP67)
Two way communication
Background voice surveillance
Power saving mode, long battery standby
Support setting 5 authorized cell phone numbers
Track by demand
Track by interval
Track by Mobile Phone& online tracking system
Real-time tracking
SOS alarm
Geo-fence alarm
Built-in G-sensor
Over speed limit alarm
Low power alarm
Vibration alarm
Wristband cut-off-proof alarm
Support data logger in no GSM signal area using Micro SD card(Max:2GB)
Support FOTA.
Malfunction:the device cannot be switched on | |
Possible Cause |
Solution |
Main power switch is in OFF position |
Open the cover and slide the switch to ON position |

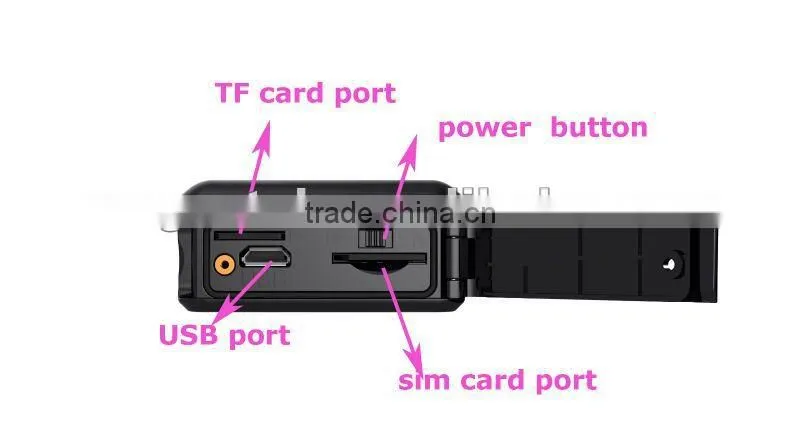

Power button is not pressed |
Please press and hold power button for 3s to switch on tracker |
Battery discharged |
Please charge the device for 3 hours |
Malfunction: The device does not reply to SMS | |
Possible cause |
Solution |
MT-100 unable to register to the GSM network (LED flashes: 0.5s on & 0.5s off) |
Move the device to an area with good GSM signal coverage. Please check SIM card, if necessary, re-insert SIM card again. Please check by using a mobile phone if SIM card has enough balance, is not locked or damaged. |
GSM network is overloaded |
Wait for message for few minutes. GSM network may be overloaded in crowded areas or during some emergency. |
Authorized number is not set or is incorrect |
Please check if authorized telephone number is set and the number is correct |
Balance of SIM card is low or SIM card is locked |
Please check by using a mobile phone if SIM card has enough balance, is not locked or damaged. |
Malfunction:GPS/Glonass is not fixed for long time (Green LED: 1s on & 1s off) | |
Possible cause |
Solution |
Satellites signal is too low or unavailable |
For cold start make sure that the tracker is in open sky area and its front is up to the sky. If in the building move tracker text to the window. Narrow street with tall buildings, heavy rain can affect normal reception. |
Fault: The device fails to connect to server via GPRS | |
Possible cause |
Solution |
SIM card data (GPRS) feature is not enabled |
Enable SIM card data – check with GSM provider |
GPRS parameters of the tracker are not set and enabled |
Set GPRS parameters and enable GPRS data transfer |
Incorrect IP address or PORT |
Check correct IP and port with your system administrator or service provider |
GSM signal is weak |
Move to a better reception area |
