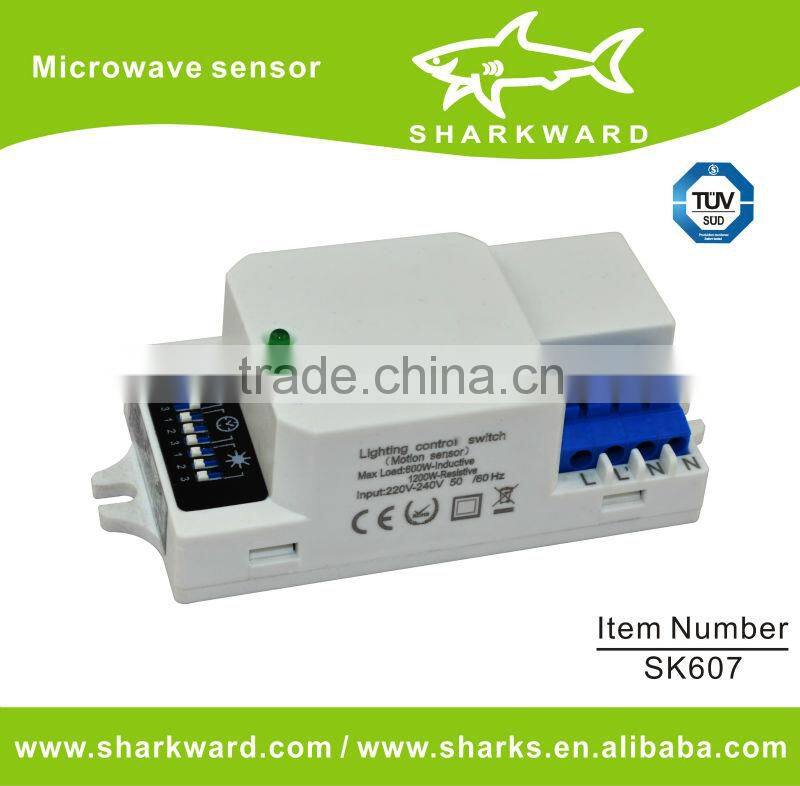

Help CenterMicrowave Motion Sensor SK607,electric Light Sensor Switch
Related Products
-
Microwave Motion Sensor SK607 , Outdoor Light Sensor SwitchUS$ 3 - 6.5MOQ: 500 Pieces -
Microwave Motion Sensor SK607 , Led Night Light SensorUS$ 3 - 6.5MOQ: 500 Pieces
-
Microwave Motion Sensor Light Switch SK607 ,automatic Turn off Light Sensor SwitchUS$ 3 - 6.5MOQ: 500 Pieces
-
SK607 Microwave Motion Sensor, Room Light Motion SensorUS$ 3 - 6.5MOQ: 500 Pieces
-
12V/DC,24V/DC Microwave Radar Motion SensorUS$ 3 - 7MOQ: 500 Pieces
Specifications
Microwave Motion Sensor1.Sensor detection angle: 360
2.Sensor detection range: 1-10m
3.Sensor time setting: 10sec.-30min
Main features:
1.PIR sensor
2.Light and small
3.Auto switching on when detecting people coming
4.Super sensitivity within 1-10 meters distance
5.Easy to install, can be used in bedroom, washing room, back door, porch, front entrance, or outside of a barn/garge.
6.Extremely low energy consumption.
The Light switch on when it's sensor realizes a movement (persons, doors,..) .
So this light overs you a high comfort and it saves energy.
Moreover the sensor is adjustable and has a reach of 1-10 meters and 360°.
| Model Number | SK607 |
| Detection Range | 1-10m,adjustable |
| Detection Angle | 360° |
| Time Setting | 10sec.-30min. |
| Power Source | 110V-130V/AC, 220-240V/AC |
| Power Frequency | 50/60HZ |
| Rated Load | 600W(110-130V/AC),1200W(220-240V/AC) |
| Working Humidity | <93%RH |
| Ambient Light | 2LUX-2000LUX |
| Working Temperature | -10°C~+40°C |
| Installation Height | 1.5m-3.5m |
| Quantity per Carton | 100 PCS |
The sensor is an active motion detector, it emits high-frequency electro-magnetic wave(5.8GHz)and receives their echo. The
sensor detects the change in echo from even the slightest movement in its detection zone. A microprocessor then triggers the
“switch light ON” command. Detection is possible through doors, panes of glass or thin walls.
Important: persons or objects moving towards the sensor are detected best!

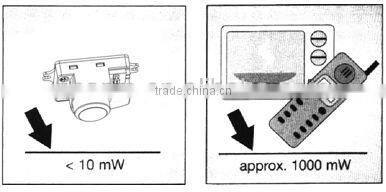

NOTE: the high-frequency output of this sensor is <10Mw- that is just one 100th of the transmission power of a mobile
phone or the output of a microwave oven.
We are a company mainly producing PIR motion sensor, microwave sensor, sensor lighting and so on with high quality and
competitive price. We also have our own R&D and can produce products according your special request or sample you
offered.
