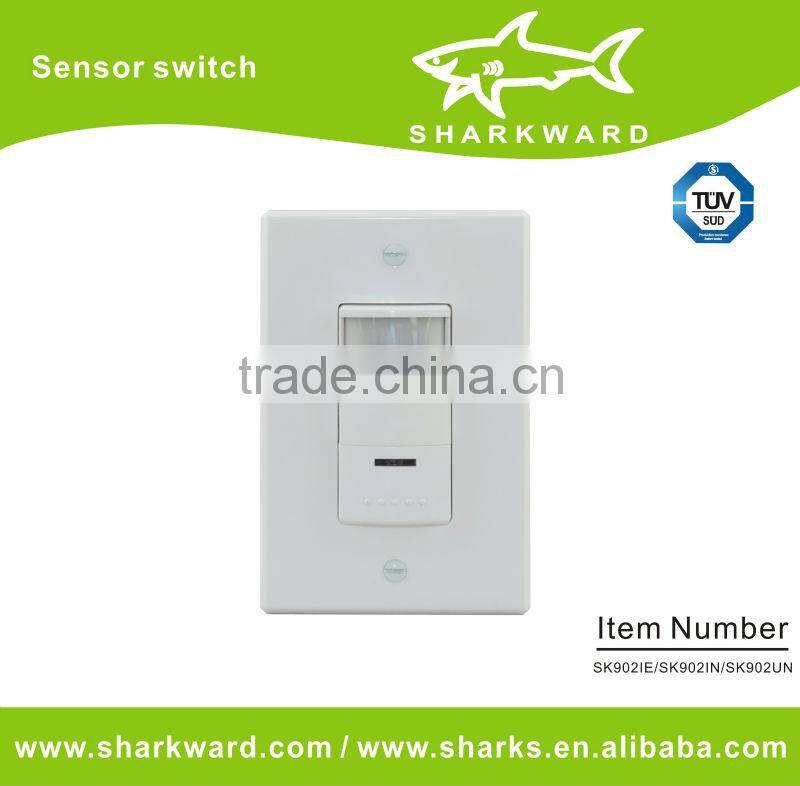

Help CenterSK902IE Light Sensor Switch,passive Infrared Sensor,infrared Motion Sensor Switch
Related Products
-
SK902IE Light Sensor Switch,passive Infrared Sensor,small Infrared SensorUS$ 5 - 12MOQ: 500 Pieces -
Infrared Sensor Switch SK902IE, Pir Sensor Light SwitchUS$ 5 - 12MOQ: 500 Pieces
-
SK902IE Infrared Sensor Switch,pir Motion Sensor Wall SwitchUS$ 5 - 12MOQ: 500 Pieces
-
SK902IE Infrared Sensor Switch,pir Sensor Switch With Time DelayUS$ 5 - 12MOQ: 500 Pieces
-
SK902IE Light Sensor Switch,electronic ir Sensor SwitchUS$ 5 - 12MOQ: 500 Pieces
Specifications
1.Dual sensor(pir + sound) switch2.ETL,C-ETL Certification
3.120-277VAC
4.Auto-on/off
5.Energy-saving
OPERATION
The SK902 uses passive infrared (PIR) detection technology to monitor a room for occupancy, any movement by a person will cause the detector to register that movement and energise the lighting. After the primary detector PIR engages then the sound detection system comes into operation to keep the status of the detector as “Occupied” even though there is no detectable movement. The lights will remain ON as long as there is a noise or an occupant moving through the sensor zones.
A OFF delay time adjustment prevents the lights from switching OFF when the space is occupied. In order to keep the lights ON, noise must be generated, either from talking or any other activity, at least once during the selected OFF delay time interval. An LED indicator blinks to denote activity is sensed in the sensor zones. When the space being monitored by the sensor is unoccupied for the length of time chosen as the OFF delay interval, the unit will switch the lights OFF.

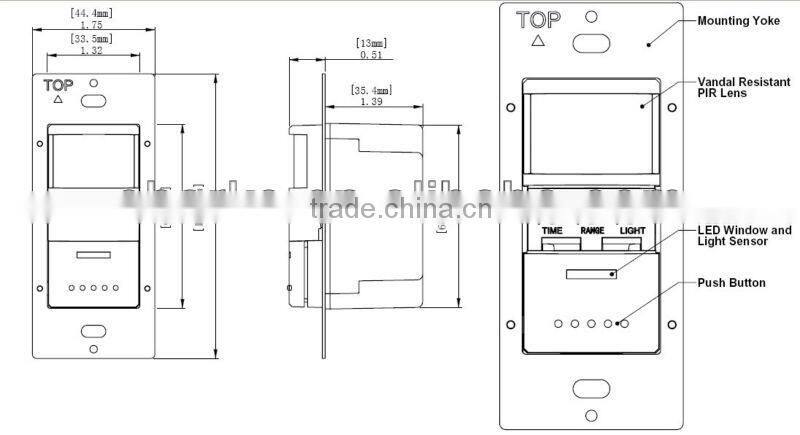

DIMENSIONAL DIAGRAMS

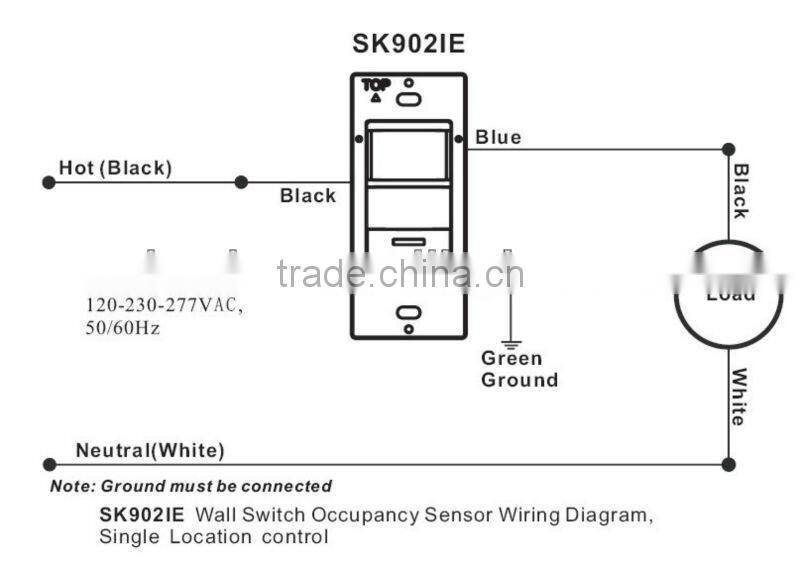

WIRE DIAGRAM
ELECTRICAL REQUIREMENTS
| line voltage | 120/277VAC 50/60HZ |
| Wire designation |
Line-Black load-Blue Ground-Green no neutral line required |
| Load Rating |
Incandescent: 800W - 6.67A @ 120V Fluorescent: 1200VA - 10A @ 120V 2700VA - 10A @ 277V Inductive Load: 1/4hp(185W) - 5.8A @ 120V |
| Dual sensor | PIR+Microphonics |
