SK806 Ceiling passive infrared sensor , infrared sensor switch ,light sensor switch with remote control

Specifications

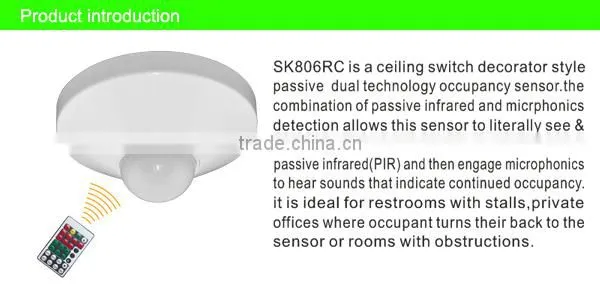

Ceiling Pir Motion Sensor
1.Time,Lux,Range are adjustable
2.Auto on/off
3.Dual sensors : pir sensor + microphonics

Power source: 220-240V/AC,50Hz ,100-130V/AC,60Hz

Rated load: 1200W Max.tungsten (220-240V/AC)  ,300W Max.fluorescent (220-240V/AC)
600W Max.tungsten (100-130V/AC) ,150W Max.fluorescent (100-130V/AC)

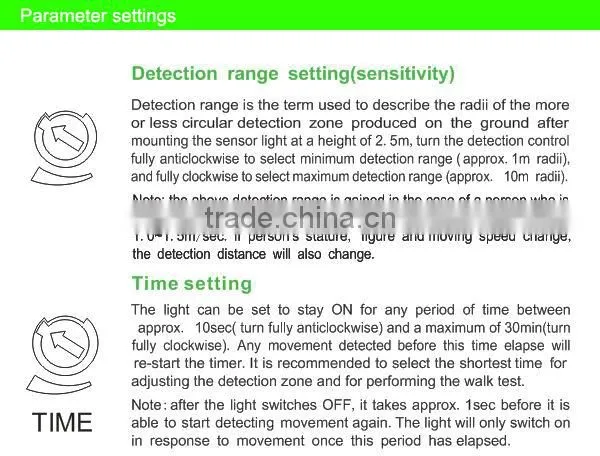

Time setting: 10sec~12min(adjustable)

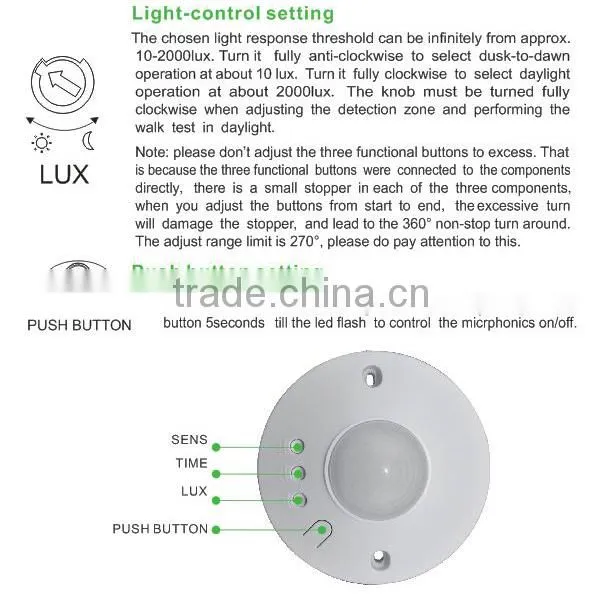

Light-control: 10LUX~2000LUX(adjustable)

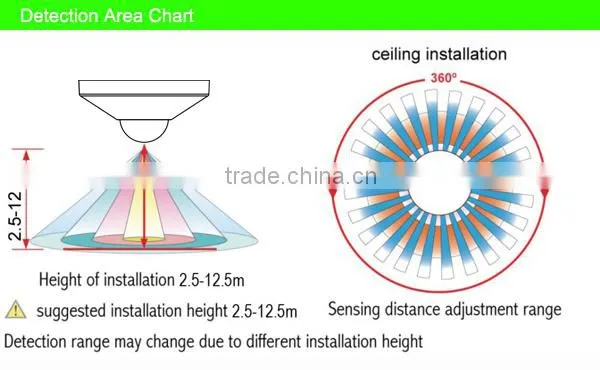

Detection range: 1-10m (radii.)(adjustable)
Detection angle: 360º (ceiling installation)
Installation height: 2.5~3.5m
Working temperature: -10°C~+40°C
Power consumption: working 0.45W(static 0.1W)
Sense motion speed: 0.6~1.5m/s
