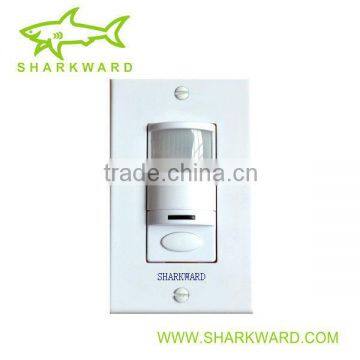

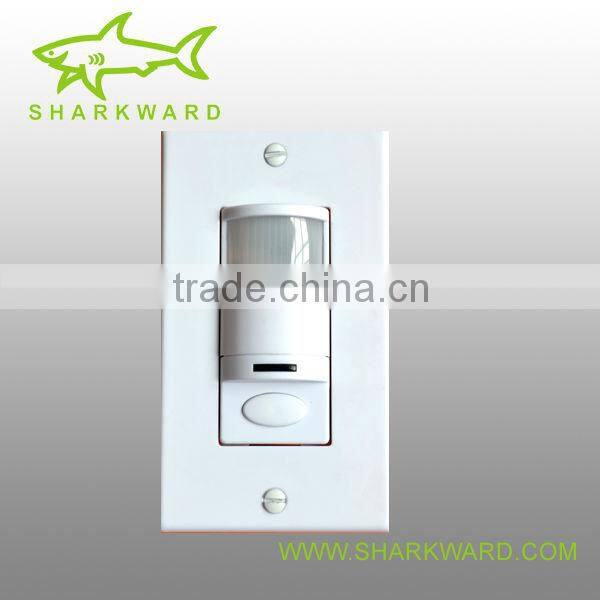

SK901UN 120-277VAC dual sensor switch,wall switch with ultrasonic sensor and microphonics

Specifications

1.Microphonic sensor+ultrasonic sensor
2.ETL,C-ETL Certification
3.120-277VAC
4.Auto-on/off
5.Energy-saving









APPLICATION



The Sharkward SK901 dual technology Sensors Wall Switch uses Passive Infrared (PIR) combined with micro phonics or ultra-sonic Doppler detection with micro phonics as an occupancy sensor to provide automatic control of lighting for energy savings and convenience in a variety of applications. Most suitable for Small offices /Conference rooms /Lounges / Class rooms .





FEATURES AND BENEFITS



       New styling complements any interior; uses standard wall plates and coordinates with popular wiring devices.



       180° field-of-view provides approximately 100 square meters of surveillance suitable for small offices, conference rooms, class rooms, lounges and a variety of commercial areas.



       Convenient push-button provides manual ON/OFF light switching at any time.



       Segmented Fresnel lens or Doppler ultrasonics provides optimum sensitivity and performance. Designed with an extensive “small motion” area where even slight body movements will be detected.







       Optional manual adjustment for OFF delay time settings of 30 seconds (set-up procedure), 10 minutes, 20 minutes and 30 minutes. Allows adjustments to maximize energy savings.



       Adjustable Ambient Light Override ranges from approximately 2 lux to 500 + lux to prevent lights from turning ON automatically during periods of ample natural light, increasing energy savings.



       Manual-ON/Automatic-OFF mode for installations where manual ON switching is required but automatic OFF switching is still desired for energy savings.



SOUND-ON/OFF Mode is ideal for areas where there are



high ambient sound levels, such as outside near busy roads and busy shopping centers.



LED indicator light flashes when sensor detects motion to verify detection is active.



       One unit can be used for either 120V or 277V lighting. Compatible with both electronic and magnetic ballasts.



       Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts.



       Fits in standard wall box and replaces single-pole wall switch. Gang able with other units.



       UL Listed and CSA Certified, complies with California Title 24 Energy Code and FCC regulations



       Limited Five-Year Warranty







 ELECTRICAL

Line Voltage	120/277 VAC
Operational Frequencies	60Hz
Wire Designation	Line—Black Load —Blue Ground—Green, Neutral—White
Load Rating	Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V Motor: 1/4 HP @ 120V



ENVIRONMENTAL

Operating Temperature Range	0°C to 50°C
Storage Temperature Range	-10°C to 85°C
Relative Humidity	20% to 90% non-condensing
Agency Approval	UL Listed/CSA Certified Complies with California Title 24 Energy Code Complies with FCC Regulations

ORDERING INFORMATION

SK901IE	SK901IN	SK901UN
PIR sensor+ microphonics,            Earth required	PIR sensor+ microphonics, Neutral required	Ultrasonics+ microphonics, Neutral required
