Specifications
Inverter AC/DC Square Wave TIG Welding Machine1. Set AC&DC arc welding in a body, gentle arc
2. use to welding aluminum
Inverter AC/DC Square Wave TIG Welding Machine ( TIG315ACDC)
A. Functions and features
1. Set AC&DC arc welding in a body, gentle arc, small noise
2. Good stiff current, easy to fill wire, beautiful forming
3. Built-in protective circuits, safely operation
4. ARC function can be used in welding various nonferrous metal stainless steel, alloy steel, carton steel and copper, etc.
5. DC function can be used in welding aluminum and aluminum alloy
B. Technical Parameters
ITEM MODEL |
TIG200ACDC |
TIG250ACDC |
TIG315ACDC |
Input power voltage /Frequency (V/HZ) |
Single Phase 220±15% 50/60 |
Three Phase 380±15% 50/60 |
Three Phase 380±15% 50/60 |
Rate input power capacity (KVA) |
4.6 |
6.4 |
9 |
Output current range (A) |
10-160 |
10-250 |
10-315 |
Rate output voltage (V) |
18 |
20 |
22.6 |
No-load voltage (V) |
56 |
56 |
60 |
Duty cycle (%) (25°C) |
60 |
60 |
60 |
Power factor (COSφ) |
0.93 |
0.93 |
0.93 |
Efficiency (%) |
85 |
85 |
85 |
Weight (KG) |
22 |
32 |
38 |
Overall dimension (mm) |
565×331×512 |
565×367×512 |
565×367×512 |
Insulation class |
F |
F |
F |
Protection class |
IP23 |
IP23 |
IP23 |
ARC-starting |
HF |
HF |
HF |
Pre-flow time (S) |
0-2 |
0-2 |
0-2 |
Down-slope time (S) |
0-5 |
0-5 |
0-5 |
Post-flow time (S) |
2-10 |
2-10 |
2-10 |
Suitable welding thickness (mm) |
0.3-8 |
0.3-8 |
0.3-8 |

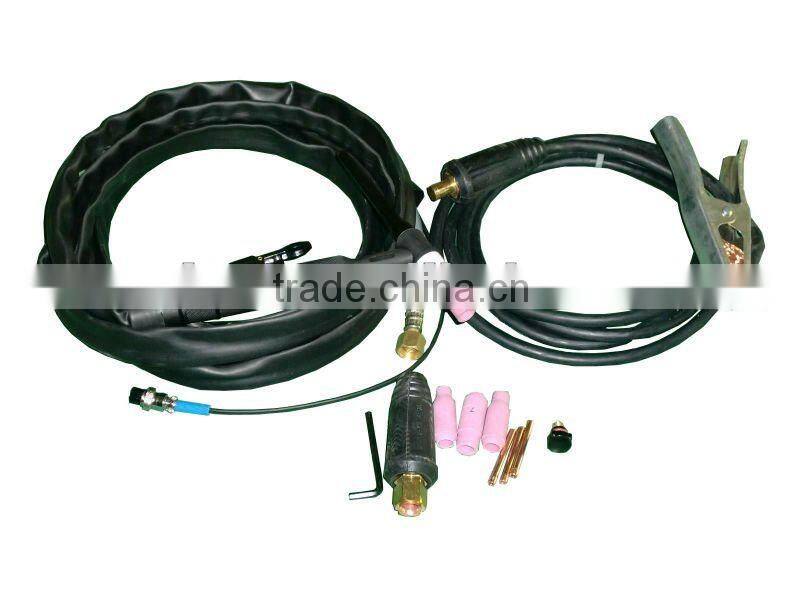

C. Accessories
D. Supply
1. OEM and ODMsevice offered, Machine Color
2. One Year Warranty.
3. Technical Support.
4. CE and CCC certificate
E. Strict Quality Control:
Our products are strictly tested 100% before delivery, and approved by CE. And our products are able to meet or exceed some of the industry's most rigid standards. We can ensure you will be satisfied with both performance and durability
F. After-sale Service:
If you have any problem about using the machine, feel free to contact us!
G. Production Line:
