Specifications
1.Portable DC Inverter IGBT ARC Machine ARC 250 MMA Welding.2.Advanced IGBT Technology.
3.High Duty Cycle.
4.Stable Quality.
Portable DC Inverter IGBT ARC Machine ARC 250 MMA Welding
A. Functions and Features
1. Made in the IGBT inverter technology with an inverter frequency up to 25KHZ, quick dynamic response in the inside electronic communication,
2. Well organized structure, convenient to maintenance and repairs
3. PMW Control, high quality and performance
4. Adapted in the IGBT Uni-Transistor Driving&Protection Technology, which enhances reliability and life cycle of the products
5. Built in protection circuit & malfunction display function, reliable and convenient to trouble shooting
6. Triple – prevention functions( Dust Prevention, Moisture-Prevention & Eroding Prevention)
7. Light, Small, High Efficiency and Less Noises
8. Digital Current and Voltage Display, Clear Reading
9. Ultra-nanometer materials Major Transformer
10. High duty cycle, over 60% at 40C degrees
11. Stable welding performance even at the voltage fluctuation range of 320V to 450V
12. Additional remote current control
13. Arc force adjustment control with a range from 0 to 100A
14. VRD function, Hot Arc Ignition Function with a preset hot arc current from 0 to 135A
15. Adaptable to different kinds of acid and basic electrodes
B. Technical Parameter
|
ITEM MODEL |
ARC 200 | ARC 225 | ARC 250 |
|
Input Vtage/Frequency (V/HZ) |
Single Phase 220±15% 50/60 |
Single Phase 220±15% 50/60 |
Single Phase 220±15% 50/60 |
Rated Input Power Capacity(KVA) |
9.4 |
10 |
11 |
Rated Input Current(A) |
43 |
45 |
50 |
Output Current Range(A) |
10-200 |
10-220 |
10-250 |
Rate Output (A/V) |
200/28 |
220/28.8 |
250/30 |
Duty Cycle (%) (25°C) |
60 |
60 |
60 |
No-load Voltage (V) |
67 |
76 |
76 |
Efficiency (%) |
85 |
85 |
85 |
Power Factor (COSφ) |
0.93 |
0.93 |
0.93 |
Weight (KG) |
5.2 |
5.2 |
5.8 |
Dimensions (mm) |
313*120*198 |
336*120*198 |
336*120*198 |
Insulation Class |
F |
F |
F |
Protection Class |
IP23 |
IP23 |
IP23 |
Diameter of Electrode (mm) |
1.6-3.2 |
1.6-3.2 |
1.6-4.0 |

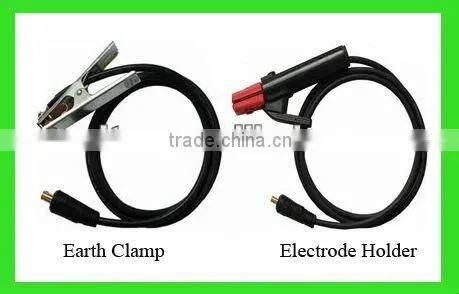

C. Standard Acceccories
D. Supply
1. OEM and ODM sevice offered.
2. One Year Warranty.
3. Technical Support.
4. CE,CCC and ISO9001:2000 available.
E. Strict Quality Control
1.Our products are strictly tested 100% before delivery, CCC,CE and ISO9001:2000 got approved. 2.our products are able to meet or exceed some of the industry's most rigid standards. 3.We can ensure that you will be satisfied with both performance and durability.
F. After-sale Service
1. 1.5% Spare Parts is available for Repairing and Maintaining duirng machines' selling.
2. Our Technician or engineer would be appointed to asist you settle down the problem you can solve.
3.The professional Vedio can be available for training and repairing.

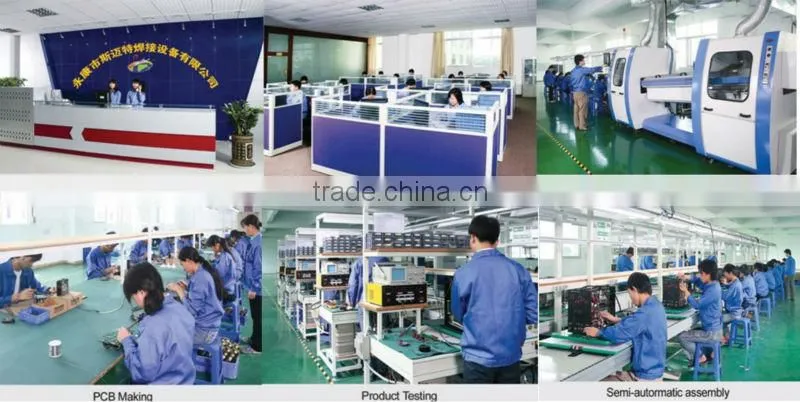

G. Company BackGround:

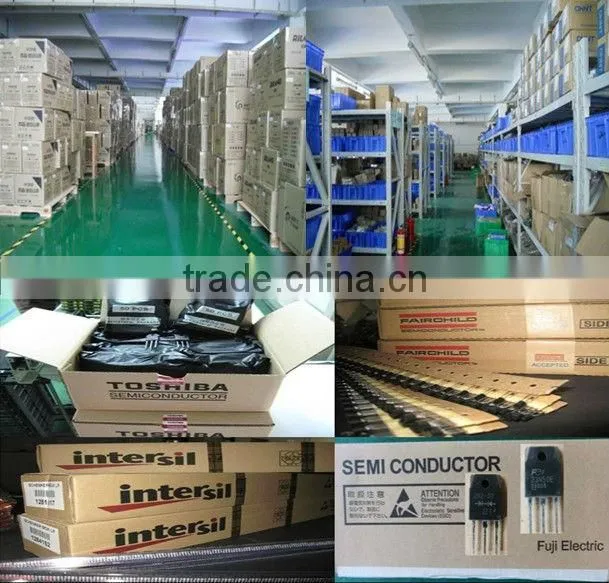

H. Company Warehouse:

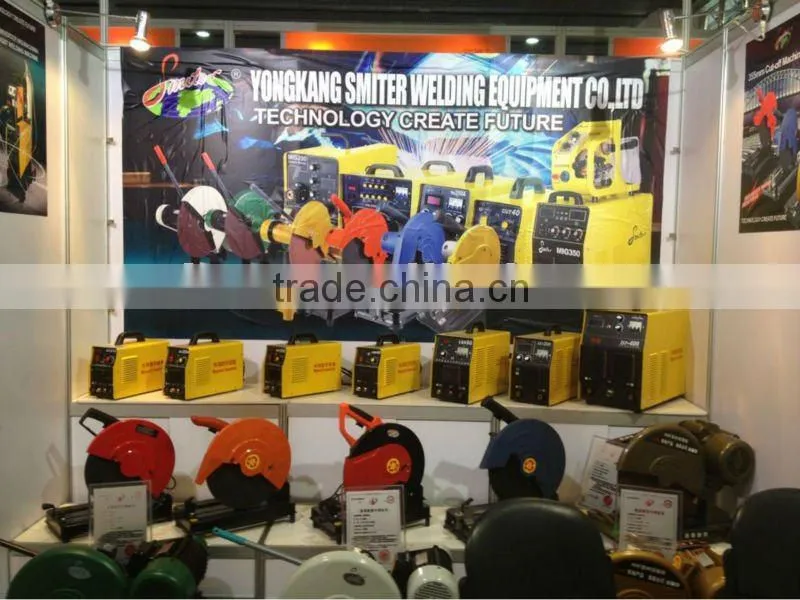

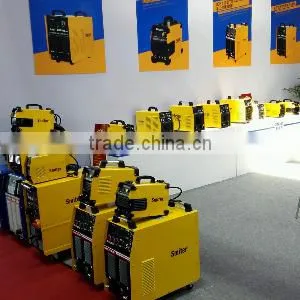

I. International Fairs:
1.Yongkang Hardware Fair
2. Canton Fair
3. Essen Fair:

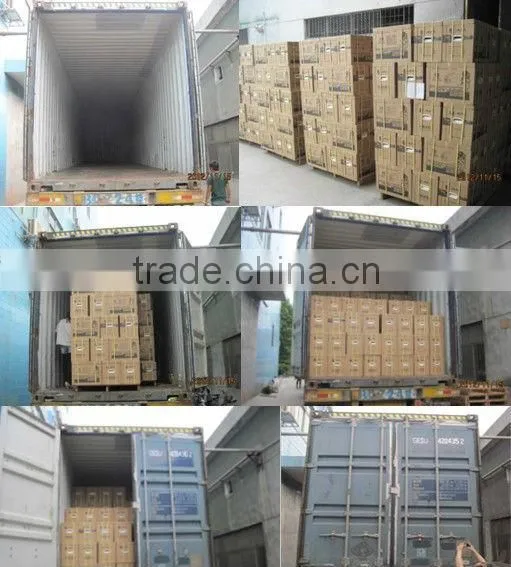

J. Container Loading
K. Logistics Services
