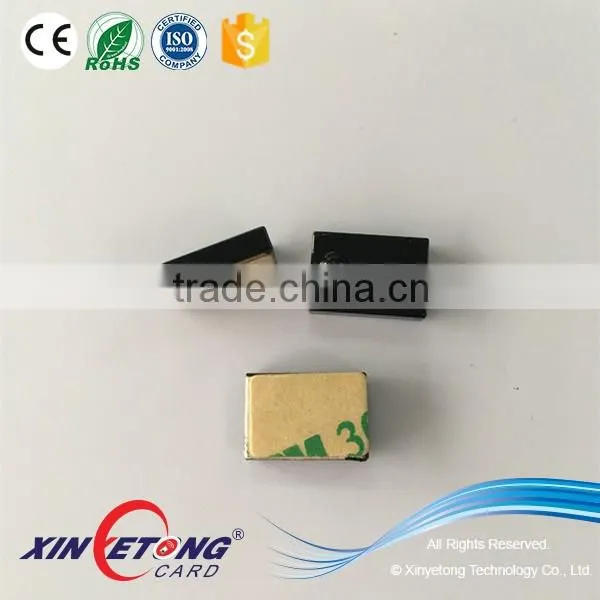

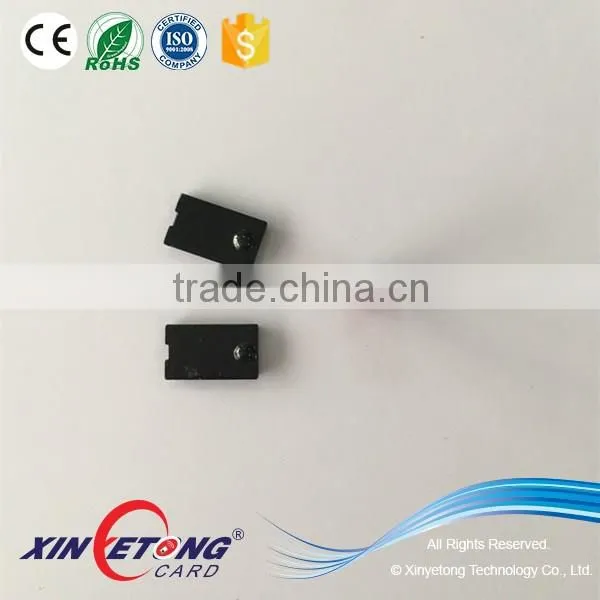

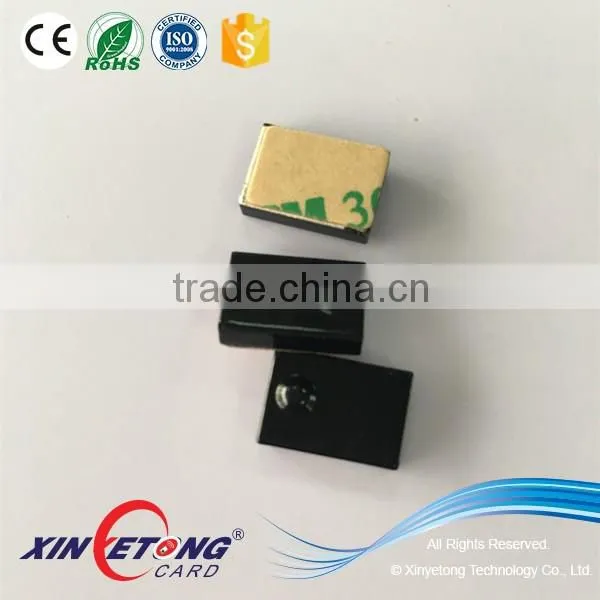

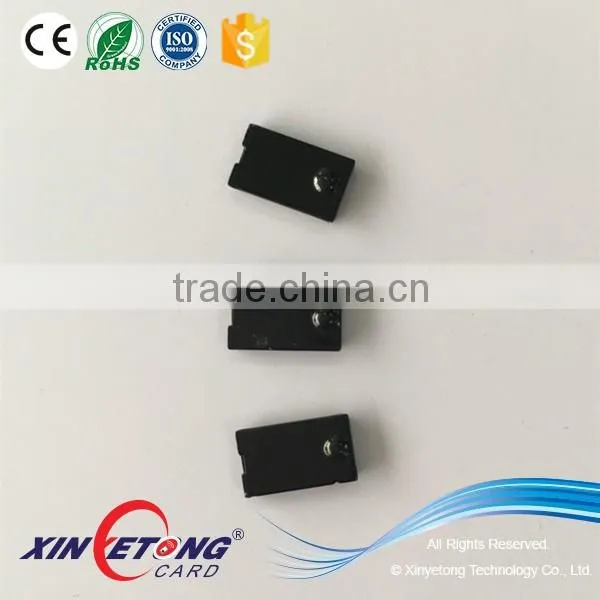

16x20mm Small size Temperature Resistance RFID Metal Tag
RFID tag is an ID system that uses small radio frequency identification devices for identification and tracking purposes ;
RFID tag system includes the tag itself, a read/write device, and a host system application for data collection, processing, and transmission ;
ITEM |
PARAMETER |
Device type |
Class 1 Generation 2 passive UHF RFID transponder |
Air interface protocol |
UHF EPC Global Class1 Gen2, ISO 18000-6C |
User Memory |
EPC: 96bits |
Extended memory: 512bits | |
Operational frequency |
865-869 MHz (EU), 902-928MHz (US),952-955 MHz (JPN) |
Encapsulation material |
Impact Resistant PCB |
Applicable surface materials |
Metal surfaces |
Weight |
2.5g |
Dimensions |
16 x 20 x 1.2mm |
Read Range |
up to 1.6m /5.25ft with Hand-held Reader and3.5m/11.48ft with Fixer Reader |
Operating Temperature |
-30~85℃ / -22~185℉ |
Storage Temperature |
-40~150℃ / -40~302℉ |
EEPROM Programming Cycles |
10,000 cycle |
IP Classification |
IP67 - Complete protection against dust - Protection against continuous immersion in water (tested for 5 hours in 1 m [3.3 ft] depth |
Mounting |
Adhesive |
Remarks |
Logo Printing, Barcode Engraving |
Color |
Black |
===============================================================================
If you're interested in promoting your business or enhancing the service you provide to your customers, whether you need one hundred pieces or a million, Xinyetong is here to help.
