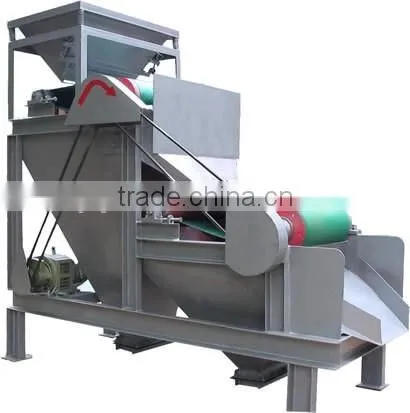

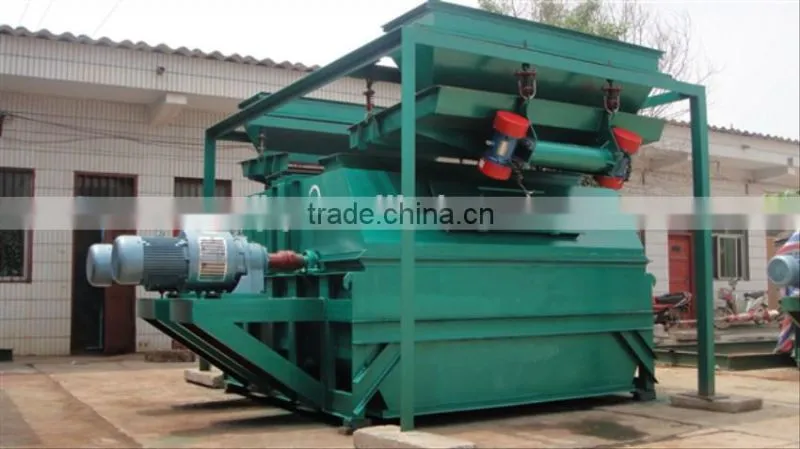

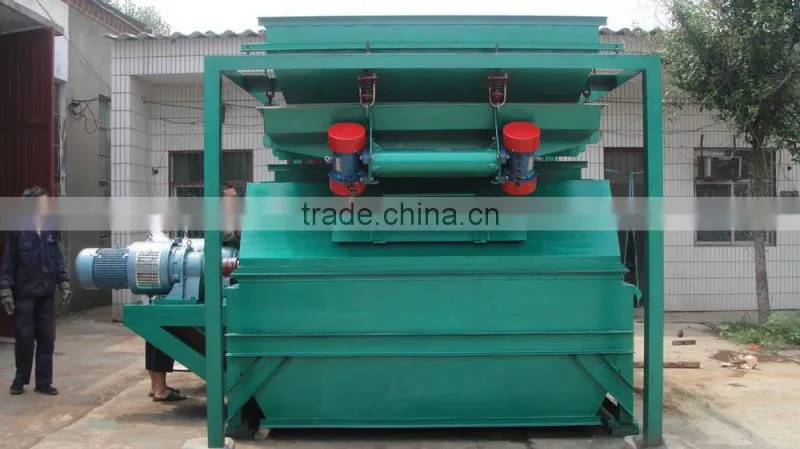

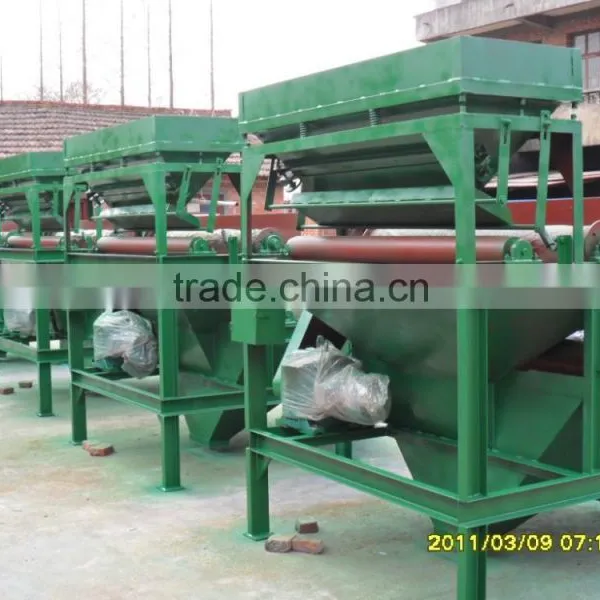

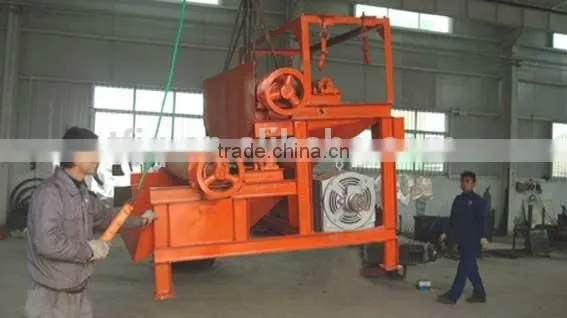

Dry Magnetic Ore Separator
Description of Magnetic Separator
Magnetic Separator is used to separate magnetite, hematite, limonite, pyrrhotite, ilmenite smaller than 3 mm in wet way. It is also used to separate iron in coal, nonmetallic ore, construction industry, etc. We can provide magnetic separators of forward flow, semi counter flow and counter flow types according to customers’ request.
Working Principle of Magnetic separator
Slurry enters chute through ore tank firstly, and then separating zone by waterpower. Mineral with strong magnetism is absorbed on the barrel surface, sent to concentrate discharging zone and discharged into concentrate box by water effect. Gangue and ore with weak magnetism are discharged into a pipe in opposite direction of barrel.
Technical Parameters
Type and spcification |
Type |
|||||
GYC-60B |
GYC-60B-I |
GYC-2×60 |
GYC-3×60 |
GYC-3×80 |
GYC-4×80 |
|
|
Cylinderdia×length (mm) |
ø320×600 |
ø320×600 |
ø320×600 |
ø320×600 |
ø404×800 |
ø404×800 |
|
Magnetic induction (oe) |
3500 |
1100 |
3500 |
110-3000-3500 |
110-3000-3500 |
110-3000-5000 |
|
Cylinder quantity (per) |
1 |
1 |
2 |
3 |
3 |
4 |
|
Cylinder speed (r/min) |
66.47.33 |
66.47.33 |
66.47.33 |
34.5-172 (Adjustable) |
54.5-172 (Adjustable) |
54.5-172 (Adjustable) |
|
Imput size (mm) |
0.05-25 |
0.063-25 |
0.05-25 |
0-8 |
0-8 |
0-8 |
Motor |
Y801-4 |
Y801-4 |
Y801-4 |
ZBW-1.5 |
ZBW-1.5 |
ZBW-1.5 |
|
Power (kw) |
0.75 |
0.75 |
0.75 |
1.1 |
1.5 |
2.2 |
Capacity(t/h) |
0.5-2.5 |
0.1-3 |
0.5-2.5 |
0.8-2.5 |
1.5-2.5 |
1.5-2.5 |
|
Weight (t) |
0.25 |
0.65 |
0.5 |
1.2 |
1.5 |
2.4 |
Application |
Select |
Roughing |
Select |
Shaking supply |
Shaking supply |
Select |
Henan Teng Fei Machine Manufacturing Co., Ltd. is a collection of scientific research, development, production marketing for the integration of manufacturing enterprise; The company execute principles “development is a competition philosophy” and take “efficient, pragmatic, cooperation, innovation “as beliefs.
Teng Fei Group is a manufacturer of construction machine and mine machine, with more than 15 years experience, mainly produce concrete batching plant, AAC block line, stabilized soil mixing plant, dry mortar production line, cement production line, concrete mixer, concrete pump ,concrete truck, cement silo, crusher, ball mill, raymond mill, sand making line and so on.
If you are interested in our Dry Magnetic Ore Separator , please kindly email us, we will give
you factory price with full specification..
